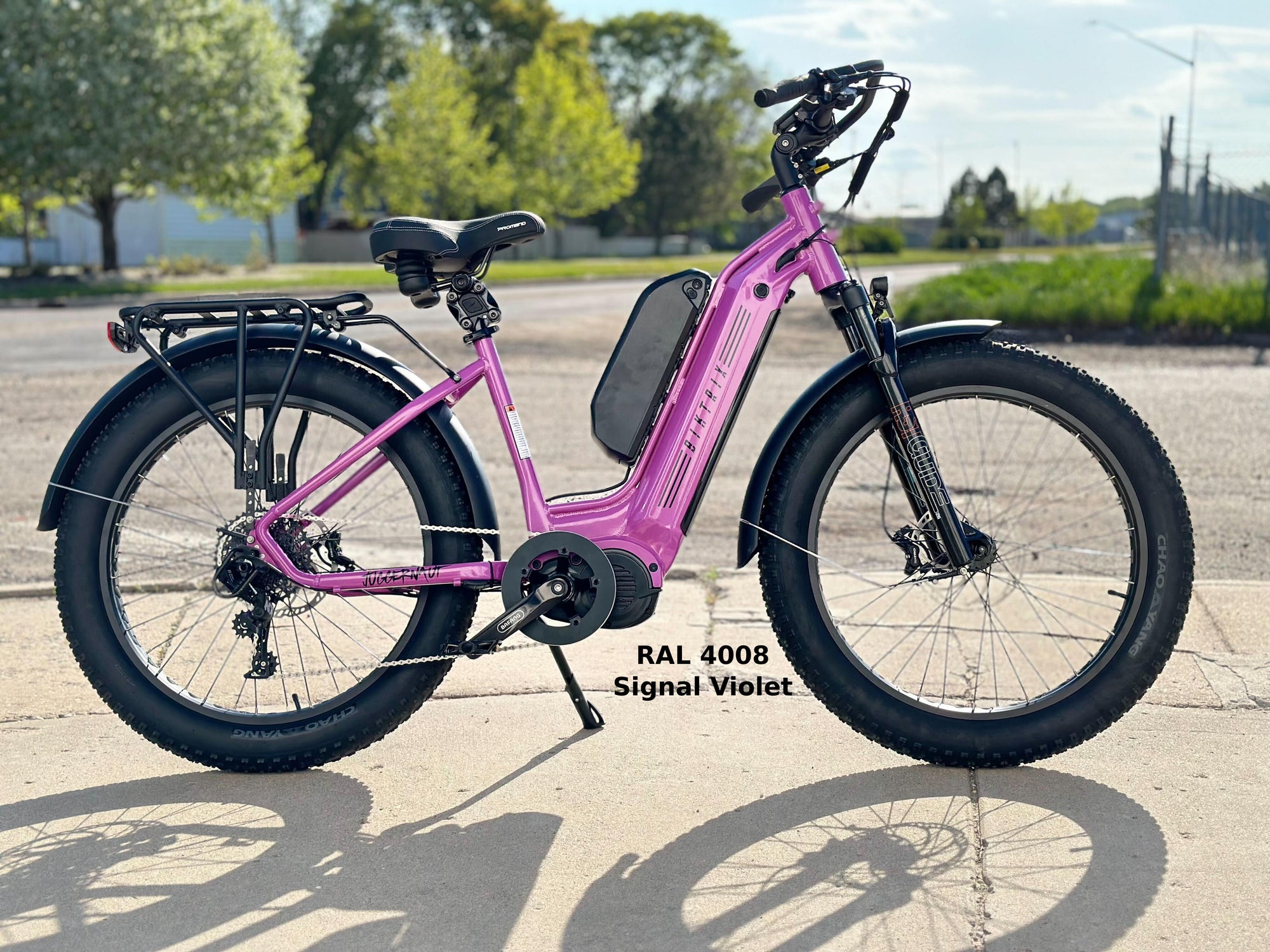

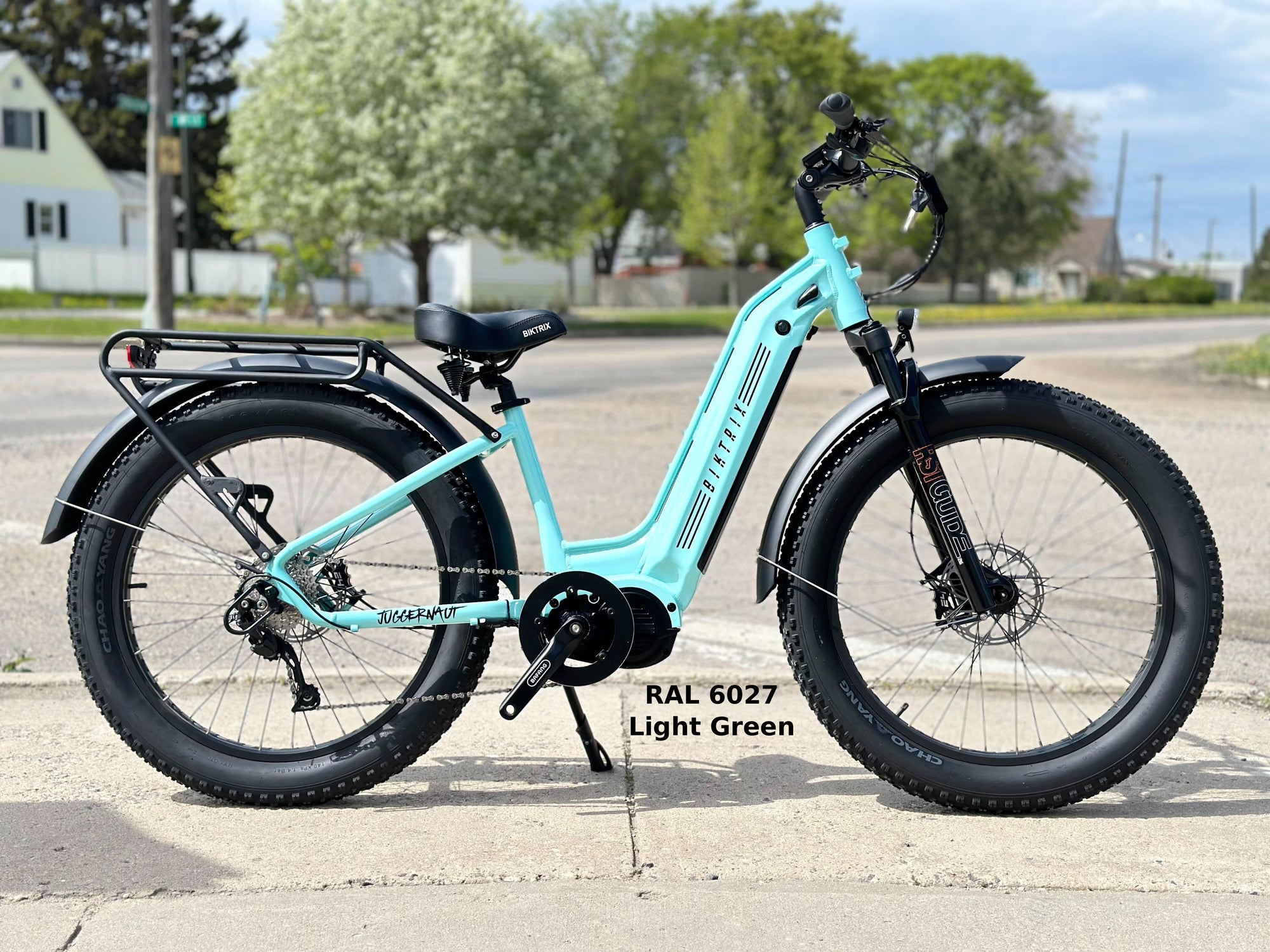

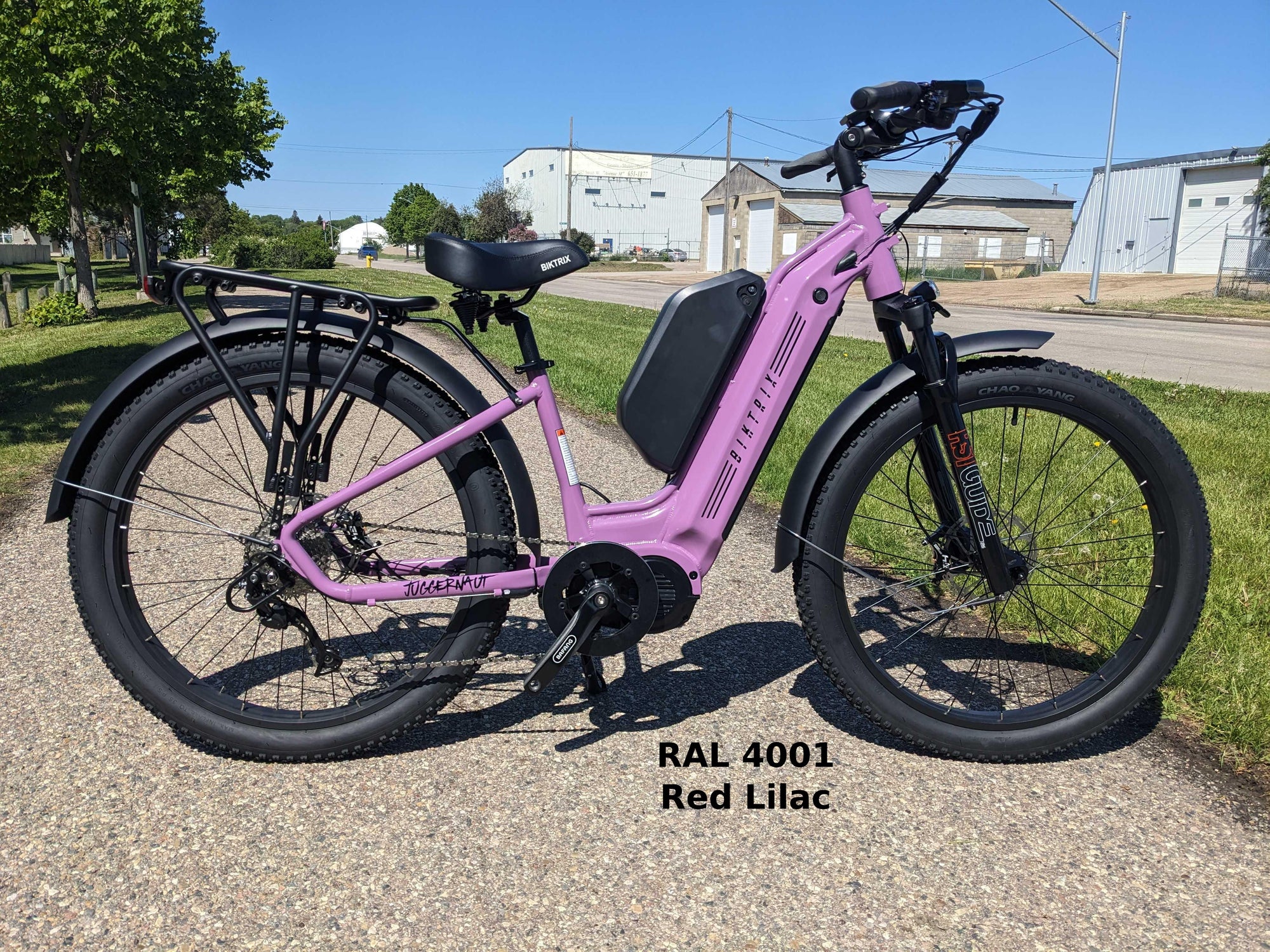

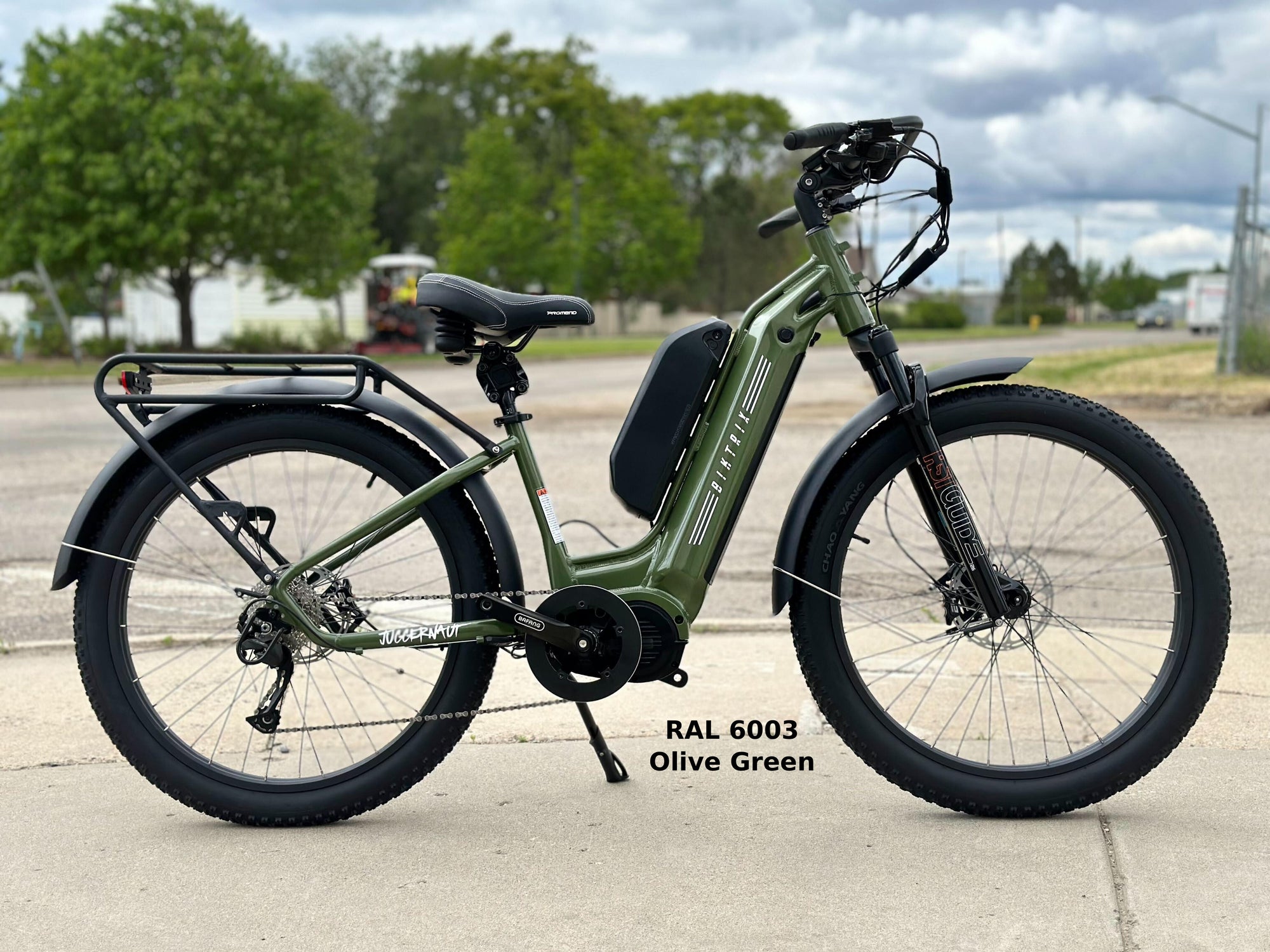

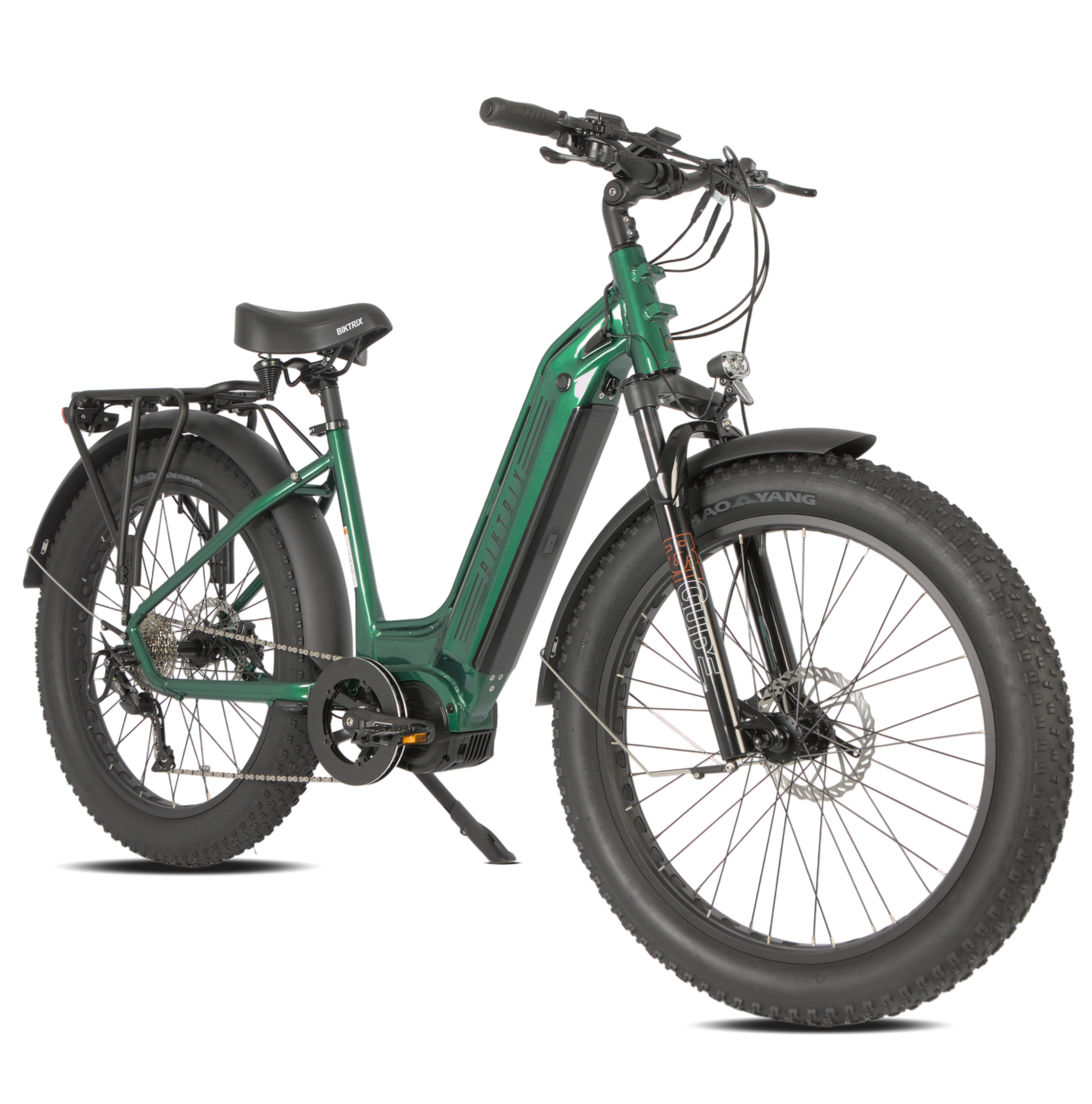

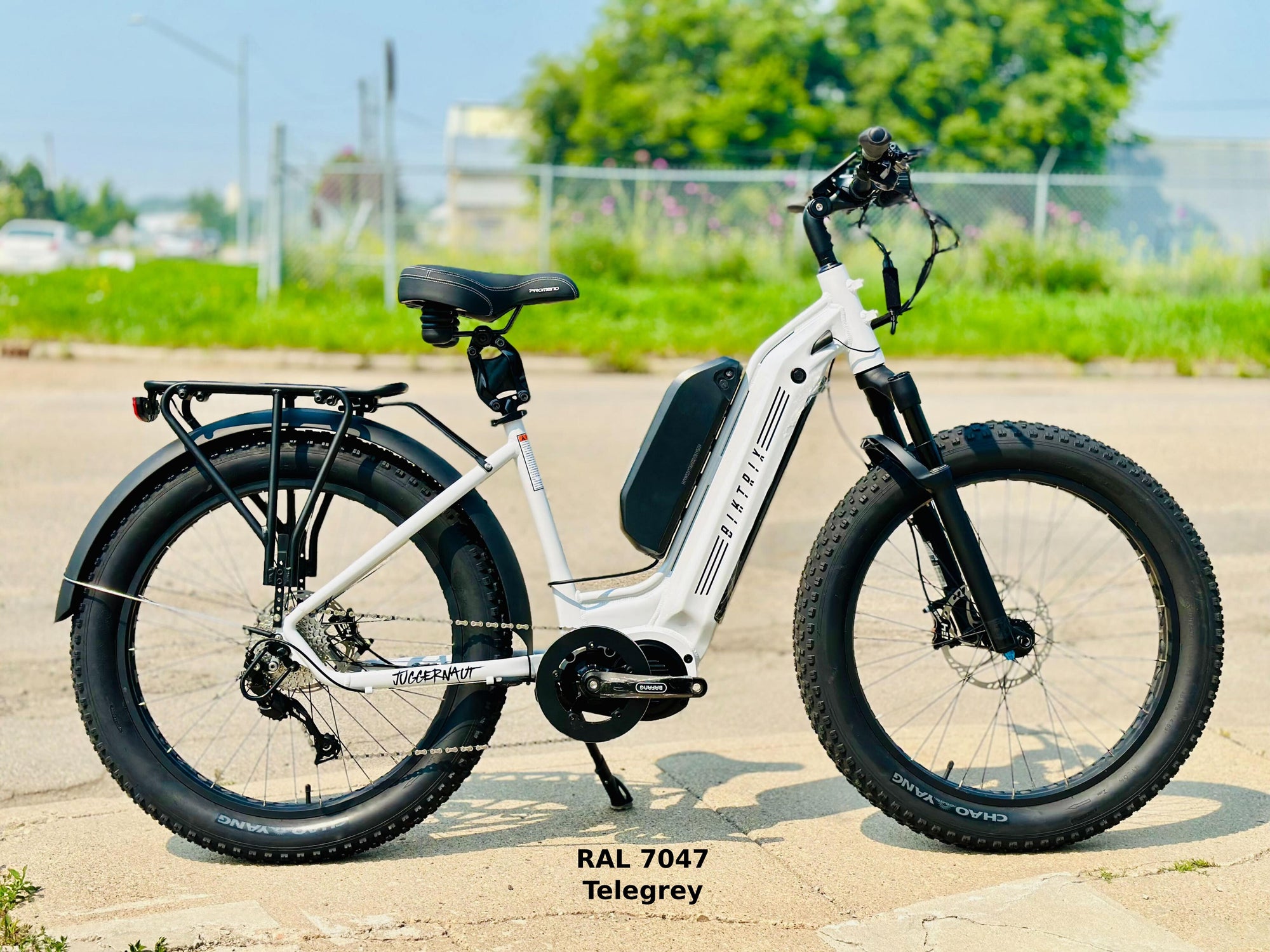

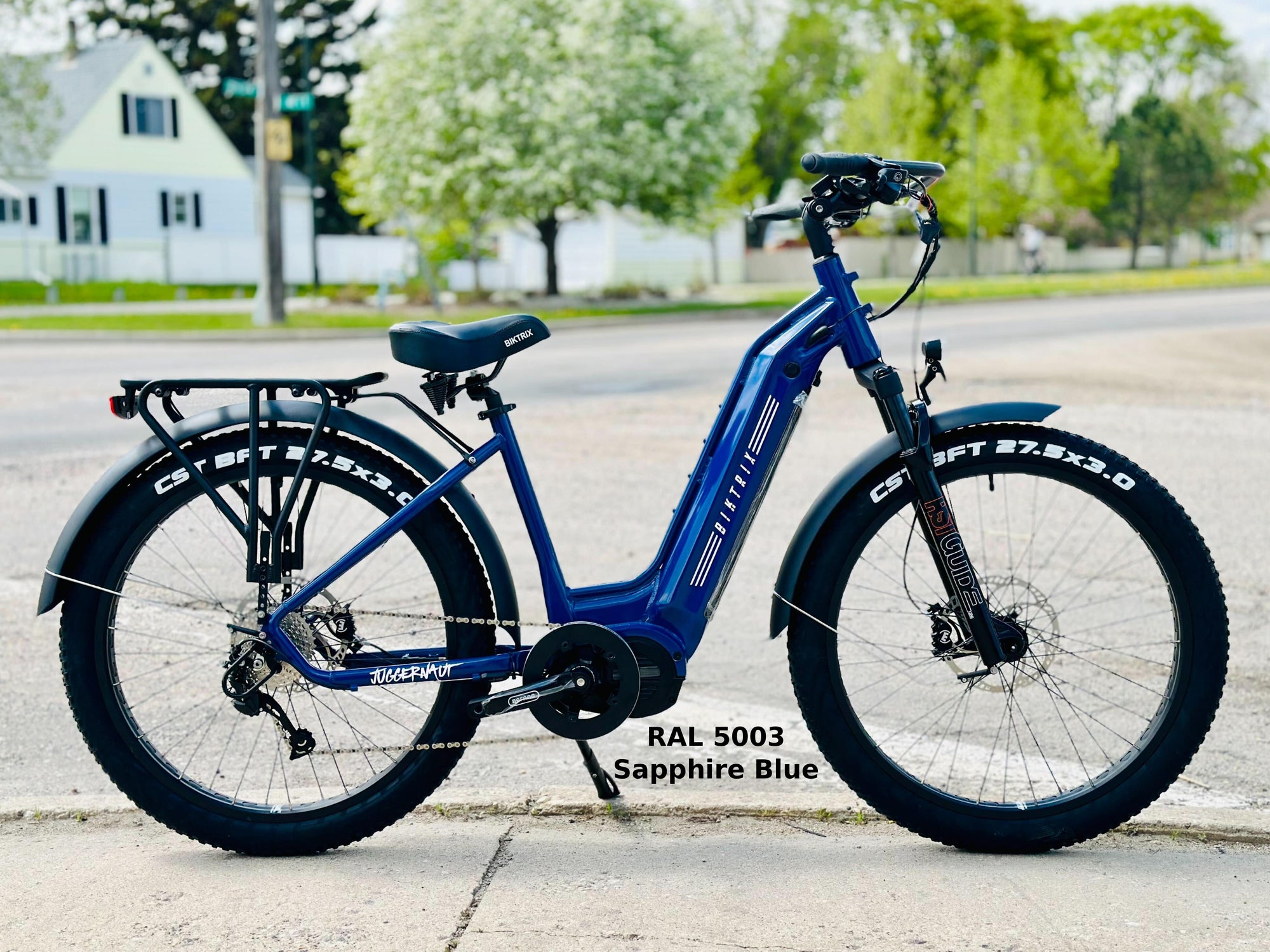

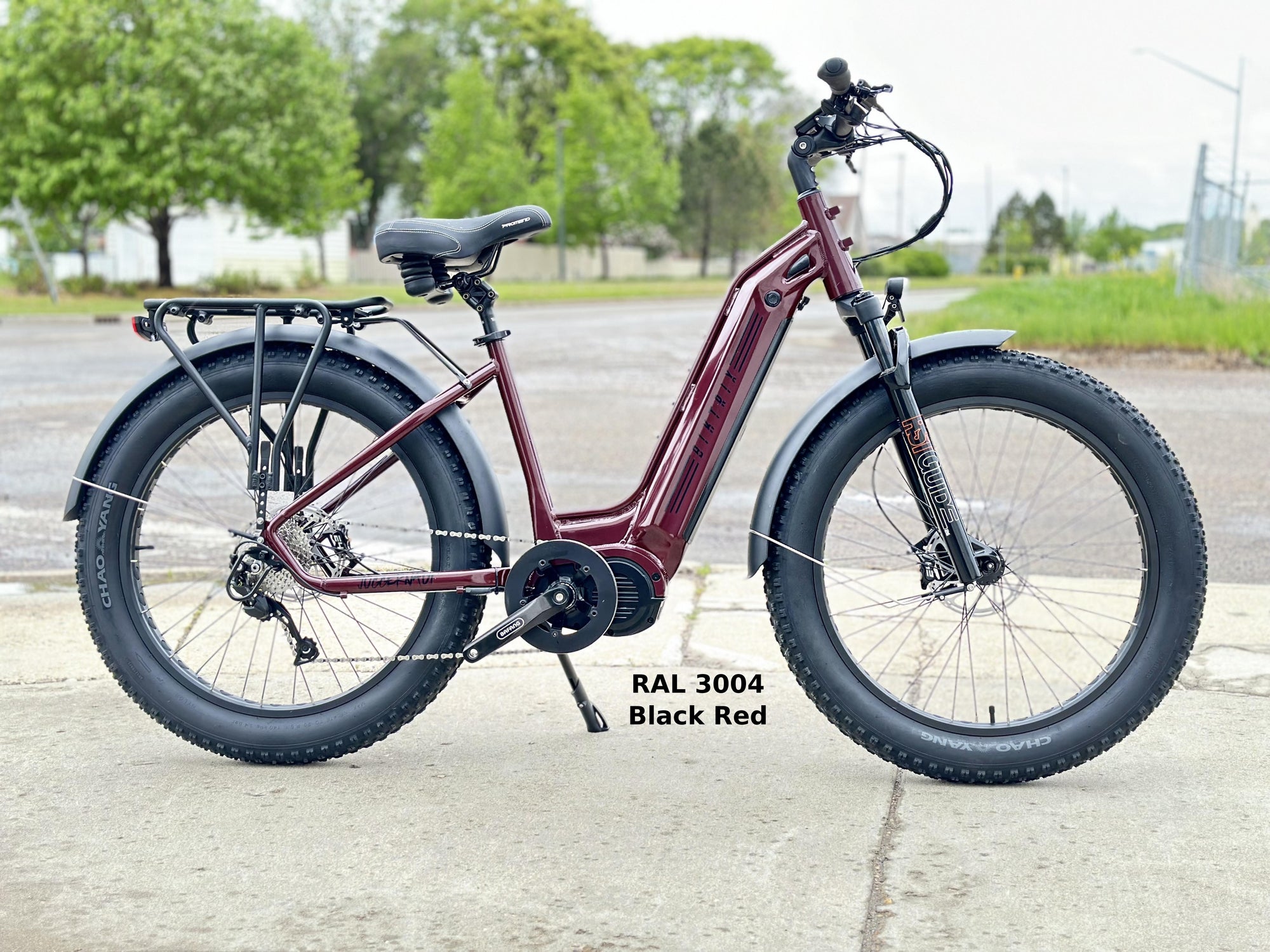

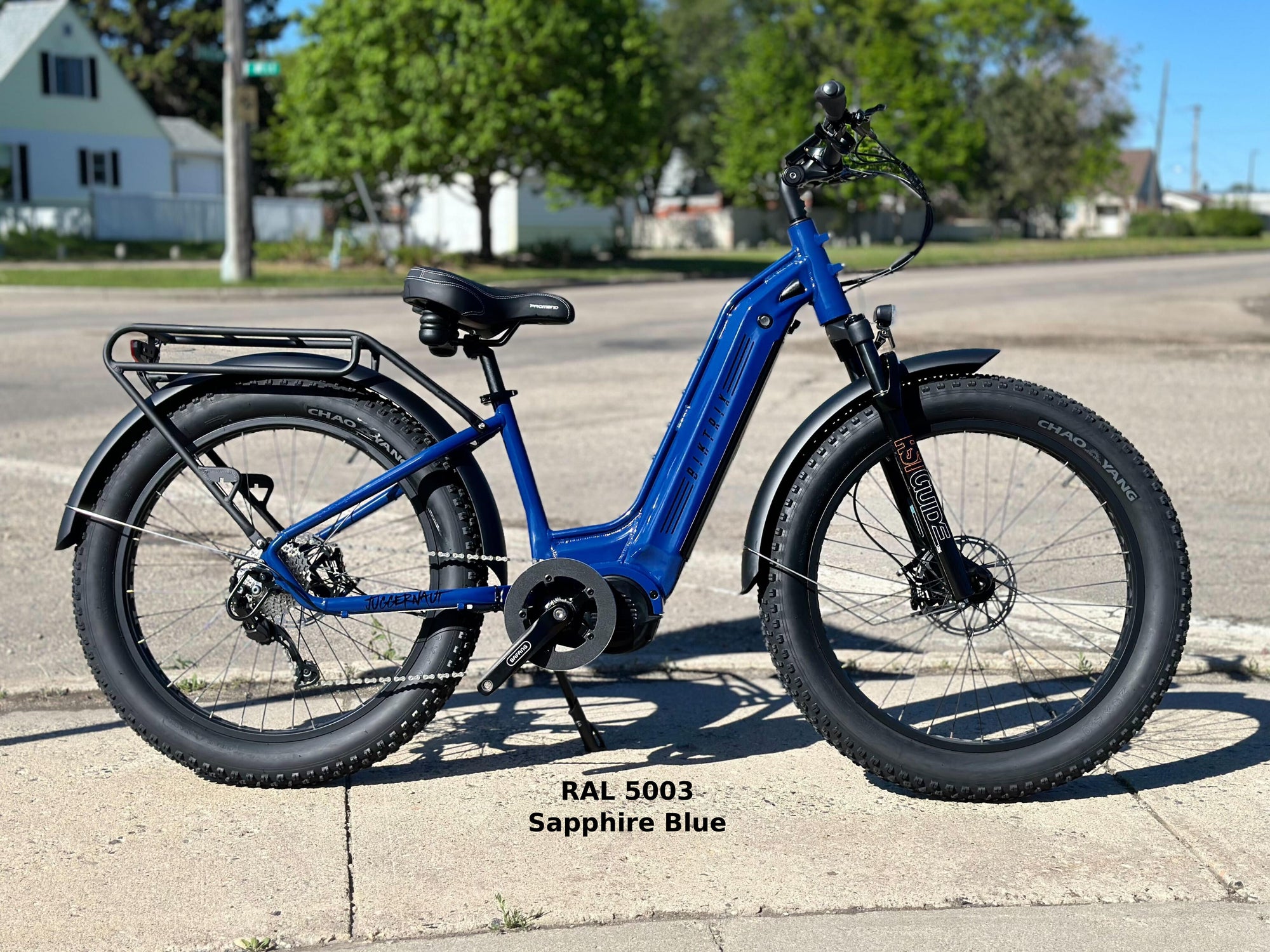

Juggernaut Ultra Duo 4 Step-Thru

Sale price $2,749.00 Regular price$4,499.00
Save $1,750 New

🚨 Get a FREE Range Extender Battery (worth $499) by adding it to your cart and applying the code EXTRA at checkout. Offer for a limited time only.

Our signature mix of comfort and control with the powerhouse Ultra motor

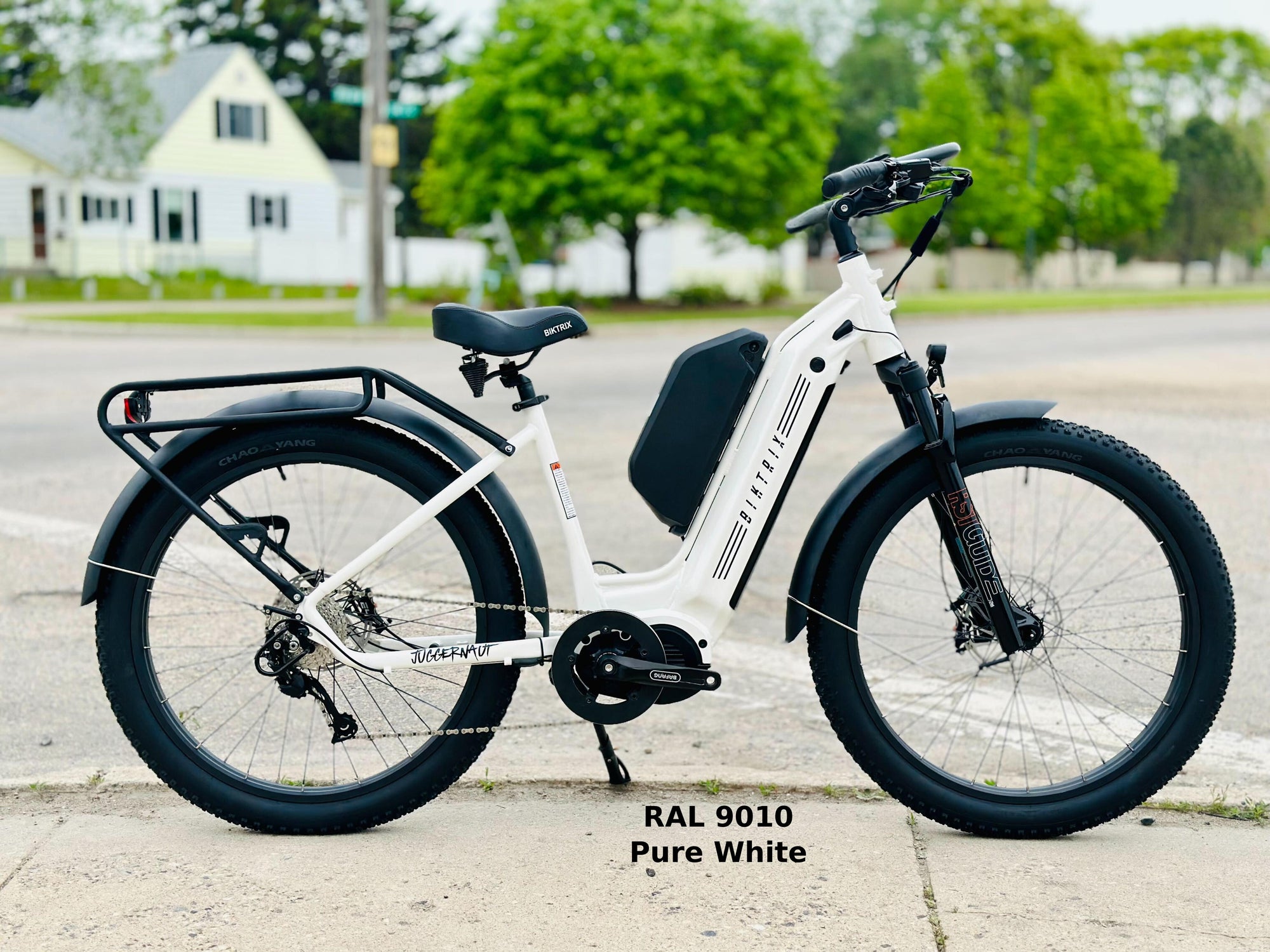

Pearl White
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery.
Upgrades
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 100mm/4" to 150mm/6"
Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

**The price is discounted from the regular price of $300
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

***Tektro and Magura upgrades come with a brake rotor upgrade from 160mm to 203mm
Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Accessories
Warranty
BiktrixCare+


Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Shipping: Leaves within 6-7 business days
Sale price $2,749.00 Regular price$4,499.00
Lifetime Support
14 Days Return
Custom Built
customer-service-img
Want to see the bike live?

Book a live showroom demonstration and see the bike live today!

90+

Miles Range

160Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

Welcome To The Big Leagues.

The Ultra Duo sits at the top of the Duo range, so naturally, it boasts one of the most powerful motor systems available today. The Bafang Ultra M620 mid-drive motor is loaded with 1500W of peak power and 160Nm of torque. Pair that with the 11-speed drivetrain and you'll be nearly unstoppable.

Ultra Power. Greater Features.

Mid-Drive Motor

The Bafang Ultra M620 mid-drive motor features 1000 watts of power and 160Nm of torque. Span cities, climb hills and explore all the places you want to go with ease.

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Thumb Throttle & Control Pad

With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

Suspension Fork

The RST Guide spring suspension fork provides 75mm of travel with pre-load and lockout adjustability.

Drivetrain

From climbing hills top holding maximum speed on flats, the Shimano Alivio 9 Speed drivetrain has you covered.

Hydraulic Disk Brakes

When it’s so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Optional Range Extender

Multiple range-extender battery options can expand your eBike’s range all the way to 160 kilometres.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

Technical Specifications

frame

6061 aluminum

front hub

135mm 36h

seat post

28.6mm

fork

Rst guide w/75mm travel, lockout & preload

front axle

5mm qr

seat post clamp

Qr

headset

Threadless 1-1/2" 1-1/8" tapered

rear hub

190mm 36h

motor

1000w bafang ultra m620

shifter rear

Shimano alivio 9 speed trigger

rear axle

5mm qr

battery sizes

Total capacity of 52v 36.5ah 1898wh: 52v 17.5ah 910wh (internal battery) + up to 52v 19ah 988wh (external range extender battery)

rear derailleur

Shimano alivio 9 speed

rims

26" black with round cutouts / 27.5" black solid

display

Dpc-18

cassette

9 speed 11-34t cassette

tire sizes

26x4", 27.5x3"

lights

Integrated headlight, integrated taillight

chain

Kmc e9s 124 links

handlebar

700mm wide, 50mm rise w/31.8mm clamp

assist type

Torque + cadence

crank set

44t chainring w/ 170mm arms

stem

Adjustable stem

assist levels

0-5

bottom bracket

Bafang isis

grips

Slide-on comfort grips

throttle

Thumb throttle

brakes

Biktrix dual piston hydraulic w/180mm rotors

saddle

Wide spring supported comfort saddle

other

Front and rear fenders, kickstand, rear rack

brake levers

Biktrix adjustable w/ integrated brake cutoffs

Size & Fittings

1 Effective Top Tube Length 560mm 22in
2 Seat Tube Length (Classic Bike Size) 420mm 16.5in
3 Reach 520mm 20.5in
4 Stack 500mm 19.7in
5 Chainstay Length 480mm 18.9in
6 Standover Height 430mm 16.9in
7 Head Angle 68° -
8 Seat Angle 71° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 530mm 20.9in
11 Front Center 710mm 28in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 30mm 1.2in
14 Wheelbase 1240mm 48.8in
15 Total Length 2000mm 78.7in
16 Max Seat Height 1000mm 39.4in
17 Min Seat Height 830mm 32.7in
18 Handlebar Height 1100mm 43.3in
19 Weight (Without Battery) 33.5kg 73.9lb
1 Effective Top Tube Length 560mm 22in
2 Seat Tube Length (Classic Bike Size) 460mm 18.1in
3 Reach 560mm 22in
4 Stack 520mm 20.5in
5 Chainstay Length 520mm 20.5in
6 Standover Height 450mm 17.7in
7 Head Angle 68° -
8 Seat Angle 71° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 530mm 20.9in
11 Front Center 730mm 28.7in
12 BB (Bottom Bracket) Drop 50mm 2in
13 Fork Offset 30mm 1.2in
14 Wheelbase 1240mm 48.8in
15 Total Length 2000mm 78.7in
16 Max Seat Height 1000mm 39.4in
17 Min Seat Height 880mm 34.6in
18 Handlebar Height 1160mm 45.7in
19 Weight (Without Battery) 34kg 75lb
