750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 60mi/95km Range

330lb

Load Capacity

Cadence Sensor

Smooth & Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist
Save $400

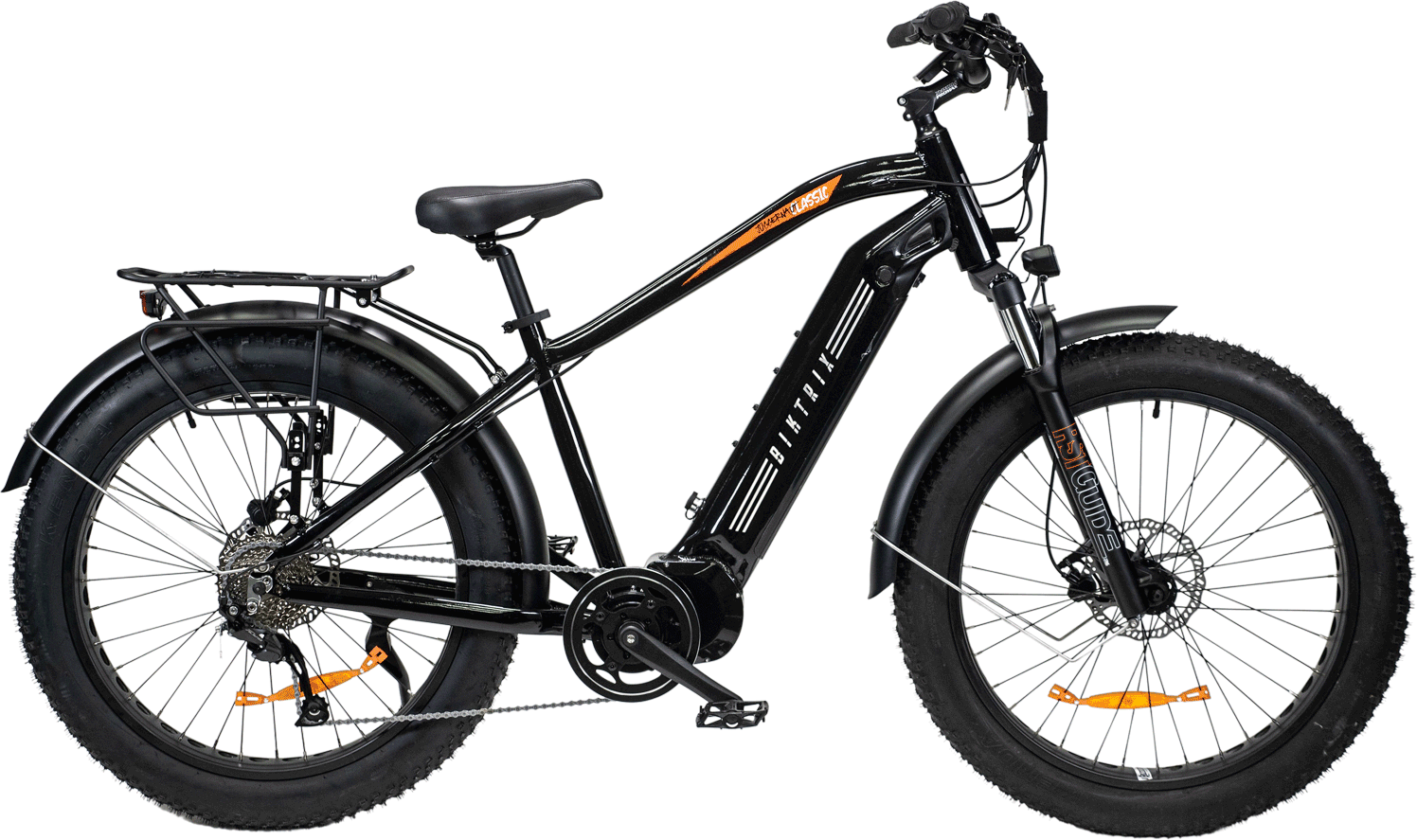

Juggernaut Classic Duo Step-Over

$2,299.00 USD
Estimated to be shipped in 6-7 business days

What frame will fit me?

×

The best way to ensure a fit is to check this measurement on your existing bike’s normal riding seat position;

If this measurement is equal to or MORE than the minimum seat height of the selected model then the selected frame size will work, however, if it is LESS you need to select a smaller frame.



If you do not have a bike then measure your inseam like this;

For most riders, the frame will work if their inseam is at least 2 inches less than the minimum seat height in inches. For example, a rider with an inseam of 28 inches can fit on a bike with a minimum seat height of 30 inches (30 - 2 = 28).

If you want to have a flat foot on the ground while on a full stop then your inseam must be equal to or greater than the minimum seat height listed for that frame size.


If you are selecting a step-over frame, ensure that the standover height listed is less than your inseam size.



    When in doubt, pick the smaller frame. You can always raise the seat up higher.

    If you need help with this, feel free to send us a note.
    Copper

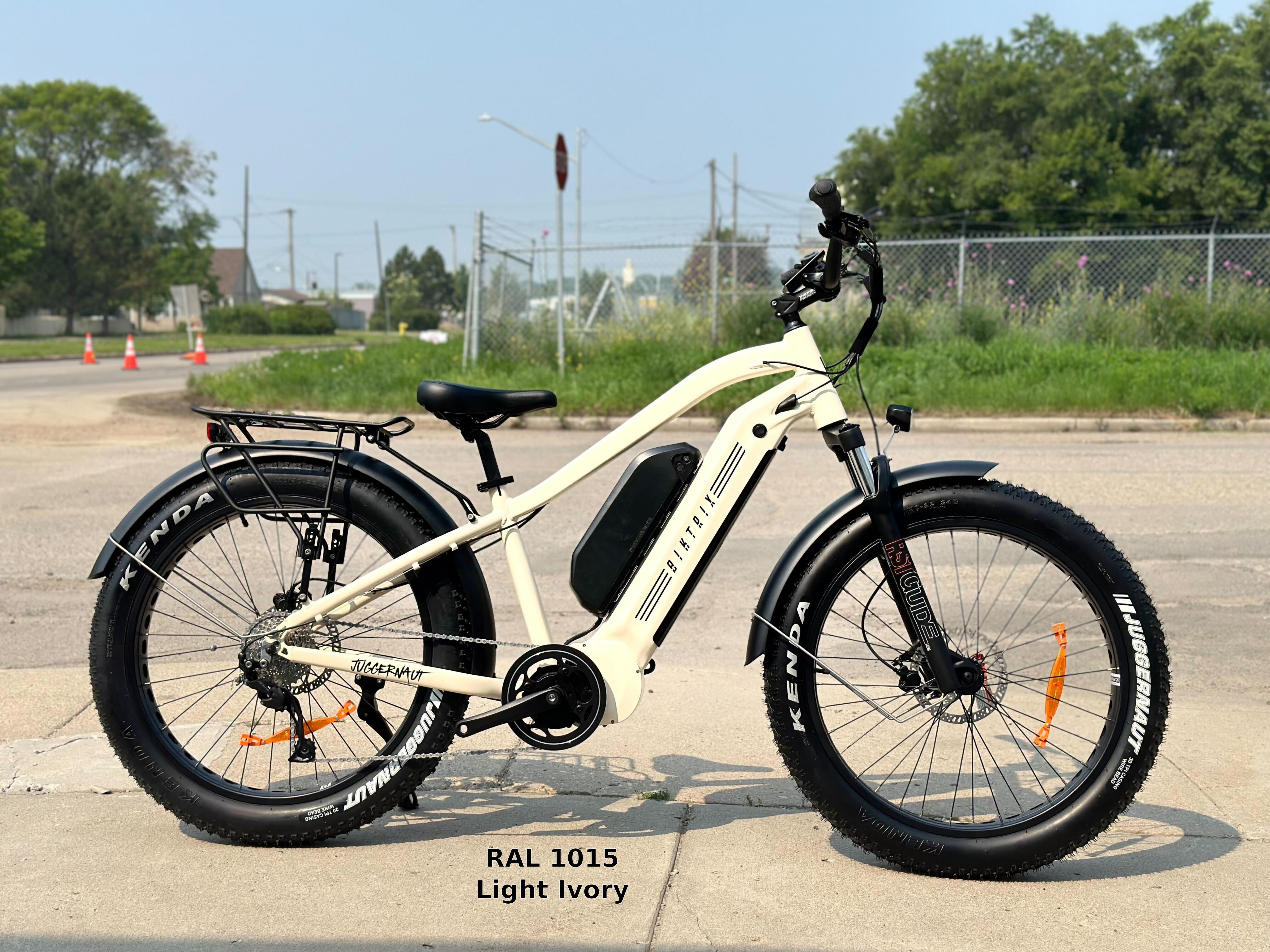

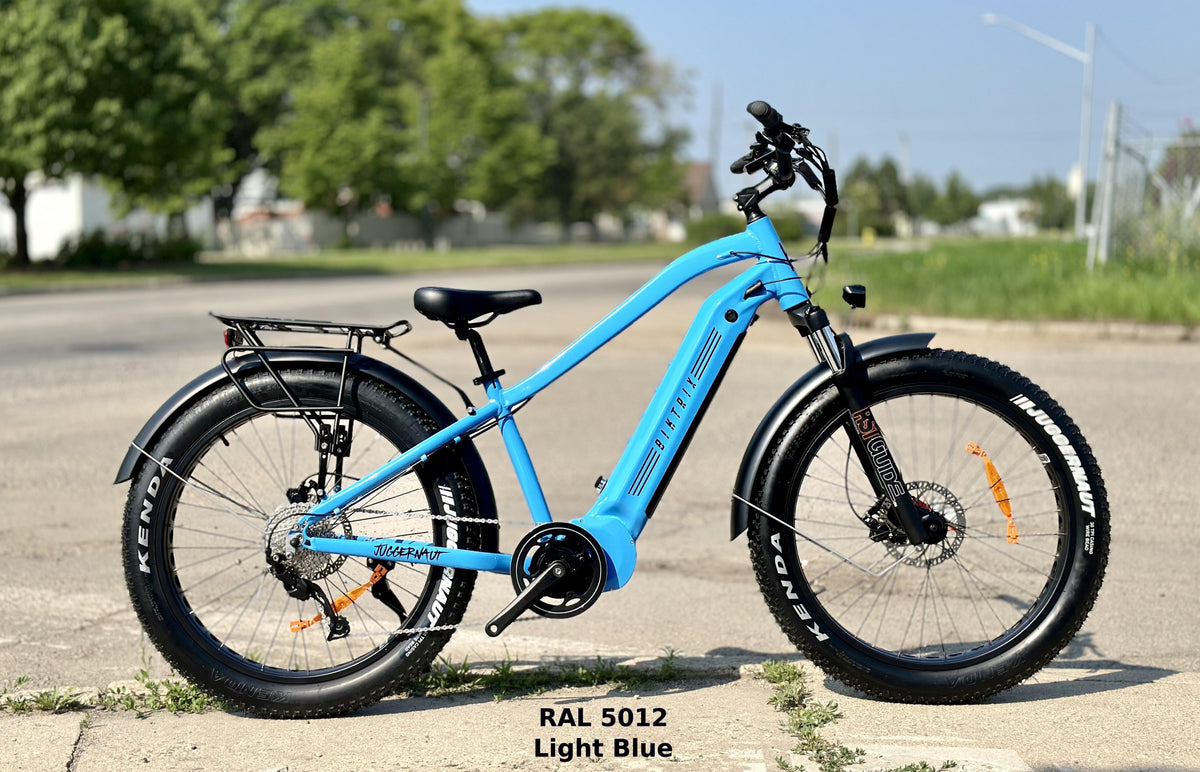

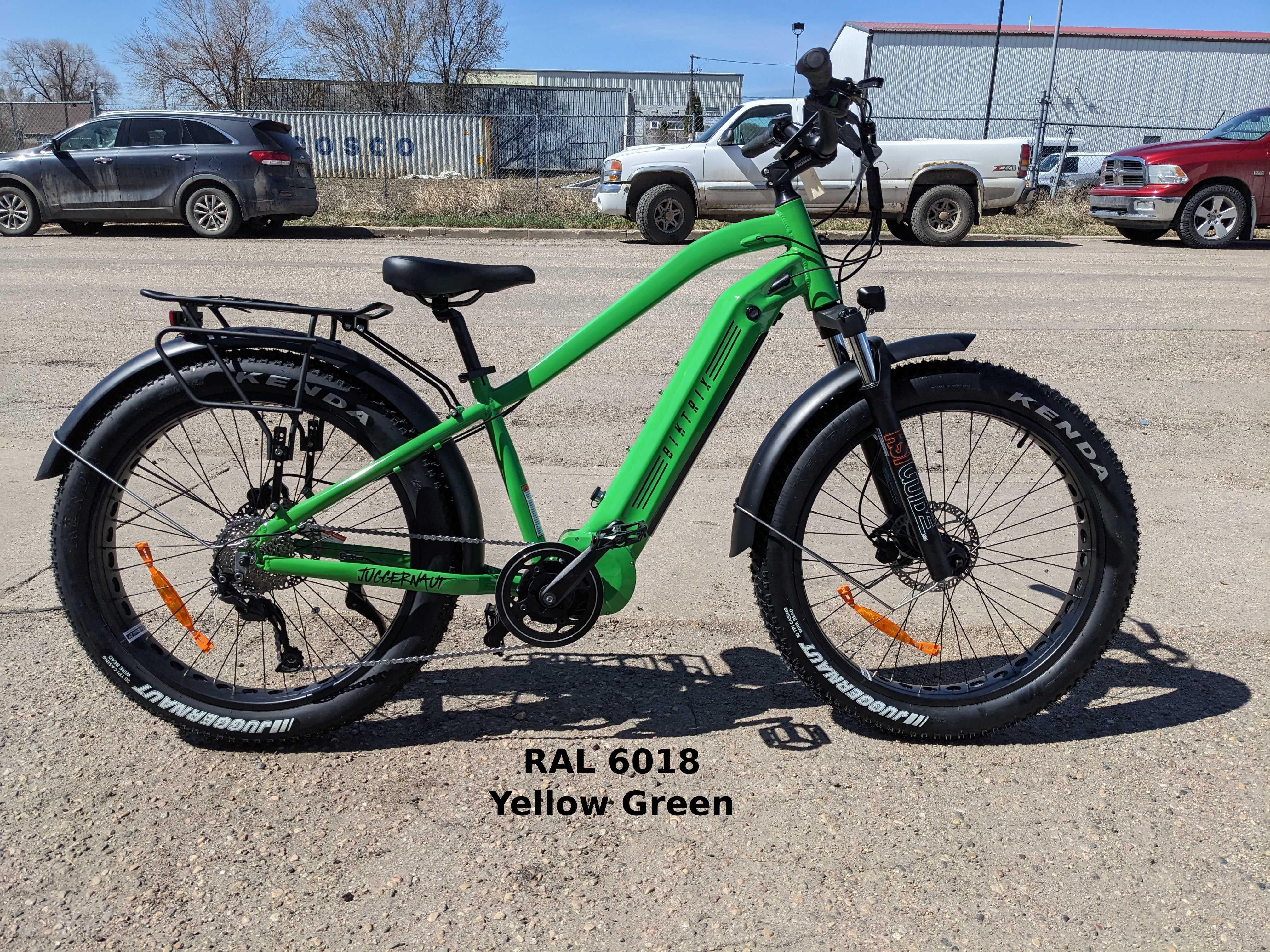

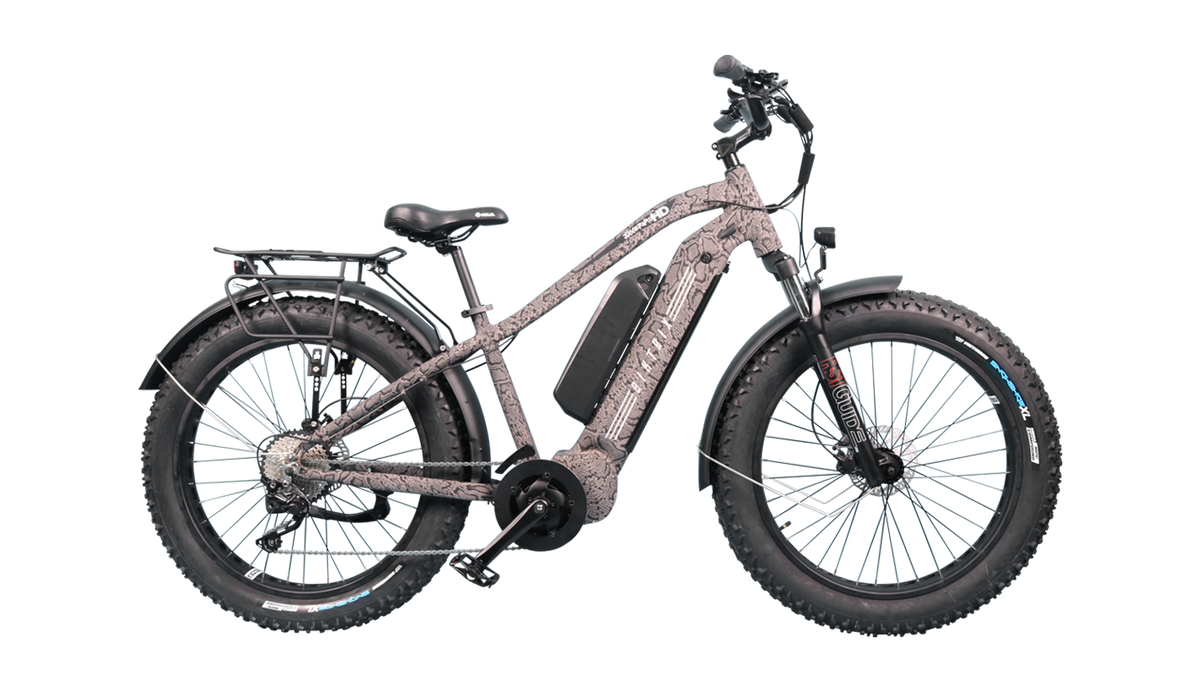

    Pick Your Custom Powder Coat Color

    ×
    **Decals on finished product may differ between Black and White based on Availablity.
    Save Cancel

    What wheels should I choose?

    ×

    Wheel Diameter (Height):

    • 20" / 24" - These wheels offer a lower stance for our shorter customers to allow a more comfortable fit and ride.
    • 26" - A great choice for most riders offering a more traditional look.
    • 27" / 29” - Our tallest tire options for our tallest customers.

    Tire Width:

    • 52c / 2.125" / 2.2" (MTB) - These tires offer the lowest rolling resistance and best mimic a "Traditional" tire size. They are great for paved trails and commuting, but are not suggested for loose terrain.
    • 3" (MTB+) - A versatile choice for riders who want great performance on both trails and commutes (recommended for ice/gravel).
    • 4" - Fat tires offer great All-Season performance with a focus on stability (recommended for Snow/Sand).
    • 4.8" - The widest tire we offer. Great for off-road and backwood adventures. These tires have lots of tread for extra "bite", extra cushion for riding on rough ground, and added stability while riding on softer terrain (recommended for all-terrain).

    Tread Style:

    • Street Tires - Great for commuting or riding paved paths. Has less rolling resistance than MTB tires.
    • MTB Tires - Great versatility for on or off-road riding. These tires have more rolling resistance but much greater traction.

    Technical Specifications

    Technical Specifications

    ×
    frame

    6061 aluminum

    rear hub

    170mm 36h

    seat post

    27.2mm

    fork

    Rst guide w/75mm travel, lockout and preload

    rear axle

    5mm qr

    seat post clamp

    Qr

    headset

    Threadless 1-1/8 1-1/2 tapered

    rims

    Black 36h

    motor

    750w bbs02 mid-drive

    shifter rear

    Shimano alivo 9 speed trigger shifter

    tire sizes

    26x4", 27.5x3"

    battery sizes

    Total capacity of 52v 34.5ah 1794wh:
    52v 17.5ah 910wh (internal battery) +
    up to 52v 17ah 884wh (external range extender battery)

    rear derailleur

    Shimano alivo 9 speed

    brakes

    Tektro e350 dual piston w/180mm rotors

    display

    Dpc-18

    cassette

    12-36t

    brake levers

    Tektro adjustable

    lights

    Integrated headlight, taillight

    chain

    Kmc x9

    lights

    Integrated headlight, taillight

    handlebar

    31.8mm clamp, 700mm wide, 80mm rise

    assist type

    Cadence

    crank set

    170mm arms 44t chainring

    stem

    Promax 90mm

    assist levels

    0-5

    bottom bracket

    Bafang square taper

    grips

    Slide on

    throttle

    Thumb throttle

    front hub

    135mm 36h

    saddle

    Wide saddle

    other

    Front and rear fenders, rear rack, kickstand

    front axle

    5mm qr

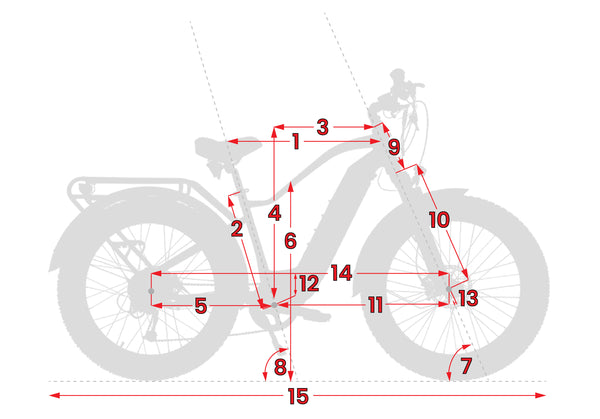

    Sizing / Fittings

    Sizing / Fittings

    ×
    1 Effective Top Tube Length 620mm 24.4in
    2 Seat Tube Length (Classic Bike Size) 420mm 16.5in
    3 Reach 420mm 16.5in
    4 Stack 700mm 27.6in
    5 Chainstay Length 530mm 20.9in
    6 Standover Height 660mm 26in
    7 Head Angle 68° -
    8 Seat Angle 71° -
    9 Head Tube Length 190 mm 7.5 in
    10 Fork Length 530mm 20.9in
    11 Front Center 750mm 29.5in
    12 BB (Bottom Bracket) Drop 65mm 2.6in
    13 Fork Offset 35mm 1.4in
    14 Wheelbase 1250mm 49.2in
    15 Total Length 1990mm 78.3in
    16 Max Seat Height 930mm 36.6in
    17 Min Seat Height 770mm 30.3in
    18 Handlebar Height 1140mm 44.9in
    19 Weight (Without Battery) 32.5kg 71.7lb
    1 Effective Top Tube Length 640mm 25.2in
    2 Seat Tube Length (Classic Bike Size) 470mm 18.5in
    3 Reach 450mm 17.7in
    4 Stack 670mm 26.4in
    5 Chainstay Length 530mm 20.9in
    6 Standover Height 710mm 28in
    7 Head Angle 68° -
    8 Seat Angle 71° -
    9 Head Tube Length 190 mm 7.5 in
    10 Fork Length 530mm 20.9in
    11 Front Center 760mm 29.9in
    12 BB (Bottom Bracket) Drop 65mm 2.6in
    13 Fork Offset 35mm 1.4in
    14 Wheelbase 1250mm 49.2in
    15 Total Length 2000mm 78.7in
    16 Max Seat Height 1010mm 39.8in
    17 Min Seat Height 840mm 33.1in
    18 Handlebar Height 1170mm 46.1in
    19 Weight (Without Battery) 32.5kg 71.7lb

    The Duo Series. Ebikes for Everyone.

    The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

    Watch this video to see how The 3 Duo models stack up.

    The next step in performance.

    Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.

    all the good stuff, and more.

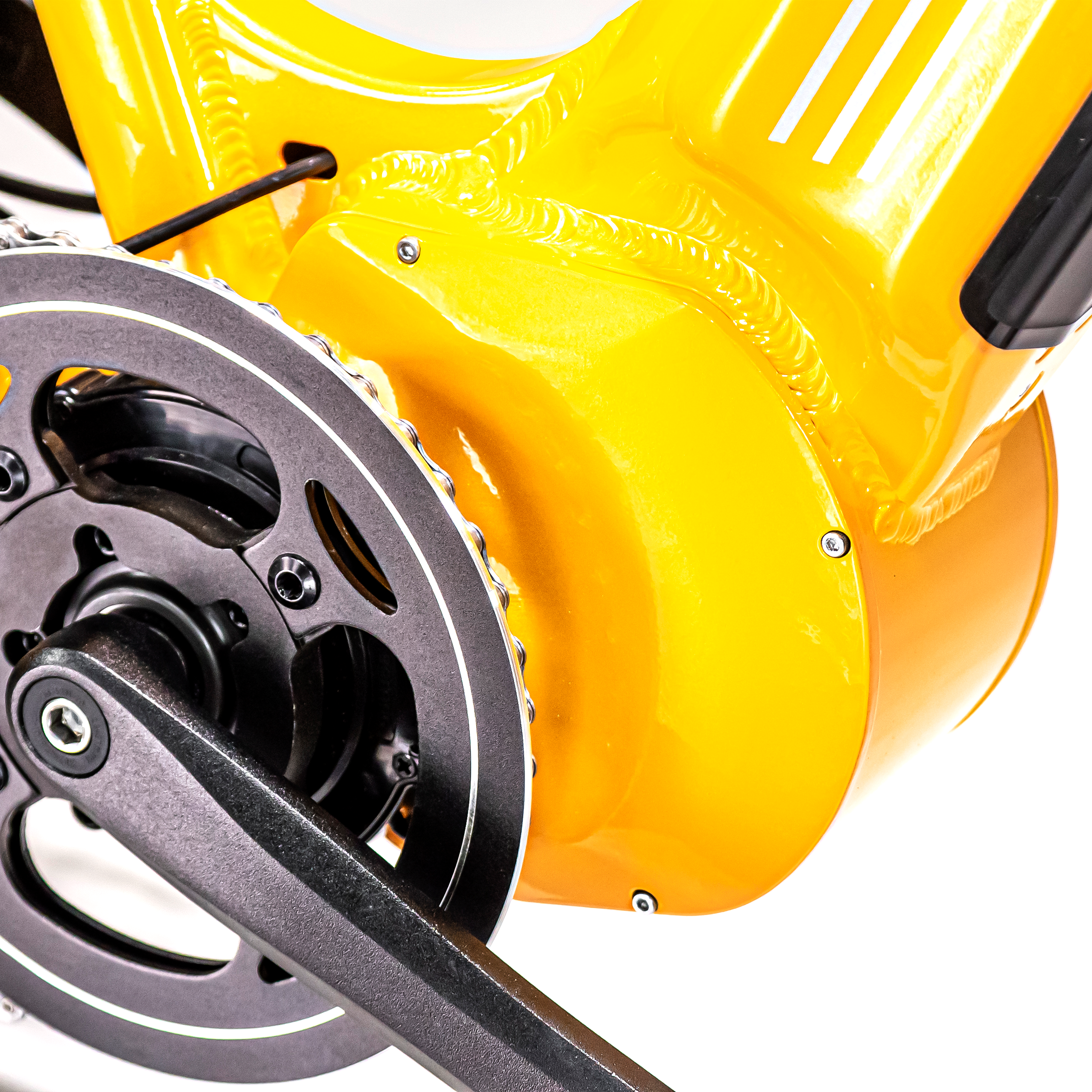

    Mid Drive Motor

    The Bafang BBS02 mid-drive motor features 750 watts of power and 120Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.

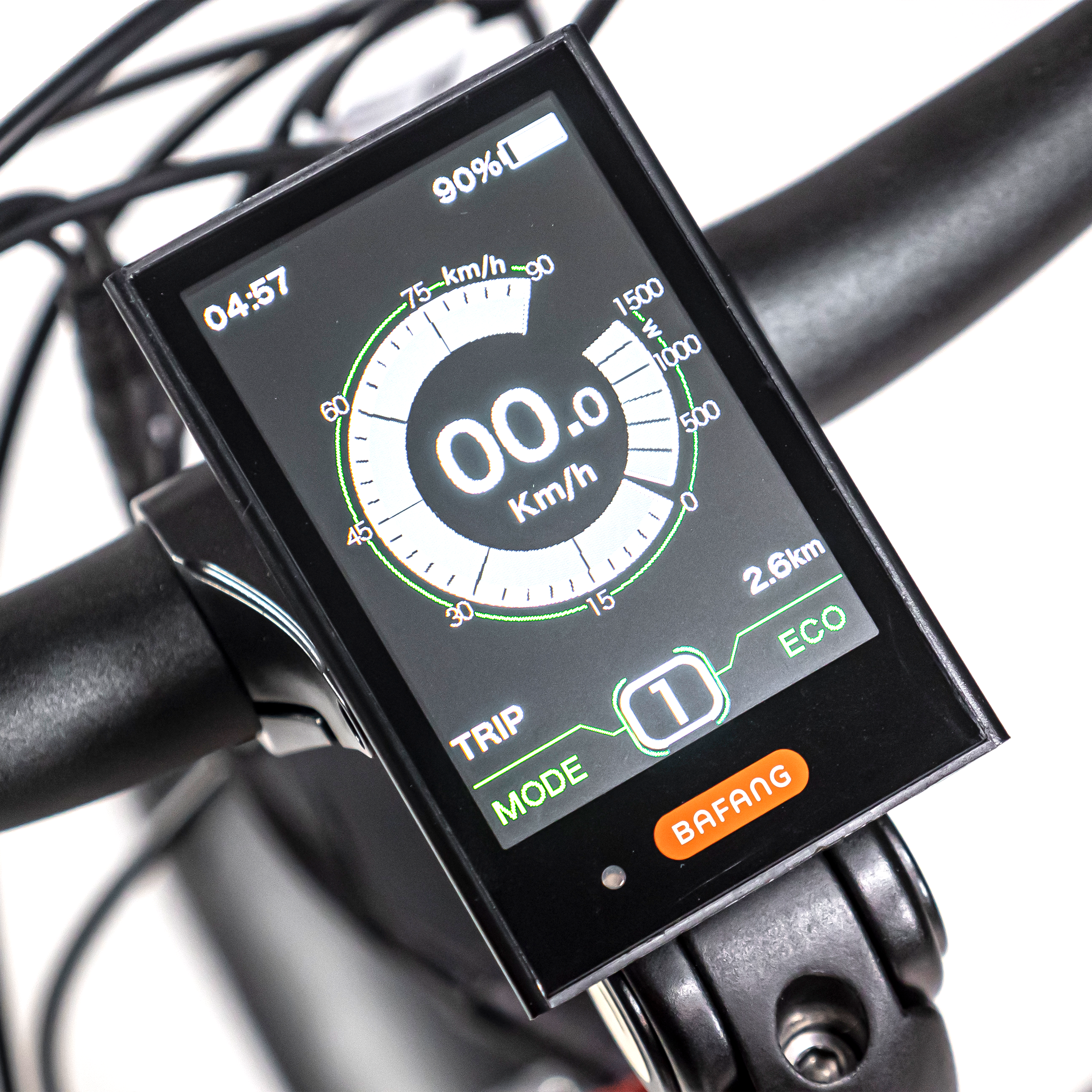

    LCD Display

    The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.

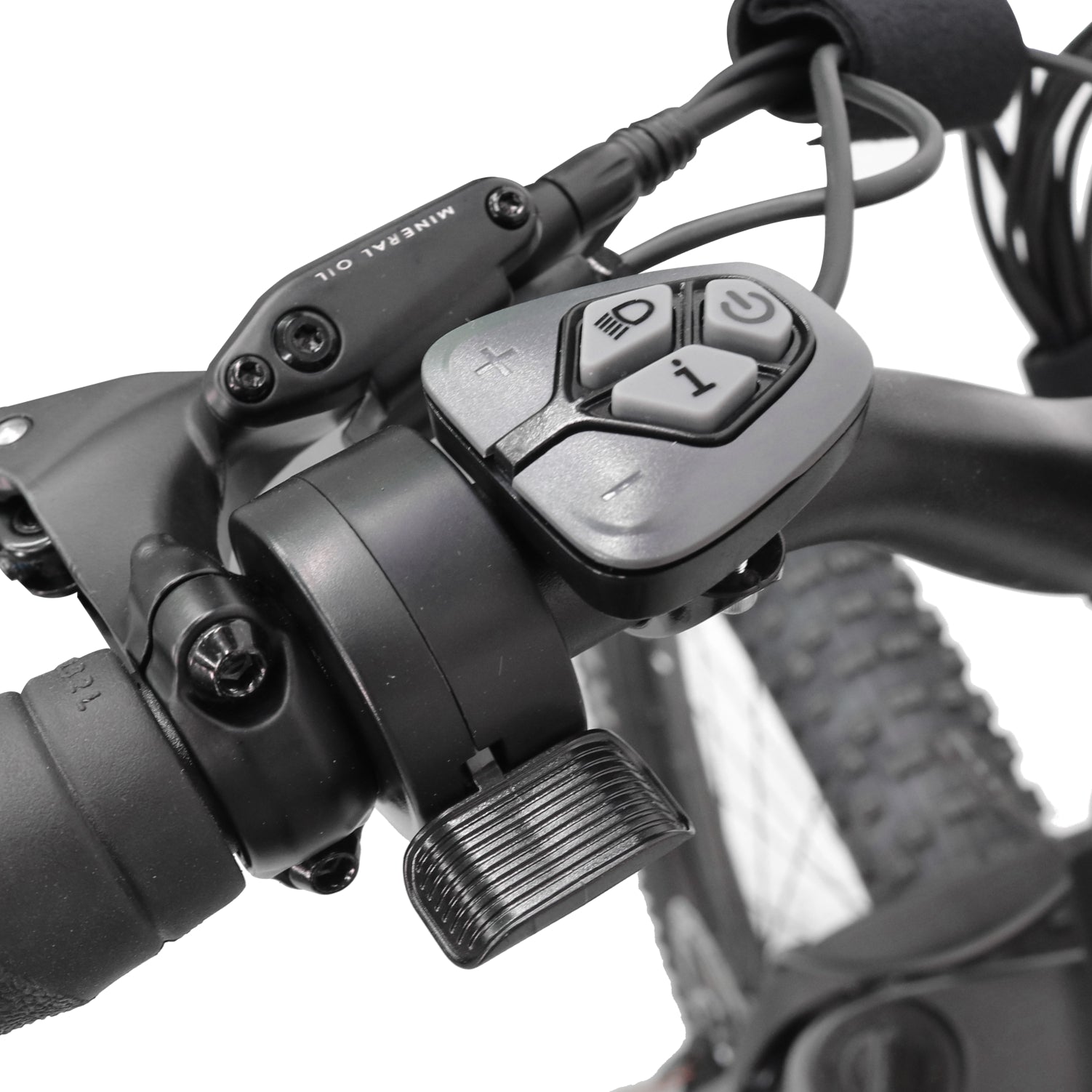

    Thumb Throttle & Control Pad

    With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

    Suspension Fork

    The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability

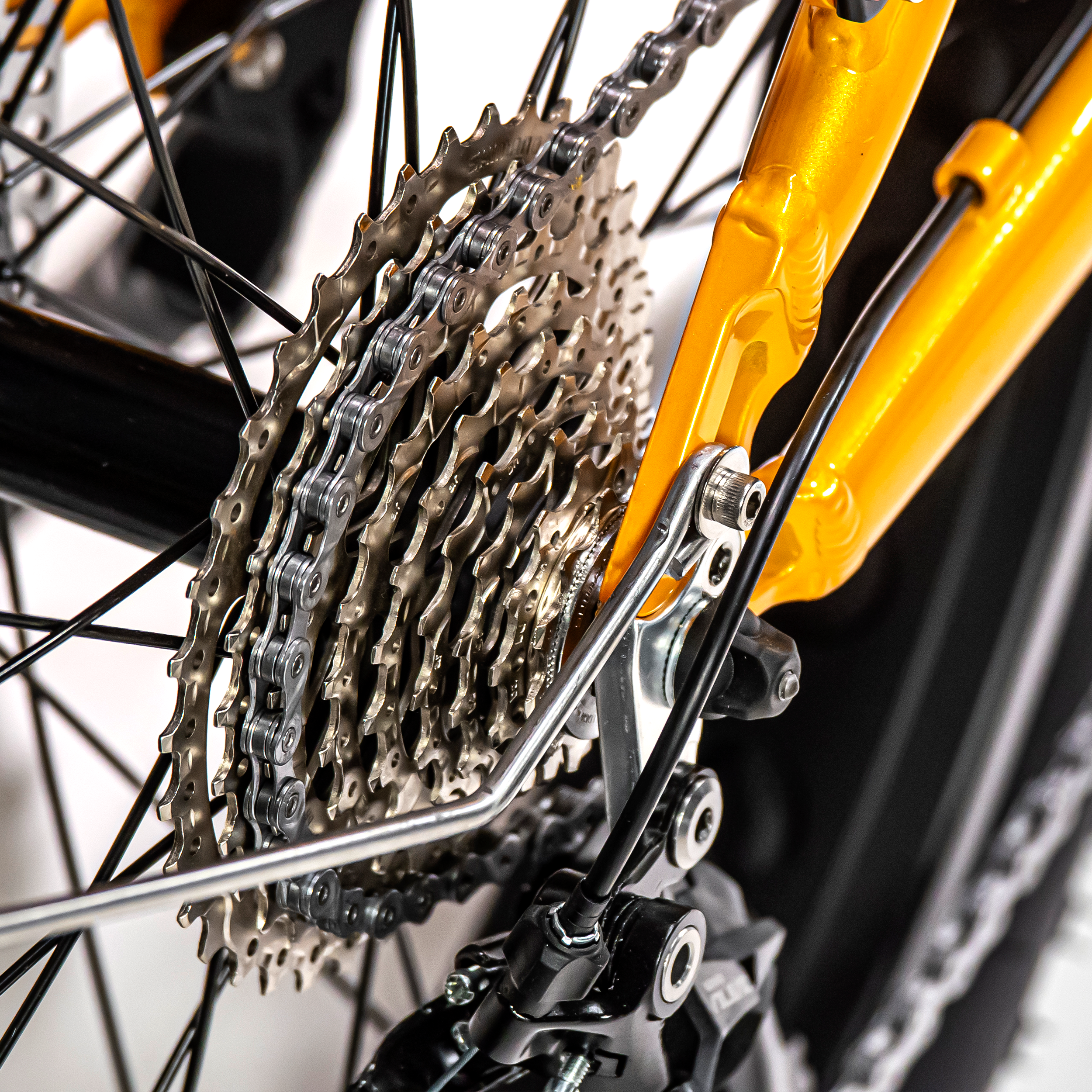

    Drivetrain

    From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

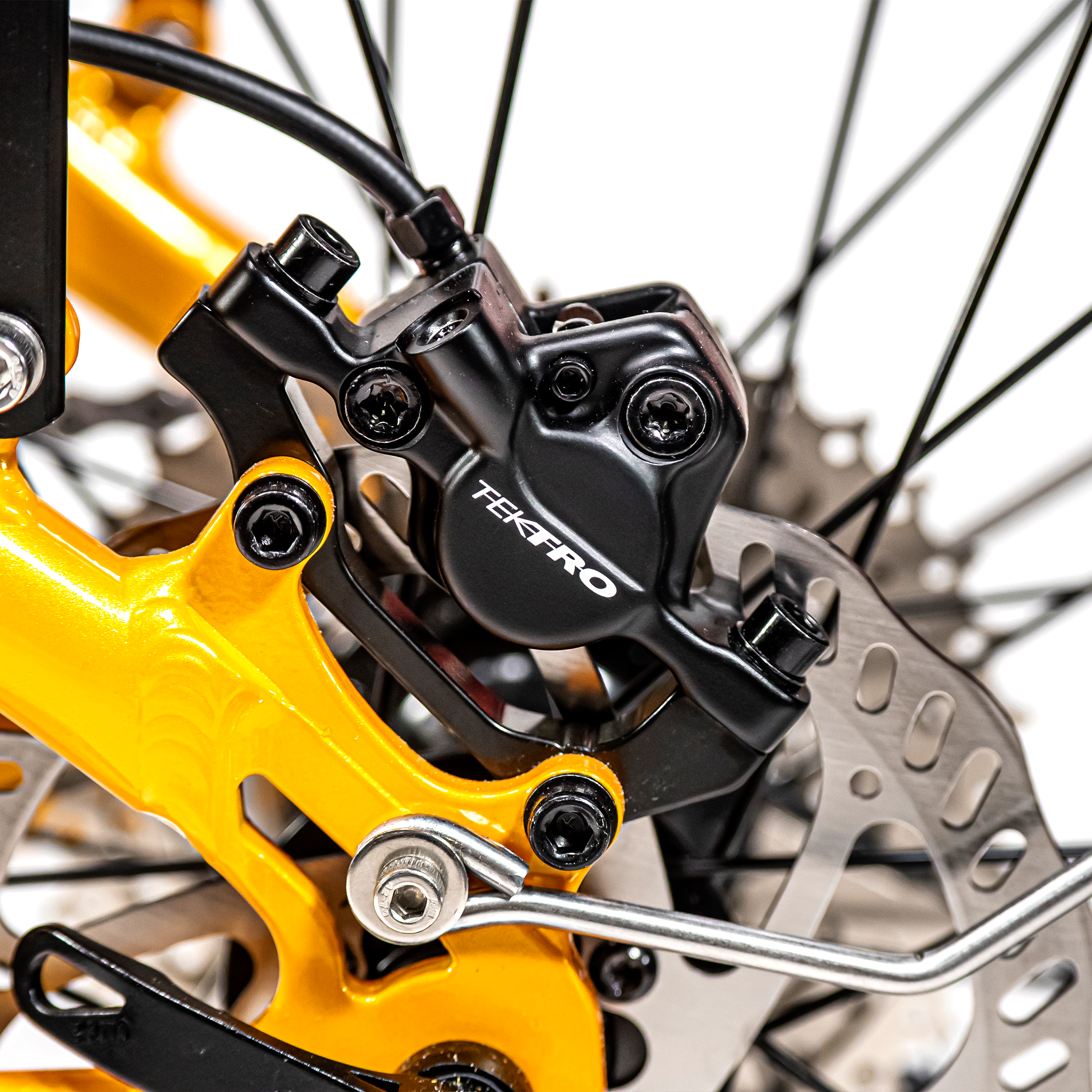

    Hydraulic Disc Brakes

    When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

    Integrated Front Light

    This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

    Optional Range Extender

    Multiple range-extender battery options can expand your eBike's range all the way to 160 km.

    Rack & Fenders

    These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

    Technical Specifications

    frame

    6061 aluminum

    rear hub

    170mm 36h

    seat post

    27.2mm

    fork

    Rst guide w/75mm travel, lockout and preload

    rear axle

    5mm qr

    seat post clamp

    Qr

    headset

    Threadless 1-1/8 1-1/2 tapered

    rims

    Black 36h

    motor

    750w bbs02 mid-drive

    shifter rear

    Shimano alivo 9 speed trigger shifter

    tire sizes

    26x4", 27.5x3"

    battery sizes

    Total capacity of 52v 34.5ah 1794wh:
    52v 17.5ah 910wh (internal battery) +
    up to 52v 17ah 884wh (external range extender battery)

    rear derailleur

    Shimano alivo 9 speed

    brakes

    Tektro e350 dual piston w/180mm rotors

    display

    Dpc-18

    cassette

    12-36t

    brake levers

    Tektro adjustable

    lights

    Integrated headlight, taillight

    chain

    Kmc x9

    lights

    Integrated headlight, taillight

    handlebar

    31.8mm clamp, 700mm wide, 80mm rise

    assist type

    Cadence

    crank set

    170mm arms 44t chainring

    stem

    Promax 90mm

    assist levels

    0-5

    bottom bracket

    Bafang square taper

    grips

    Slide on

    throttle

    Thumb throttle

    front hub

    135mm 36h

    saddle

    Wide saddle

    other

    Front and rear fenders, rear rack, kickstand

    front axle

    5mm qr

    Size & Fittings

    1 Effective Top Tube Length 620mm 24.4in
    2 Seat Tube Length (Classic Bike Size) 420mm 16.5in
    3 Reach 420mm 16.5in
    4 Stack 700mm 27.6in
    5 Chainstay Length 530mm 20.9in
    6 Standover Height 660mm 26in
    7 Head Angle 68° -
    8 Seat Angle 71° -
    9 Head Tube Length 190 mm 7.5 in
    10 Fork Length 530mm 20.9in
    11 Front Center 750mm 29.5in
    12 BB (Bottom Bracket) Drop 65mm 2.6in
    13 Fork Offset 35mm 1.4in
    14 Wheelbase 1250mm 49.2in
    15 Total Length 1990mm 78.3in
    16 Max Seat Height 930mm 36.6in
    17 Min Seat Height 770mm 30.3in
    18 Handlebar Height 1140mm 44.9in
    19 Weight (Without Battery) 32.5kg 71.7lb
    1 Effective Top Tube Length 640mm 25.2in
    2 Seat Tube Length (Classic Bike Size) 470mm 18.5in
    3 Reach 450mm 17.7in
    4 Stack 670mm 26.4in
    5 Chainstay Length 530mm 20.9in
    6 Standover Height 710mm 28in
    7 Head Angle 68° -
    8 Seat Angle 71° -
    9 Head Tube Length 190 mm 7.5 in
    10 Fork Length 530mm 20.9in
    11 Front Center 760mm 29.9in
    12 BB (Bottom Bracket) Drop 65mm 2.6in
    13 Fork Offset 35mm 1.4in
    14 Wheelbase 1250mm 49.2in
    15 Total Length 2000mm 78.7in
    16 Max Seat Height 1010mm 39.8in
    17 Min Seat Height 840mm 33.1in
    18 Handlebar Height 1170mm 46.1in
    19 Weight (Without Battery) 32.5kg 71.7lb
