Magura MT5e with Bafang HiGo 2-Pin Connector

Sale price$320.00 USD
Estimated to be shipped in 6-7 business days

Overview

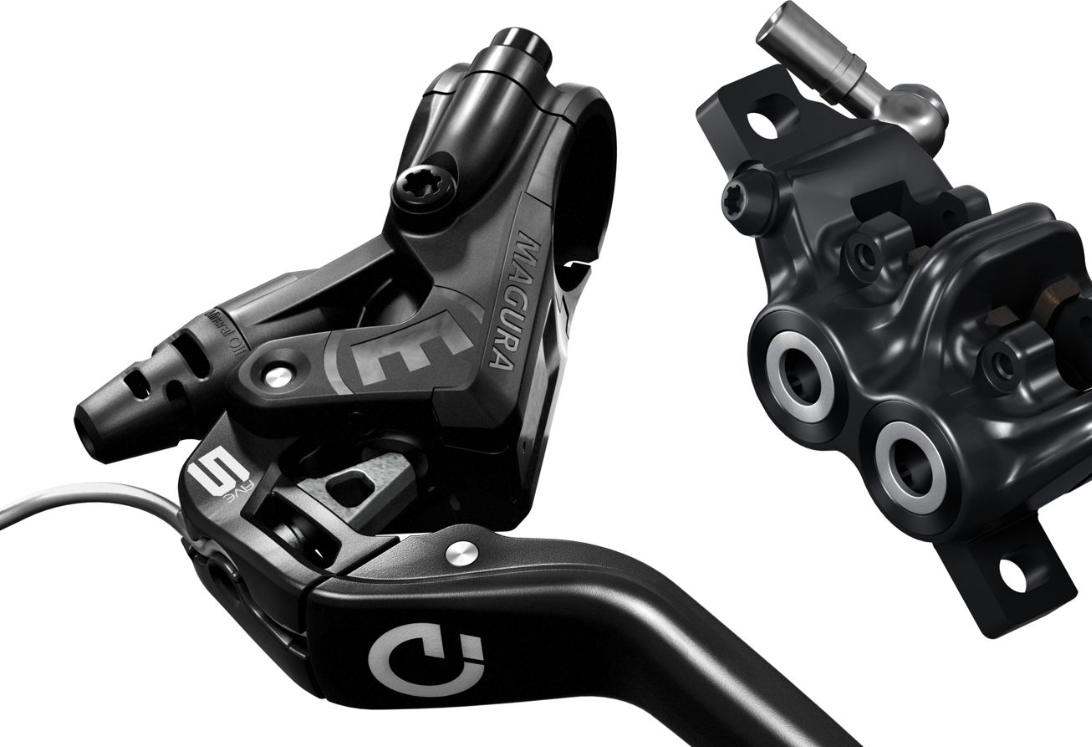

The Magura MT5e quad-piston disc brakes are the ultimate upgrade for your eBike. With German engineering and premium manufacturing, you won't find a higher quality brake system.

It is much more than a basic brake; it features a mechanical switch in the brake lever with a Bafang HIGO connector (closer type) which activates the brake light before deceleration begins and controls the motor cut-out for maximum safety.

The price is for 2 x (brake lever + caliper) attached to a 2200mm hose. The brake lever is reversible to use either on the left or right for front or back.

Features:

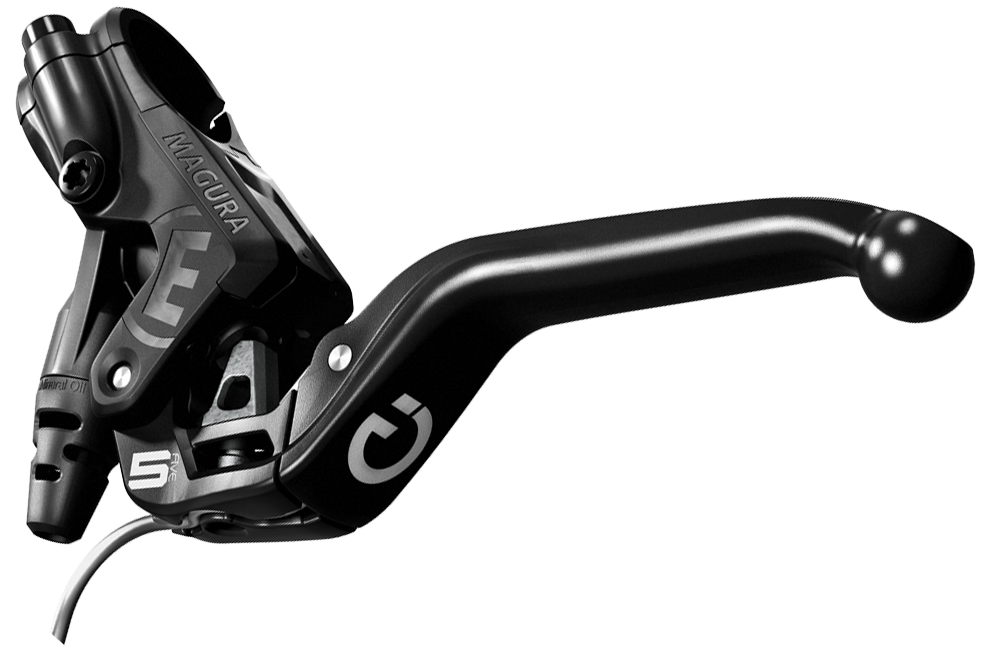

  • Ergonomic, 2-finger, aluminium brake lever
  • Carbotecture® housing & handlebar clamp
  • Adjustable lever reach

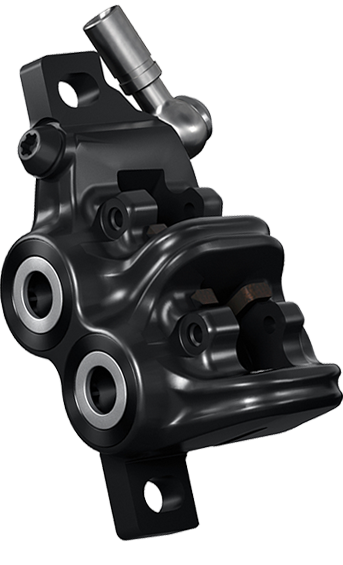

  • Forged, 4-piston brake caliper
  • MagnetiXchange brake pistons for easy brake pad replacement
  • Compatible with all MAGURA Storm and Storm SL discs

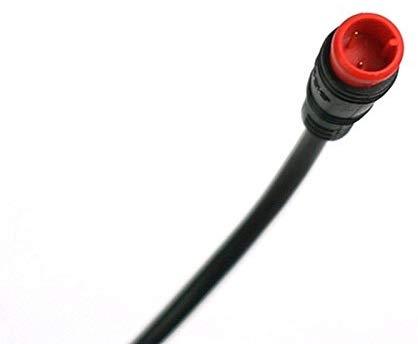

Note: If you do not opt for the 2-Pin:3-Pin Adaptors you will need to modify the connectors as shown here.

    Technical Specifications

    Master Material

    Carbotecture®

    Lever Blade Material

    Aluminum with Switch

    Caliper Material

    Aluminum

    Brake Type

    Hydraulic

    Brake Fluid

    Magura Royal Blood

    Reach Adjustment

    Yes, with 3mm Allen Key

    Brake Cutoff Switch

    Yes, 2-Pin HIGO

    Lever Blade Style

    3-Finger Ball End

    Mounting

    Post Mount / IS Mount with adaptors

    Weight

    345g per brake assembly

    Brake Sensor Type

    Closer Type

    Colour

    Black

    Hose Length

    2200mm
