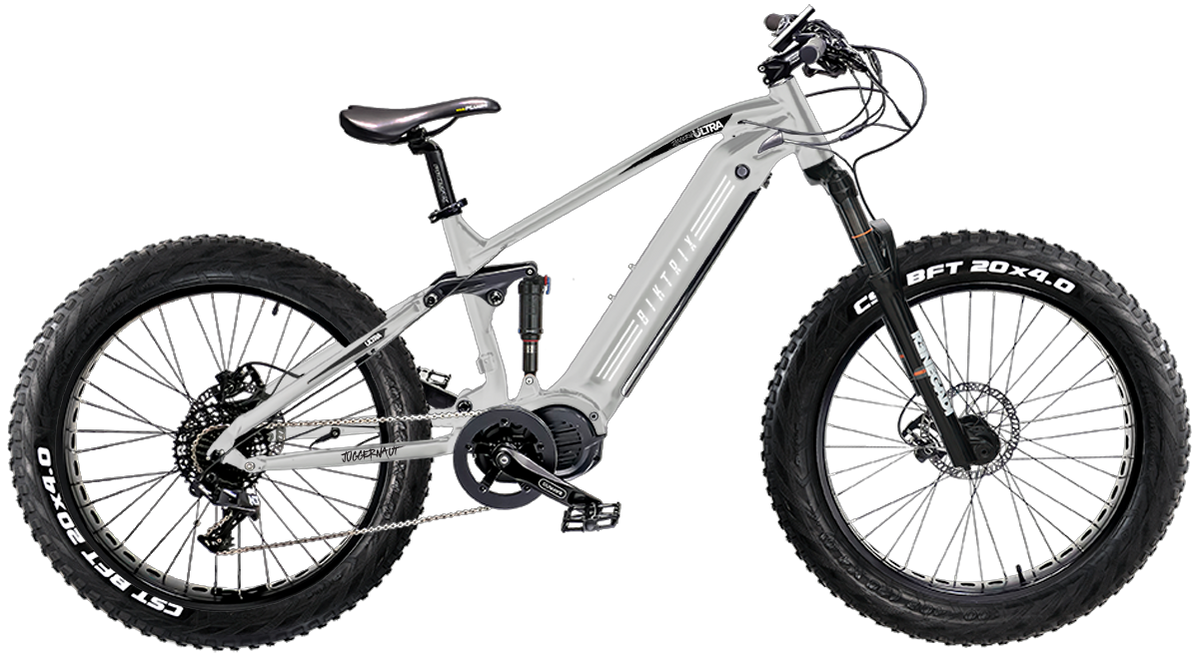

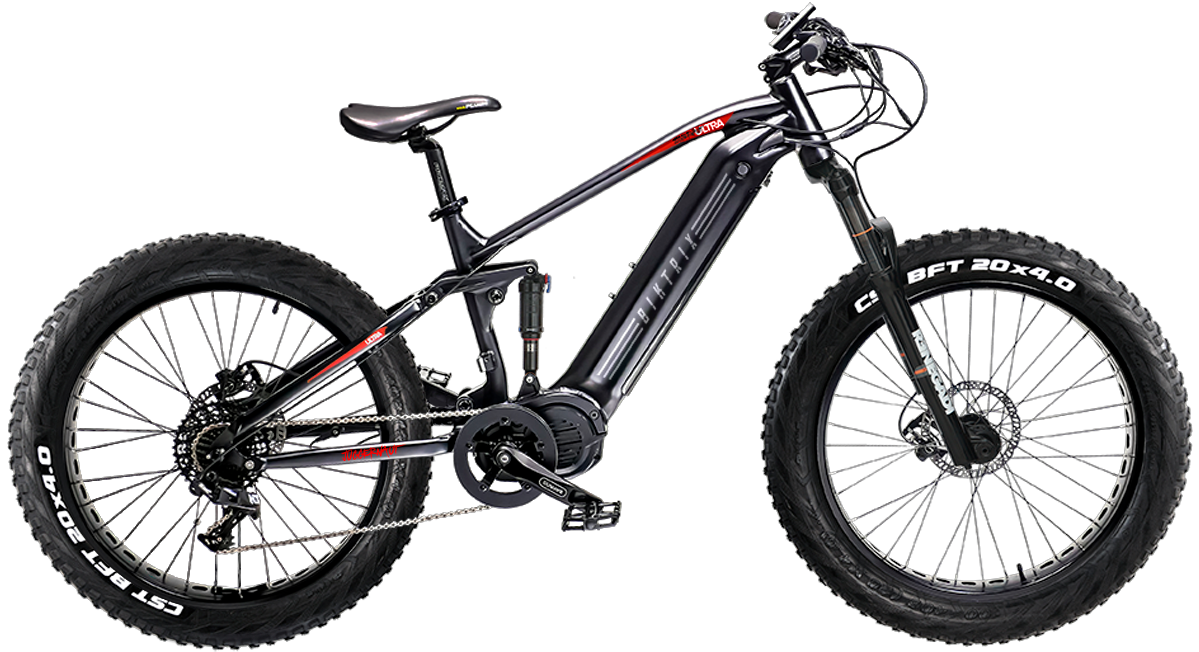

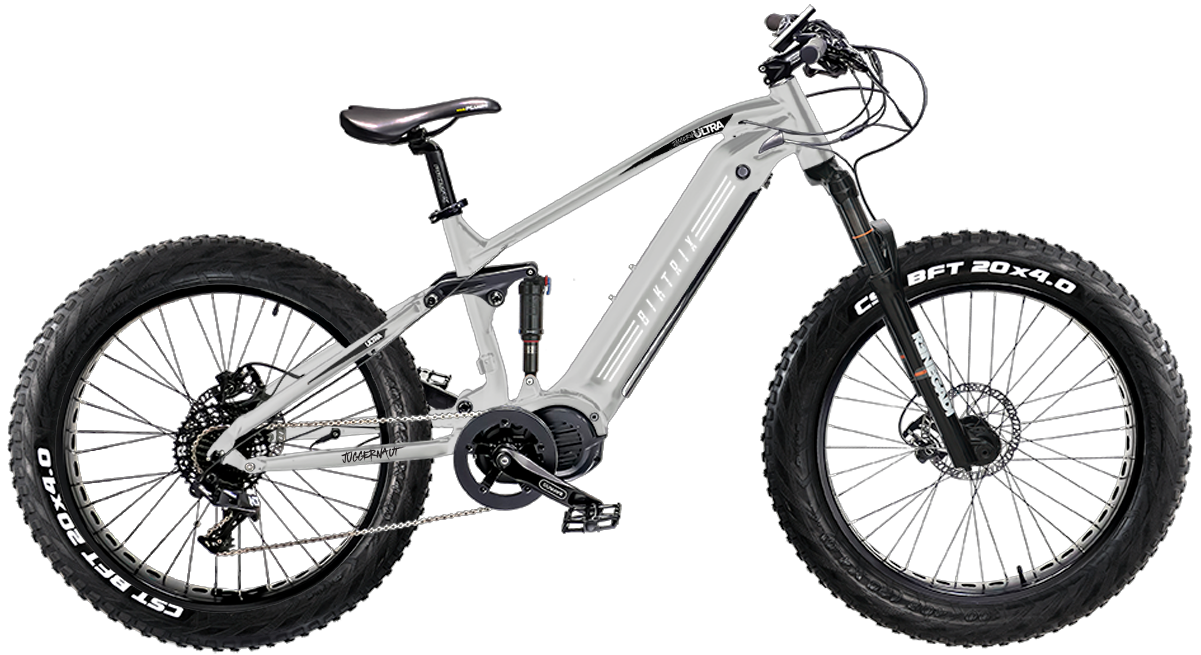

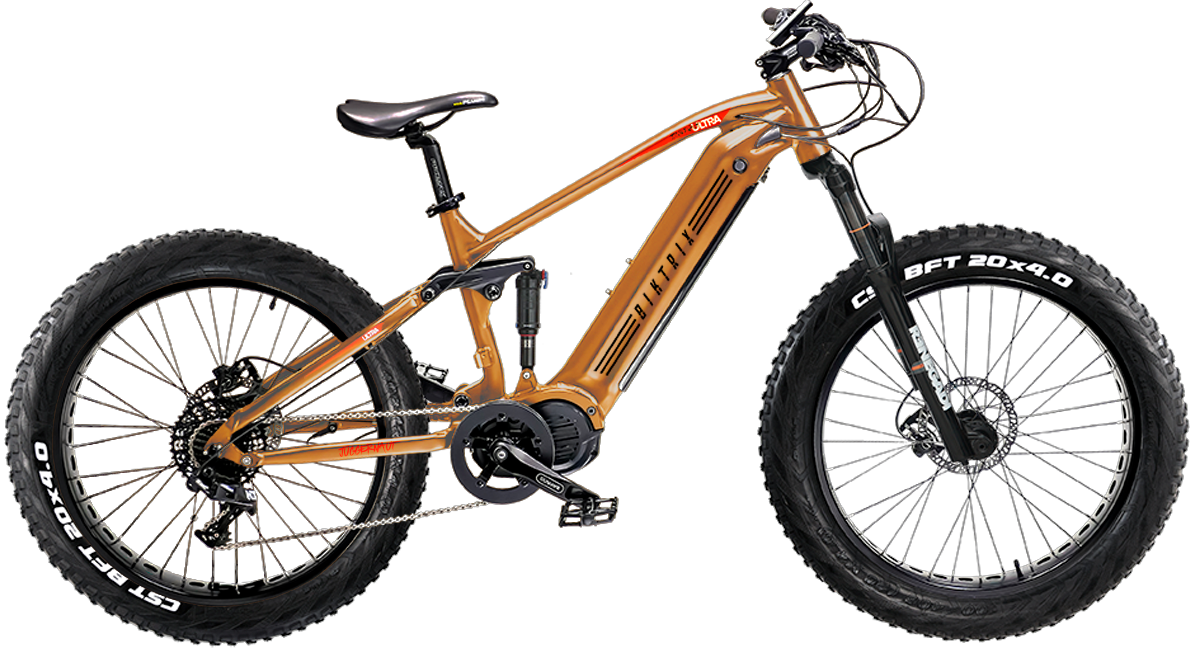

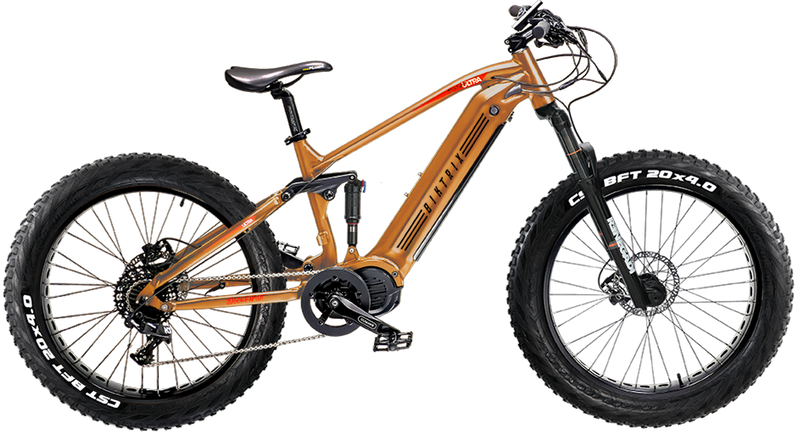

Juggernaut Ultra FS Pro 2

Sale price $4,199.00

Looking for the latest Full Suspension eBike from Biktrix? Check out the Juggernaut Ultra FS Pro 3!

Juggernaut Ultra FS Pro 3

Technical Specifications

frame

6061 aluminum

front hub

150mm thru 36h

seat post

31.6mm aluminum

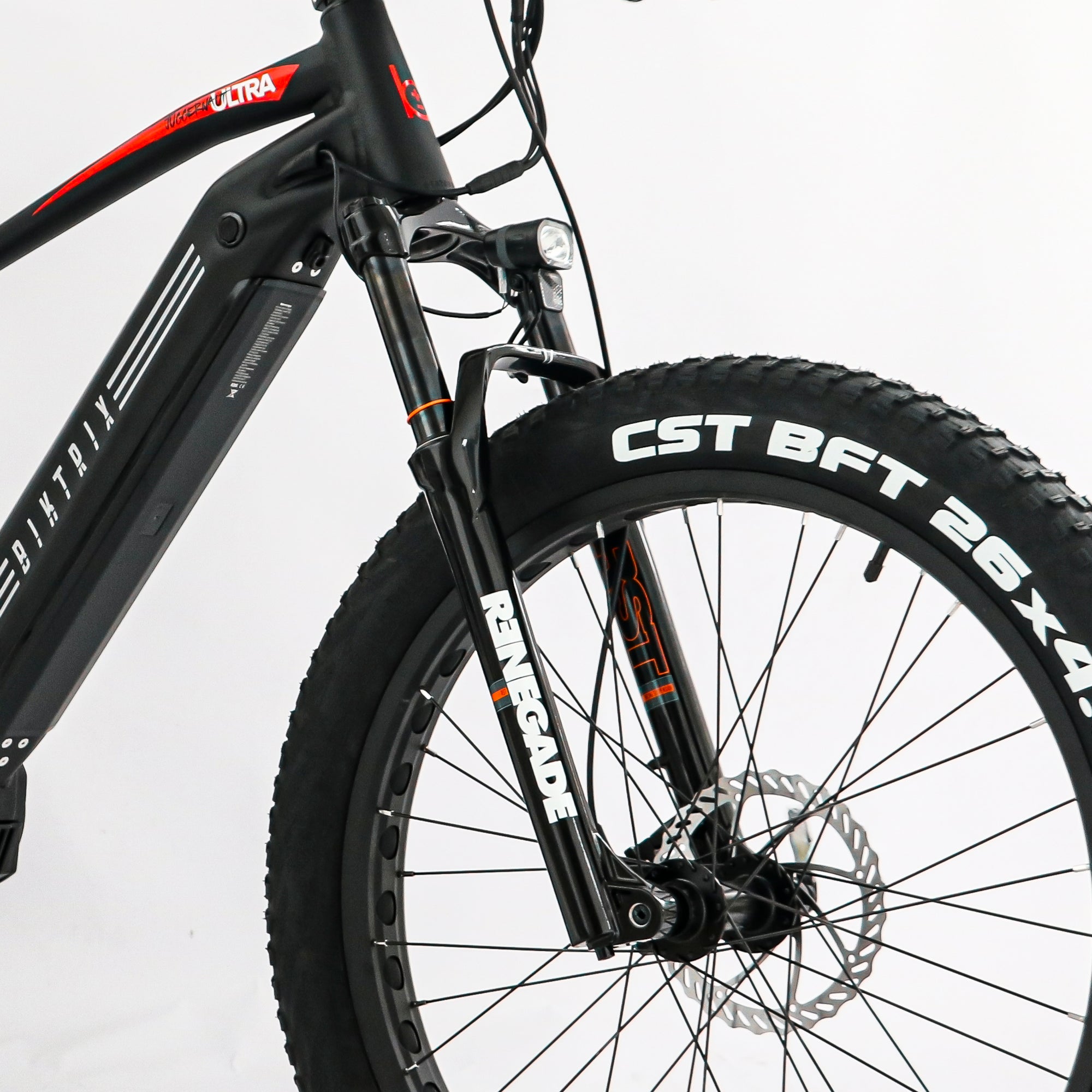

fork

Rst renegade tnl w/100mm travel, lockout and preload

front axle

15mm thru qr

seat post clamp

Qr

headset

Threadless 1-1/8 1-1/2 tapered

rear hub

197mm thru 36h

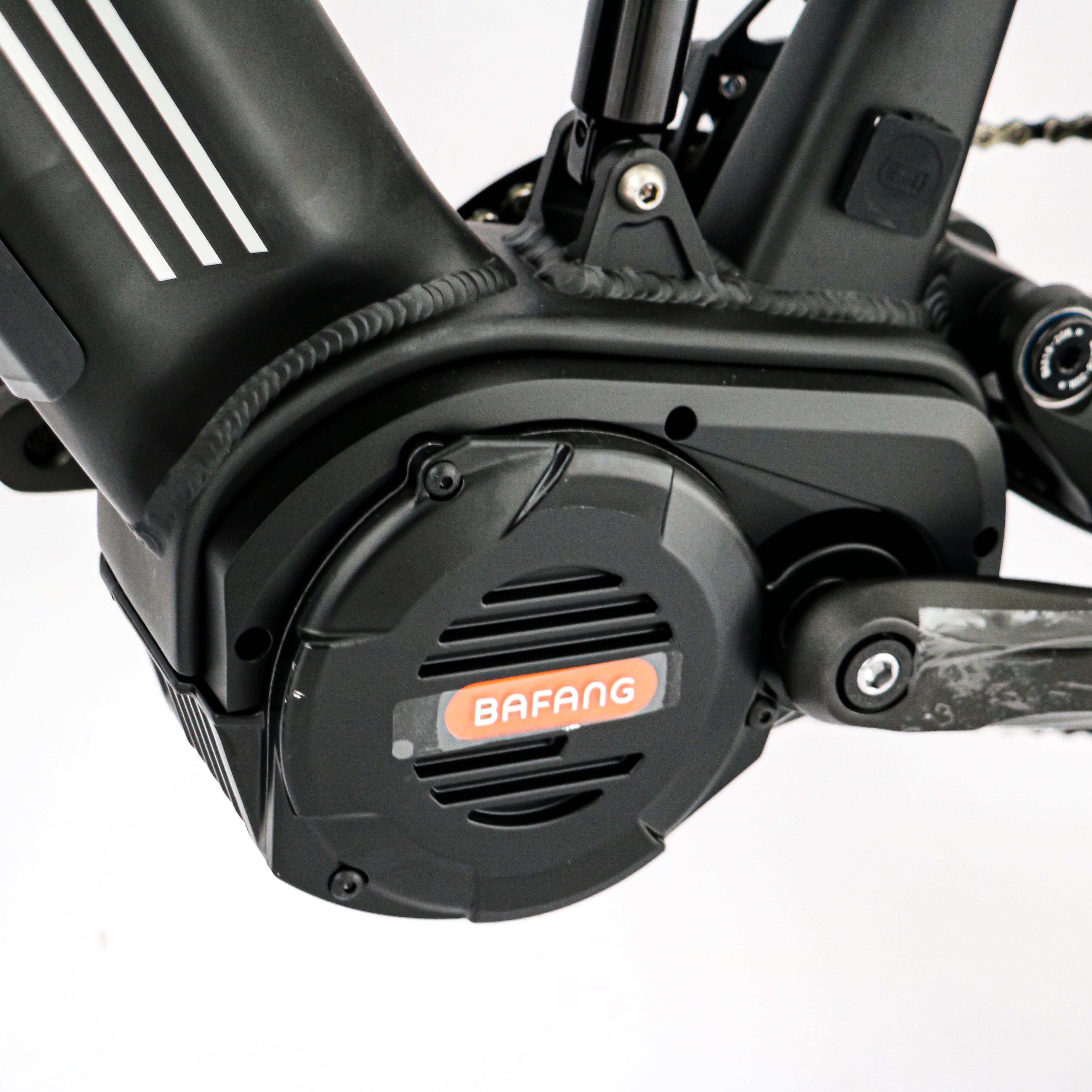

motor

Bafang ultra m620

shifter rear

Sram nx 11 speed trigger shifter

rear axle

12mm thru axle

battery sizes

52v 17ah hidden battery + range extenders

rear derailleur

Sram nx 11 speed

rims

Black 26" with round cutouts

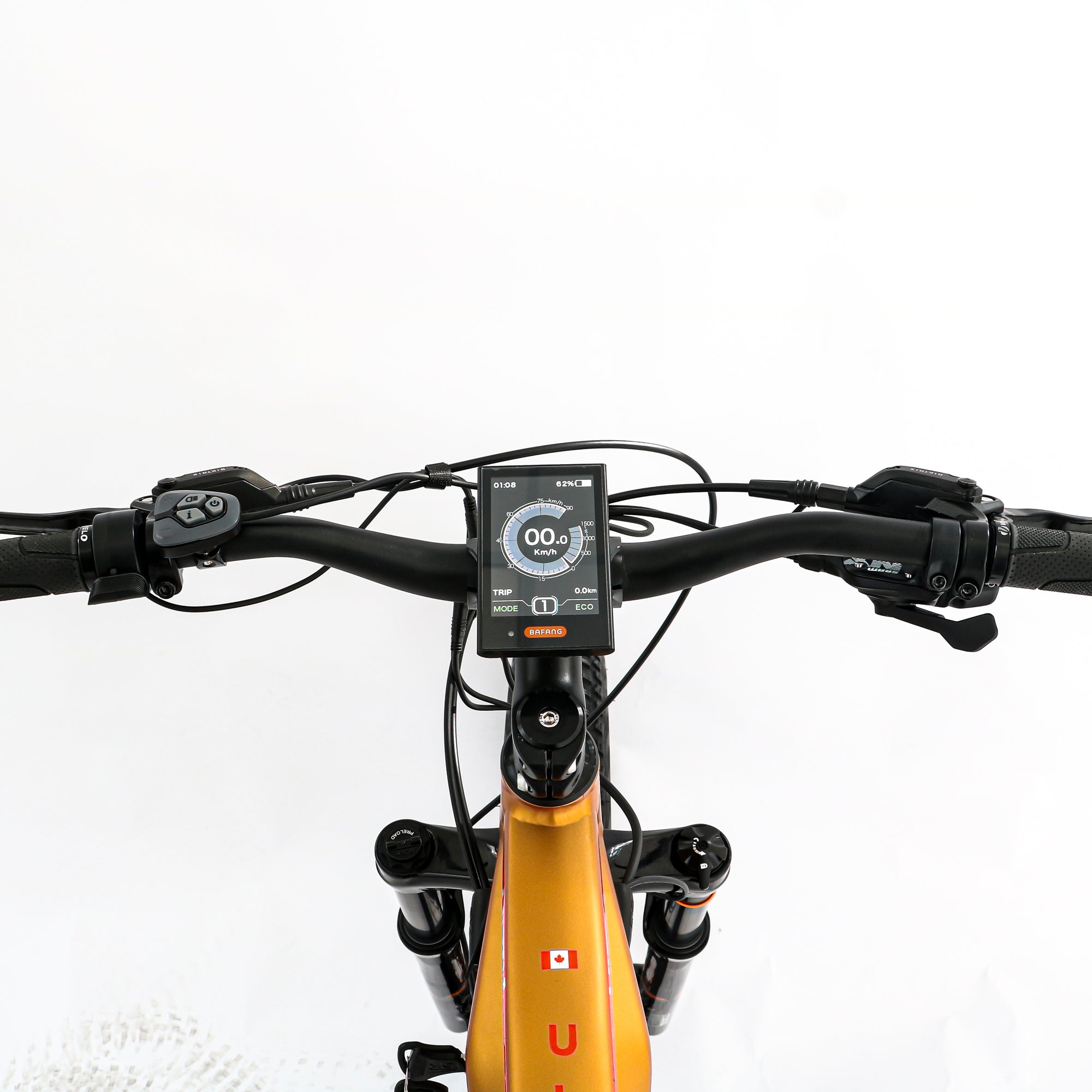

display

Dpc-18

cassette

Sram 11-42t

tire sizes

26x4"

lights

Integrated headlight

chain

Kmc e11s - 128 links

handlebar

740mm wide w/30mm rise, 31.8mm clamp

assist type

Torque + cadence

crank set

44t chainring w/ 170mm arms

stem

90mm solid

assist levels

1-5

bottom bracket

Bafang isis

grips

Velo bolt on mtb grips

throttle

Thumb throttle

brakes

Biktrix dual piston hydraulic w/180mm rotors

saddle

Velo plush

other

Kickstand, rockshox monarch rl w/ 51mm travel rear suspension

brake levers

Biktrix adjustable w/ integrated brake cutoff

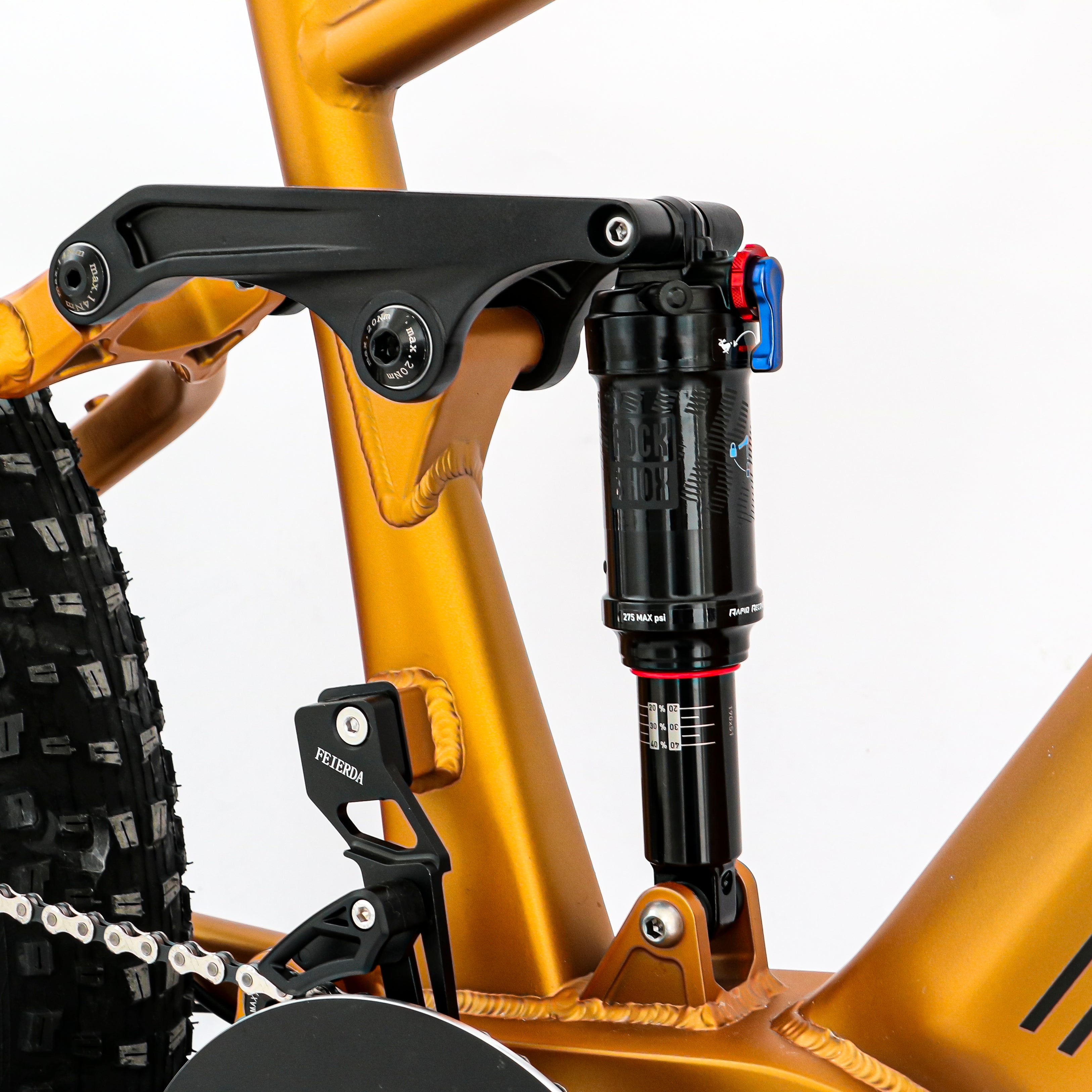

rear suspension

Rockshox monarch rl w/ 51mm travel

Size & Fittings

1 Effective Top Tube Length 600mm 23.6in
2 Seat Tube Length (Classic Bike Size) 480mm 18.9in
3 Reach 460mm 18.1in
4 Stack 590mm 23.2in
5 Chainstay Length 510mm 20.1in
6 Standover Height 740mm 29.1in
7 Head Angle 63° -
8 Seat Angle 72° -
9 Head Tube Length 160 mm 6.3 in
10 Fork Length 540mm 21.3in
11 Front Center 810mm 31.9in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 40mm 1.6in
14 Wheelbase 1330mm 52.4in
15 Total Length 2040mm 80.3in
16 Max Seat Height 1080mm 42.5in
17 Min Seat Height 880mm 34.6in
18 Handlebar Height 1060mm 41.7in
19 Weight (Without Battery) 32.6kg 71.9lb
1 Effective Top Tube Length 600mm 23.6in
2 Seat Tube Length (Classic Bike Size) 520mm 20.5in
3 Reach 460mm 18.1in
4 Stack 590mm 23.2in
5 Chainstay Length 520mm 20.5in
6 Standover Height 770mm 30.3in
7 Head Angle 63° -
8 Seat Angle 72° -
9 Head Tube Length 160 mm 6.3 in
10 Fork Length 540mm 21.3in
11 Front Center 810mm 31.9in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 40mm 1.6in
14 Wheelbase 1340mm 52.8in
15 Total Length 2060mm 81.1in
16 Max Seat Height 1120mm 44.1in
17 Min Seat Height 940mm 37in
18 Handlebar Height 1060mm 41.7in
19 Weight (Without Battery) 33.6kg 74.1lb
1 Effective Top Tube Length 580mm 22.8in
2 Seat Tube Length (Classic Bike Size) 430mm 16.9in
3 Reach 440mm 17.3in
4 Stack 540mm 21.3in
5 Chainstay Length 510mm 20.1in
6 Standover Height 730mm 28.7in
7 Head Angle 63° -
8 Seat Angle 72° -
9 Head Tube Length 160 mm 6.3 in
10 Fork Length 540mm 21.3in
11 Front Center 810mm 31.9in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 40mm 1.6in
14 Wheelbase 1320mm 52in
15 Total Length 2030mm 79.9in
16 Max Seat Height 1040mm 40.9in
17 Min Seat Height 840mm 33.1in
18 Handlebar Height 1020mm 40.2in
19 Weight (Without Battery) 32.6kg 71.9lb
