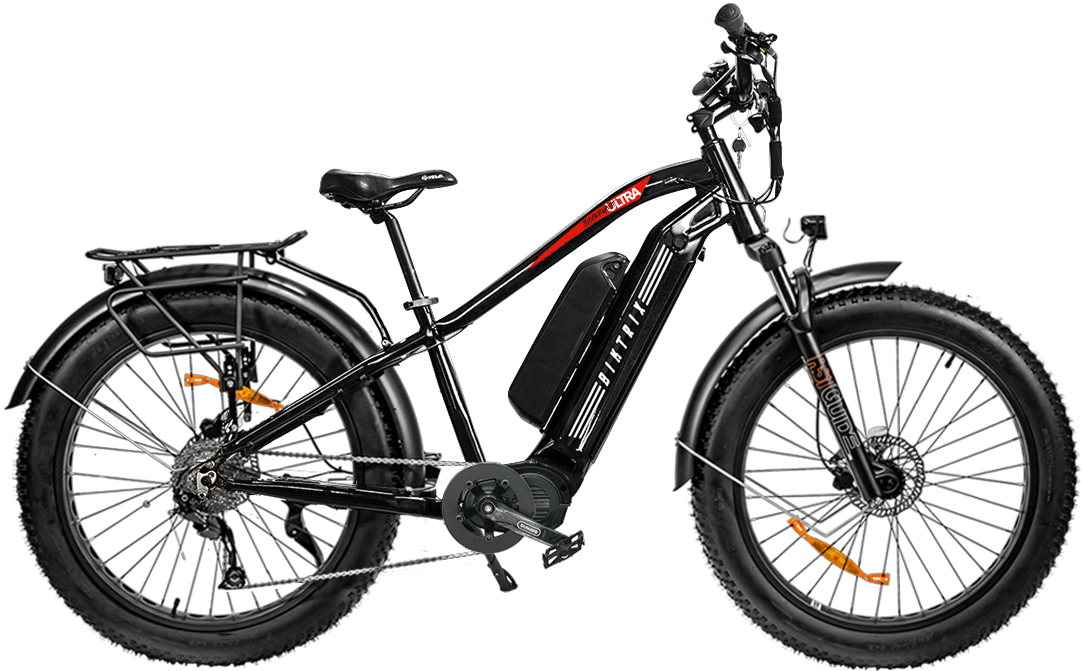

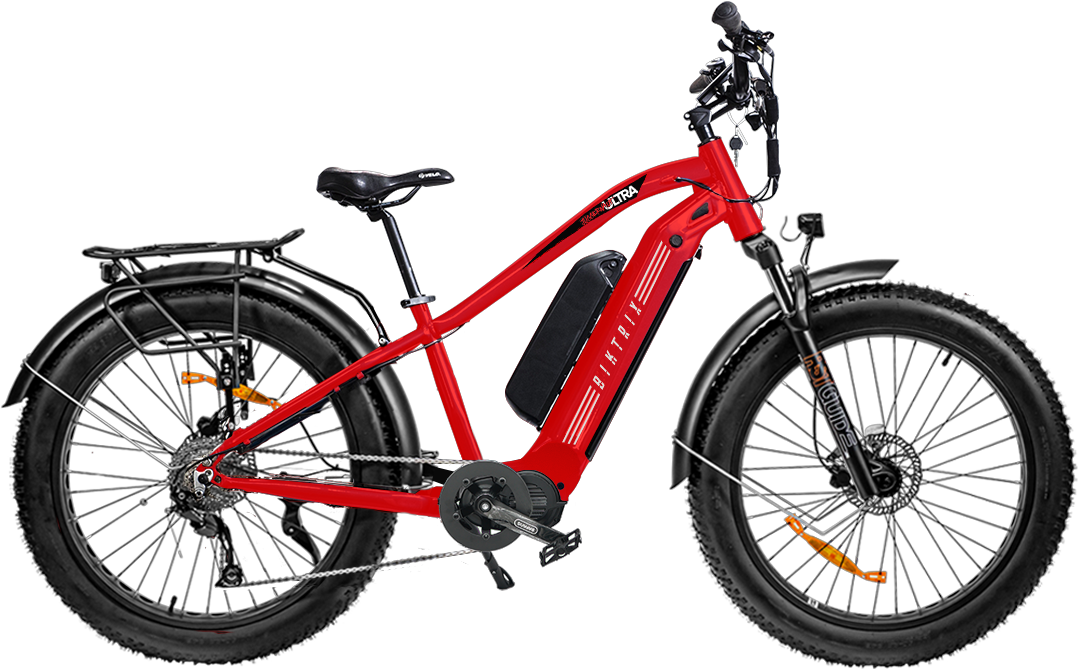

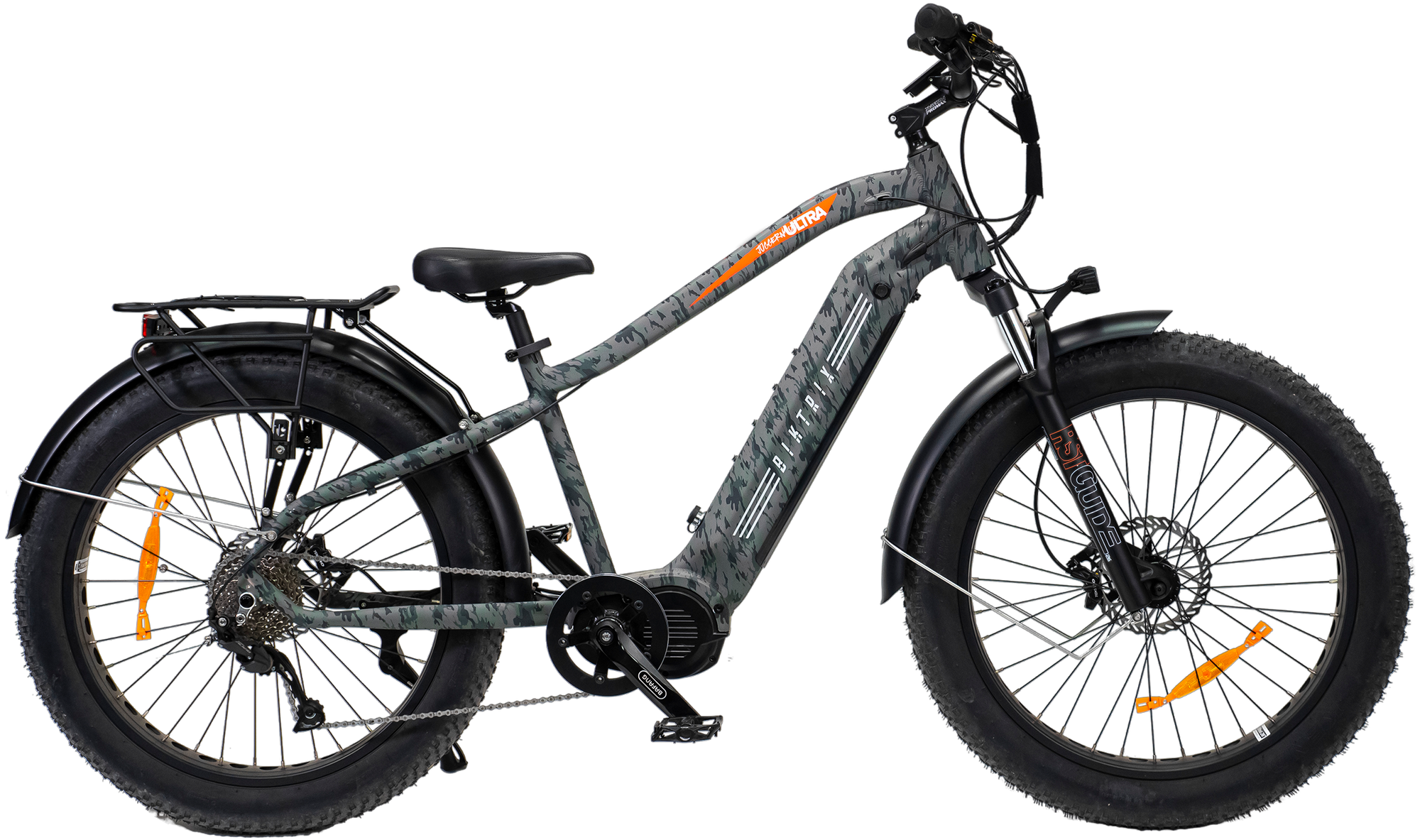

Juggernaut Ultra Duo 2 SO

Sale price $2,699.00 Regular price$4,499.00
Save $1,800
Black
Packages
Battery

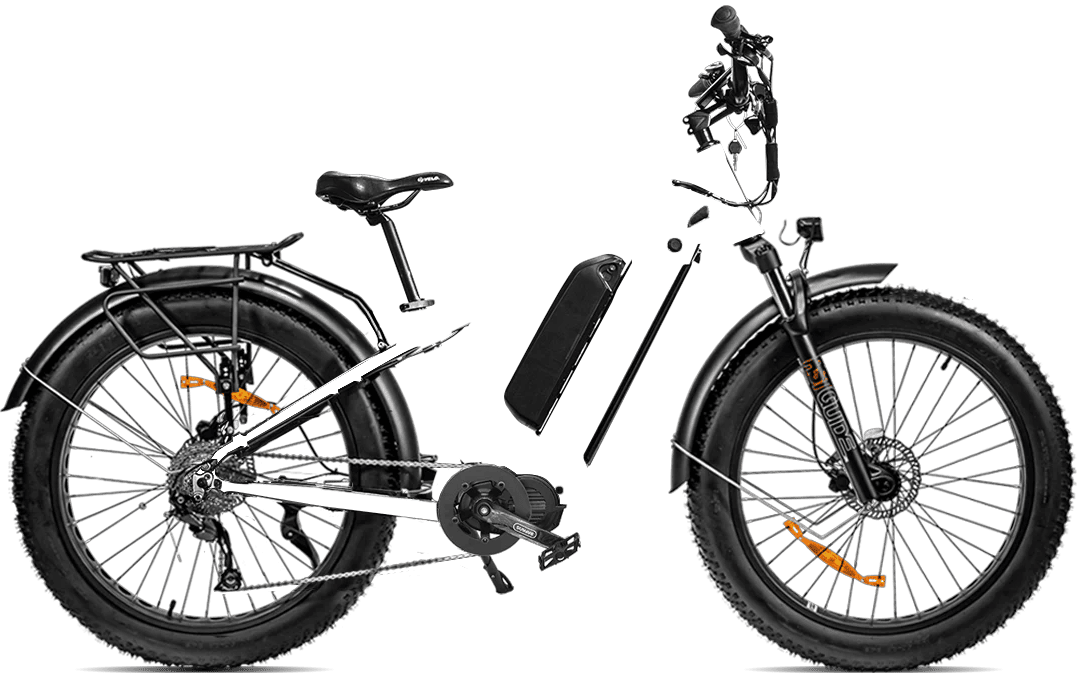

Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery. Note: 52V19Ah only fits 19" and 21" Frame
Upgrades
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

***Tektro and Magura upgrades come with a brake rotor upgrade from 160mm to 203mm

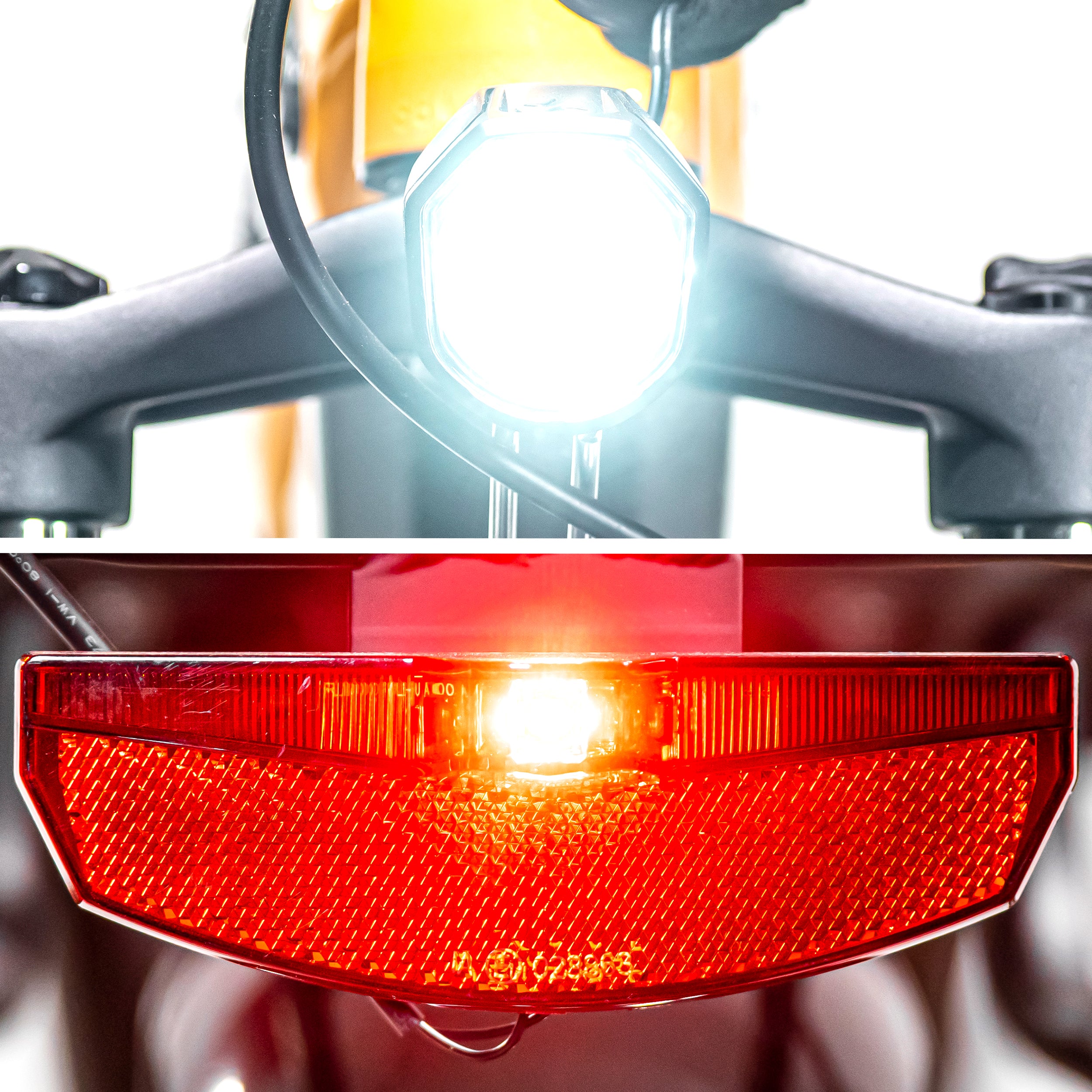

Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

**The price is discounted from the regular price of $300

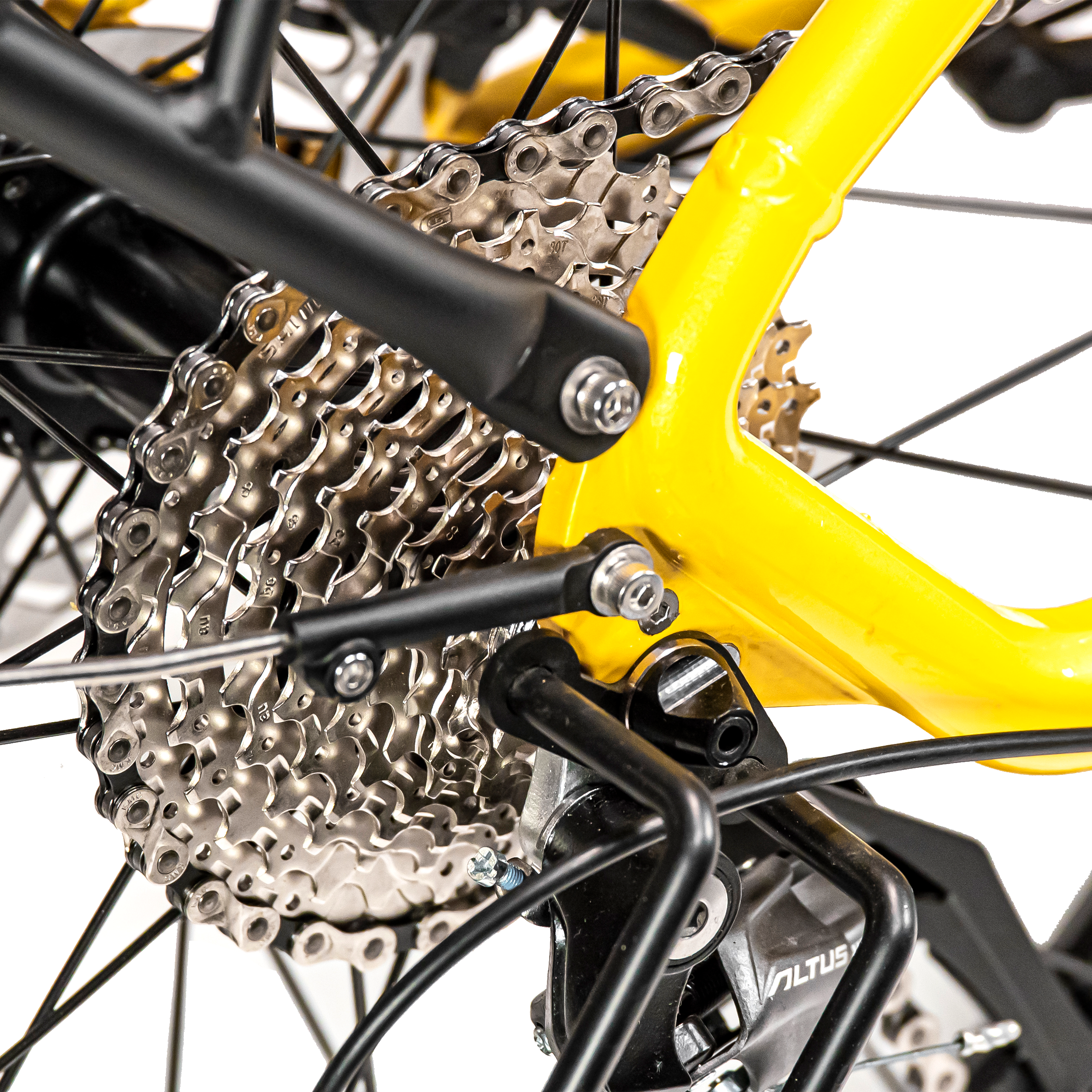

Drive Train


Unmatched power, smooth performance, and eco-friendly commuting in one seamless package.

**Drivetrain upgrade included Shifter, Cassette, Derailleur and Chain
Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price $2,699.00 Regular price$4,499.00
Shipping: Leaves within 6-7 business days

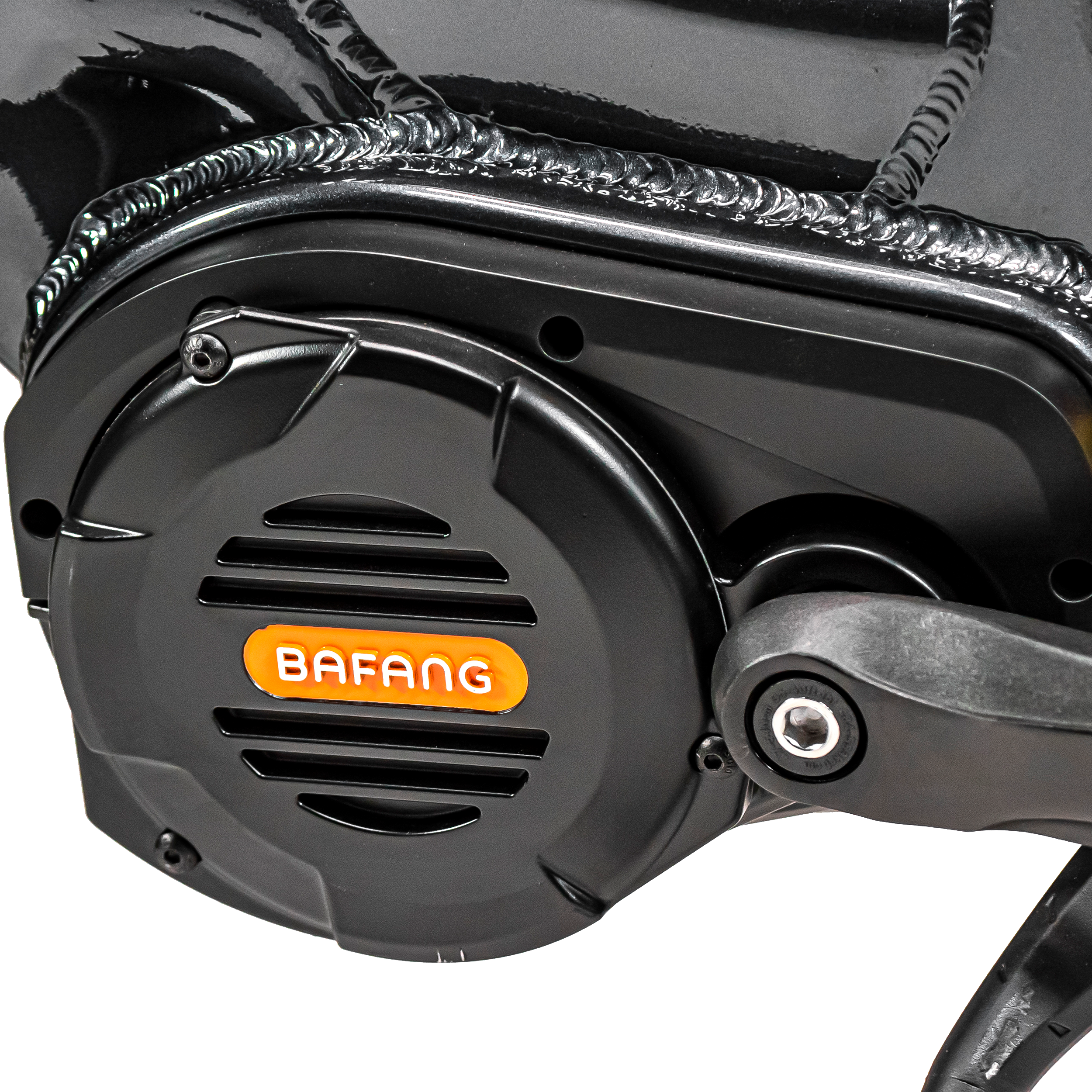

1000W Mid-Drive

Motor Power

52V 17Ah 910Wh

est. 45mi Range

+5'8ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

90+

Miles Range

160Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

Welcome To The Big Leagues.

The Ultra Duo sits at the top of the Duo range, so naturally, it boasts one of the most powerful motor systems available today. The Bafang Ultra M620 mid-drive motor is loaded with 1500W of peak power and 160Nm of torque. Pair that with the 11-speed drivetrain and you'll be nearly unstoppable.

Performance. Fully Loaded.

Distance Range

PAS 1
Pedal-Assist Lv.1
52mi
PAS 2
Pedal-Assist Lv.2
43mi
PAS 3
Pedal-Assist Lv.3
38mi
PAS 4
Pedal-Assist Lv.4
35mi
PAS 5
Pedal-Assist Lv.5
31mi
THRL
Throttle Only
22mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
12mm thru
Battery sizes
Total capacity of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 19ah 988wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Black 36h 26" w/ round cutouts

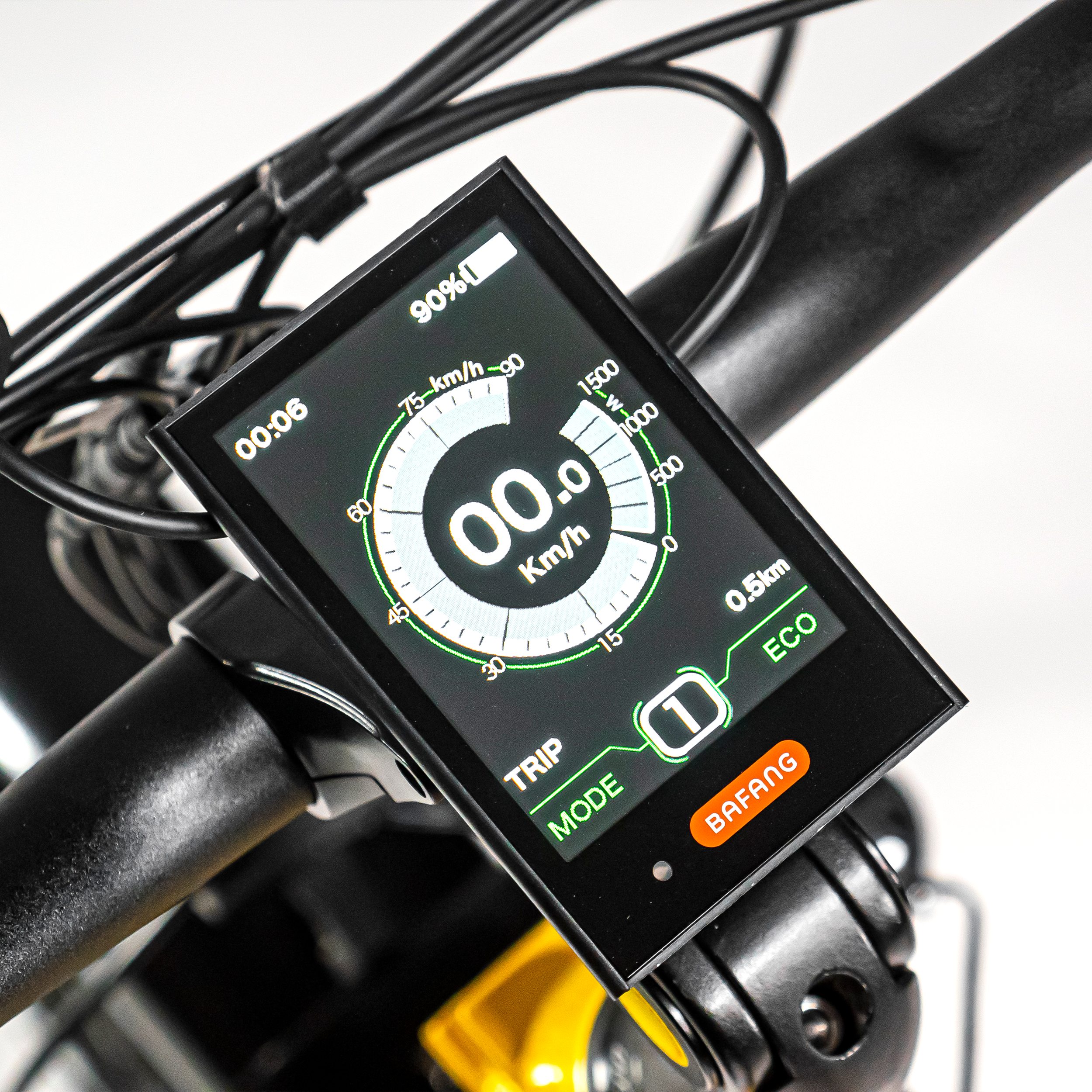

Display
Dpc-18
Cassette
9 speed 12-36t cassette
Tire sizes
26x4", 27.5x3"
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms 44t chainring
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang ultra isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Tektro e350 dual-piston brakes w/ 160mm rotors
Saddle
Wide saddle
Other

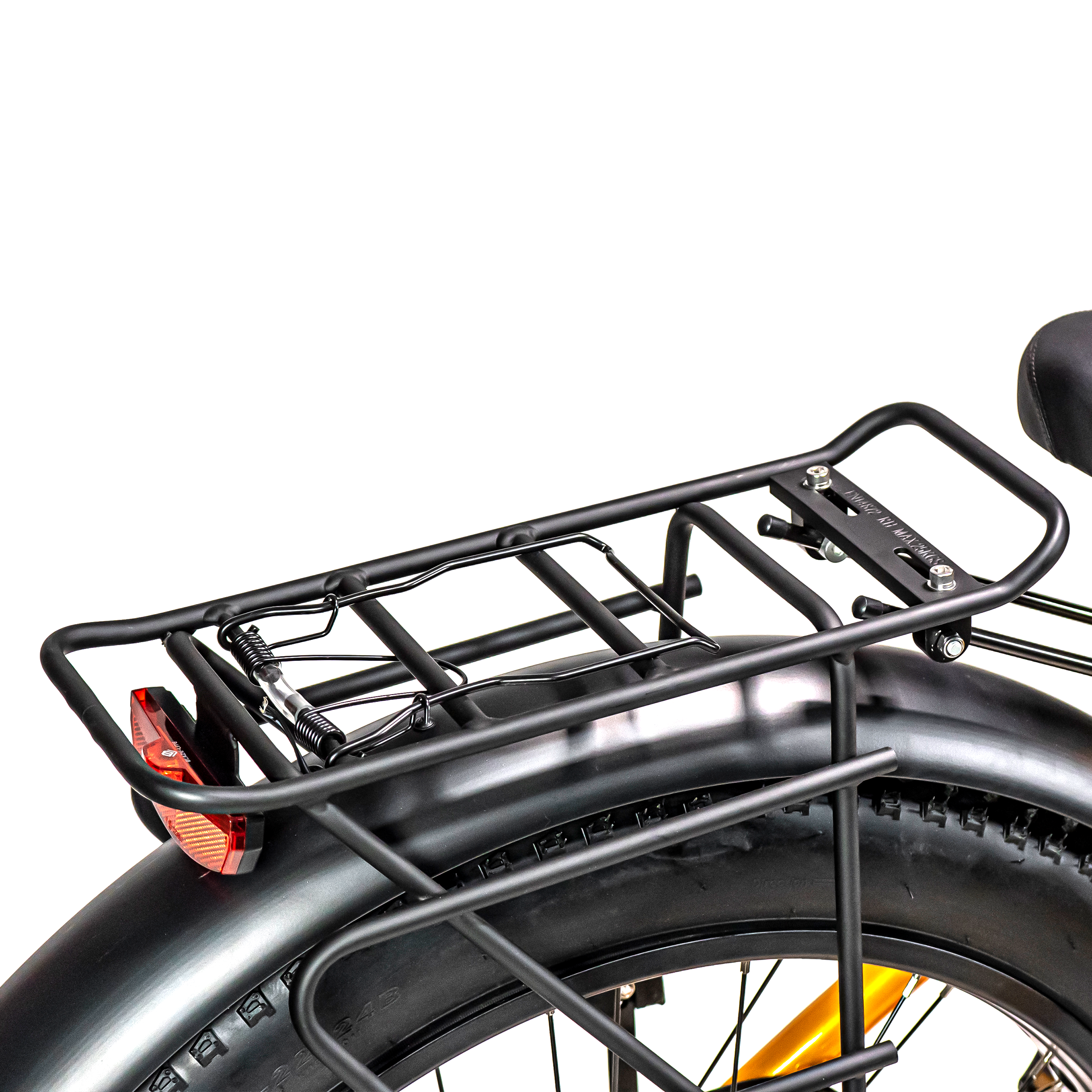

Front and rear fenders, rear rack, kickstand
Brake levers
Tektro adjustable w/brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
12mm thru
Battery sizes
Total capacity of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 19ah 988wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Black 36h 26" w/ round cutouts
Display
Dpc-18
Cassette
9 speed 12-36t cassette
Tire sizes
26x4", 27.5x3"
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms 44t chainring
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang ultra isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Tektro e350 dual-piston brakes w/ 160mm rotors
Saddle
Wide saddle
Other
Front and rear fenders, rear rack, kickstand
Brake levers
Tektro adjustable w/brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
12mm thru
Battery sizes
Total capacity of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 19ah 988wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Black 36h 26" w/ round cutouts
Display
Dpc-18
Cassette
9 speed 12-36t cassette
Tire sizes
26x4", 27.5x3"
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms 44t chainring
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang ultra isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Tektro e350 dual-piston brakes w/ 160mm rotors
Saddle
Wide saddle
Other
Front and rear fenders, rear rack, kickstand
Brake levers
Tektro adjustable w/brake cutoffs

Size & Fittings

1
Effective Top Tube Length
570mm 22.4in
2
Seat Tube Length (Classic Bike Size)
420mm 16.5in
3
Reach
460mm 18.1in
4
Stack
560mm 22in
5
Chainstay Length
510mm 20.1in
6
Standover Height
690mm 27.2in
7
Head Angle
71° -
8
Seat Angle
73.5° -
9
Head Tube Length
190 mm 7.5 in
10
Fork Length
530mm 20.9in
11
Front Center
700mm 27.6in
12
BB (Bottom Bracket) Drop
70mm 2.8in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1220mm 48in
15
Total Length
2000mm 78.7in
16
Max Seat Height
990mm 39in
17
Min Seat Height
830mm 32.7in
18
Handlebar Height
1120mm 44.1in
19
Weight (Without Battery)
33.1kg 73lb
1
Effective Top Tube Length
610mm 24in
2
Seat Tube Length (Classic Bike Size)
470mm 18.5in
3
Reach
480mm 18.9in
4
Stack
570mm 22.4in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
71° -
8
Seat Angle
73.5° -
9
Head Tube Length
190 mm 7.5 in
10
Fork Length
530mm 20.9in
11
Front Center
710mm 28in
12
BB (Bottom Bracket) Drop
70mm 2.8in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1240mm 48.8in
15
Total Length
2020mm 79.5in
16
Max Seat Height
1040mm 40.9in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1140mm 44.9in
19
Weight (Without Battery)
34kg 75lb
1
Effective Top Tube Length
630mm 24.8in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
500mm 19.7in
4
Stack
580mm 22.8in
5
Chainstay Length
510mm 20.1in
6
Standover Height
760mm 29.9in
7
Head Angle
71° -
8
Seat Angle
73.5° -
9
Head Tube Length
190 mm 7.5 in
10
Fork Length
530mm 20.9in
11
Front Center
720mm 28.3in
12
BB (Bottom Bracket) Drop
70mm 2.8in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1260mm 49.6in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
920mm 36.2in
18
Handlebar Height
1150mm 45.3in
19
Weight (Without Battery)
34.4kg 75.8lb
