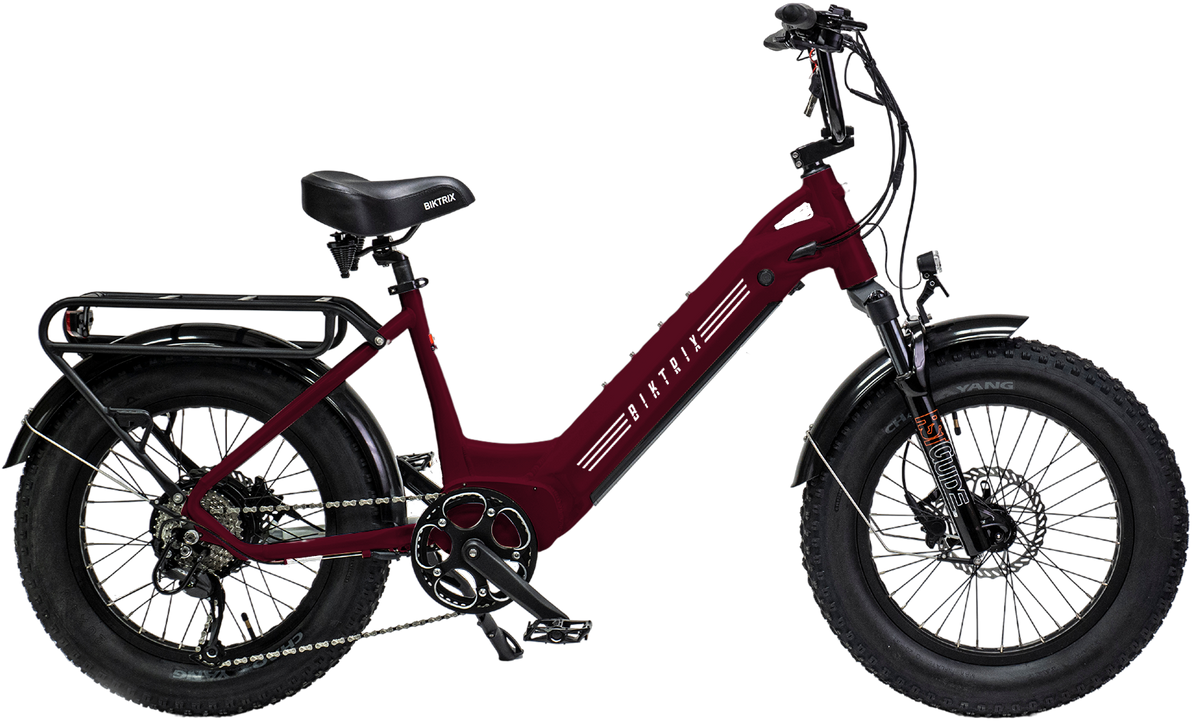

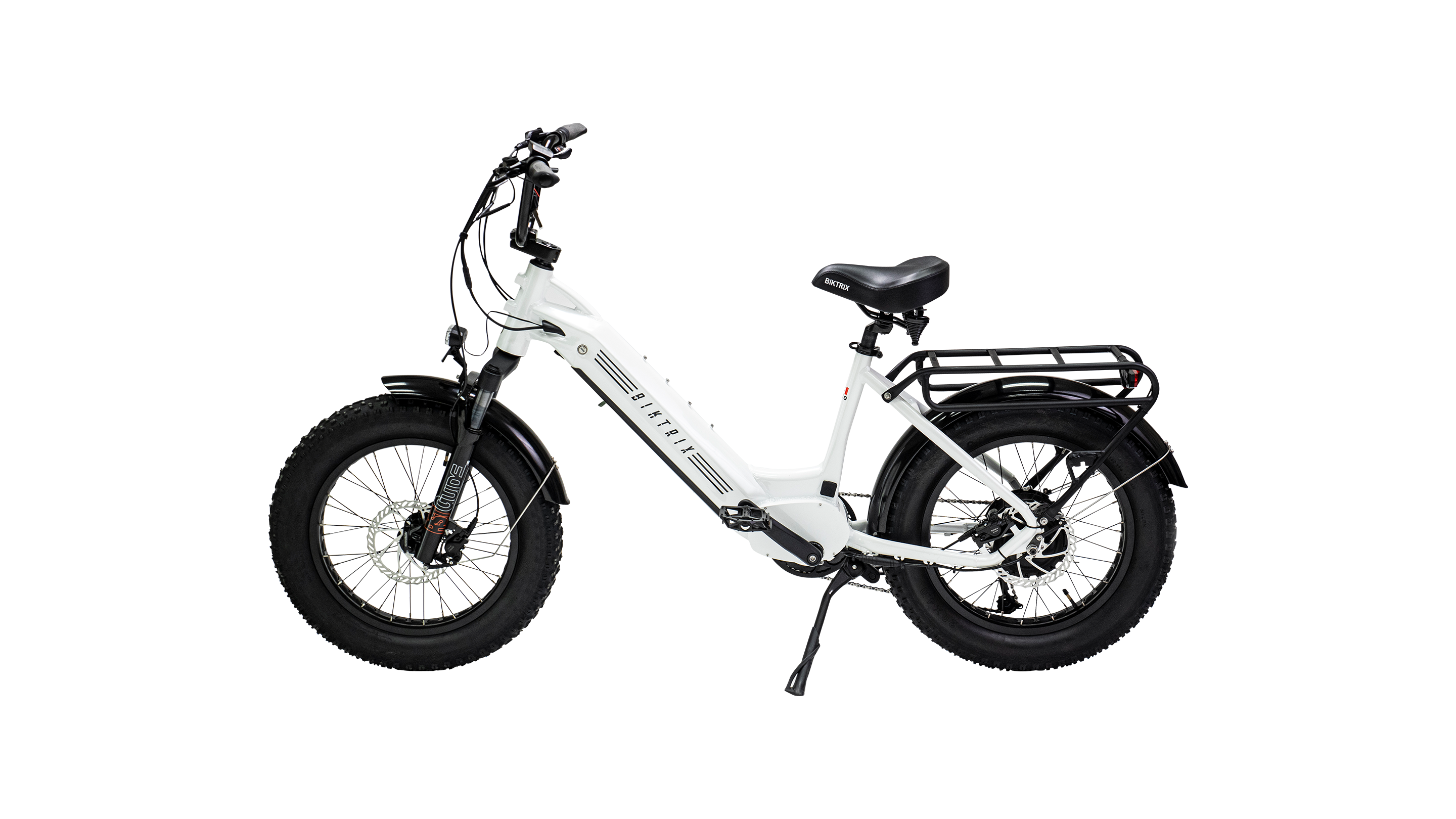

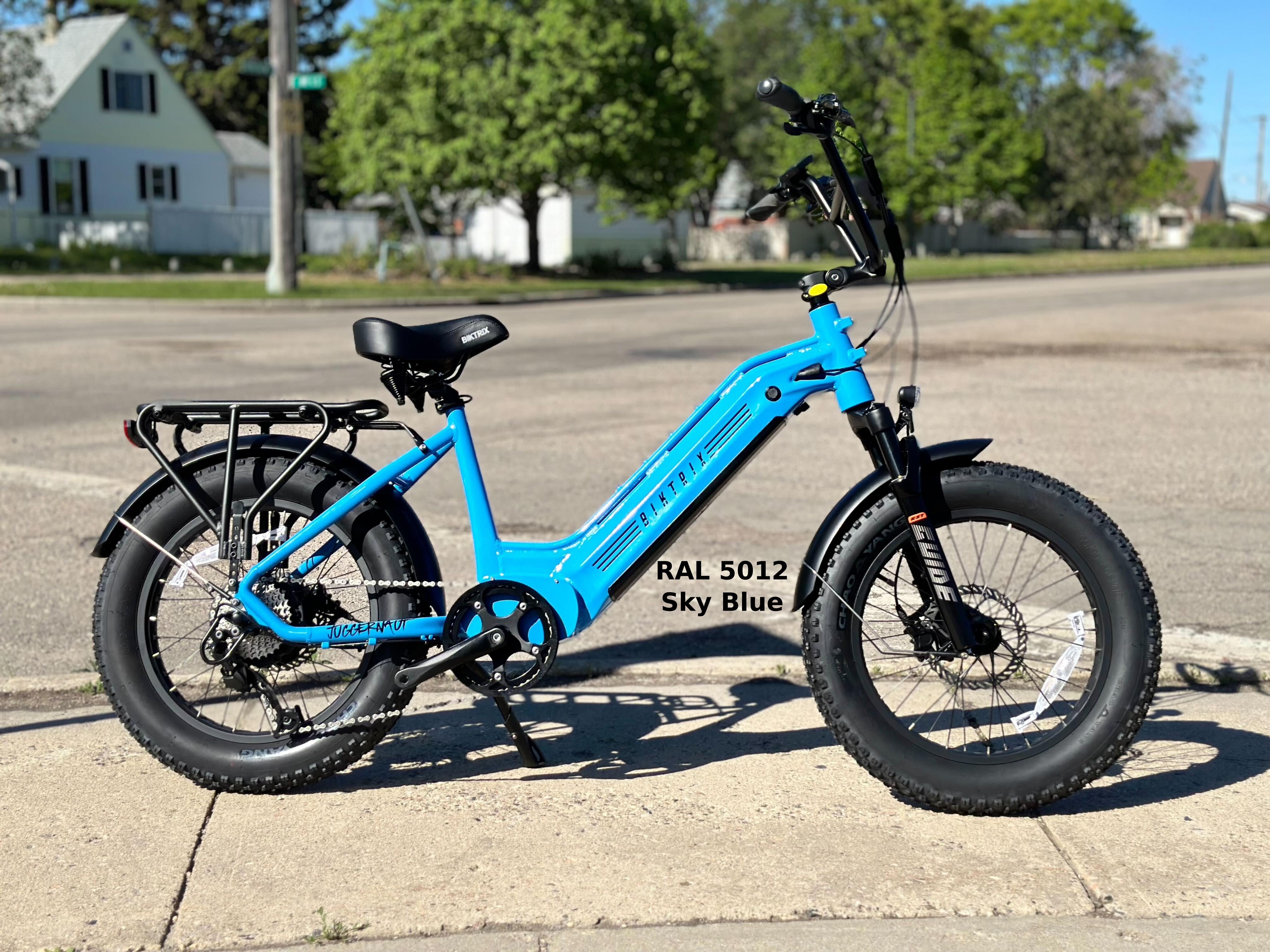

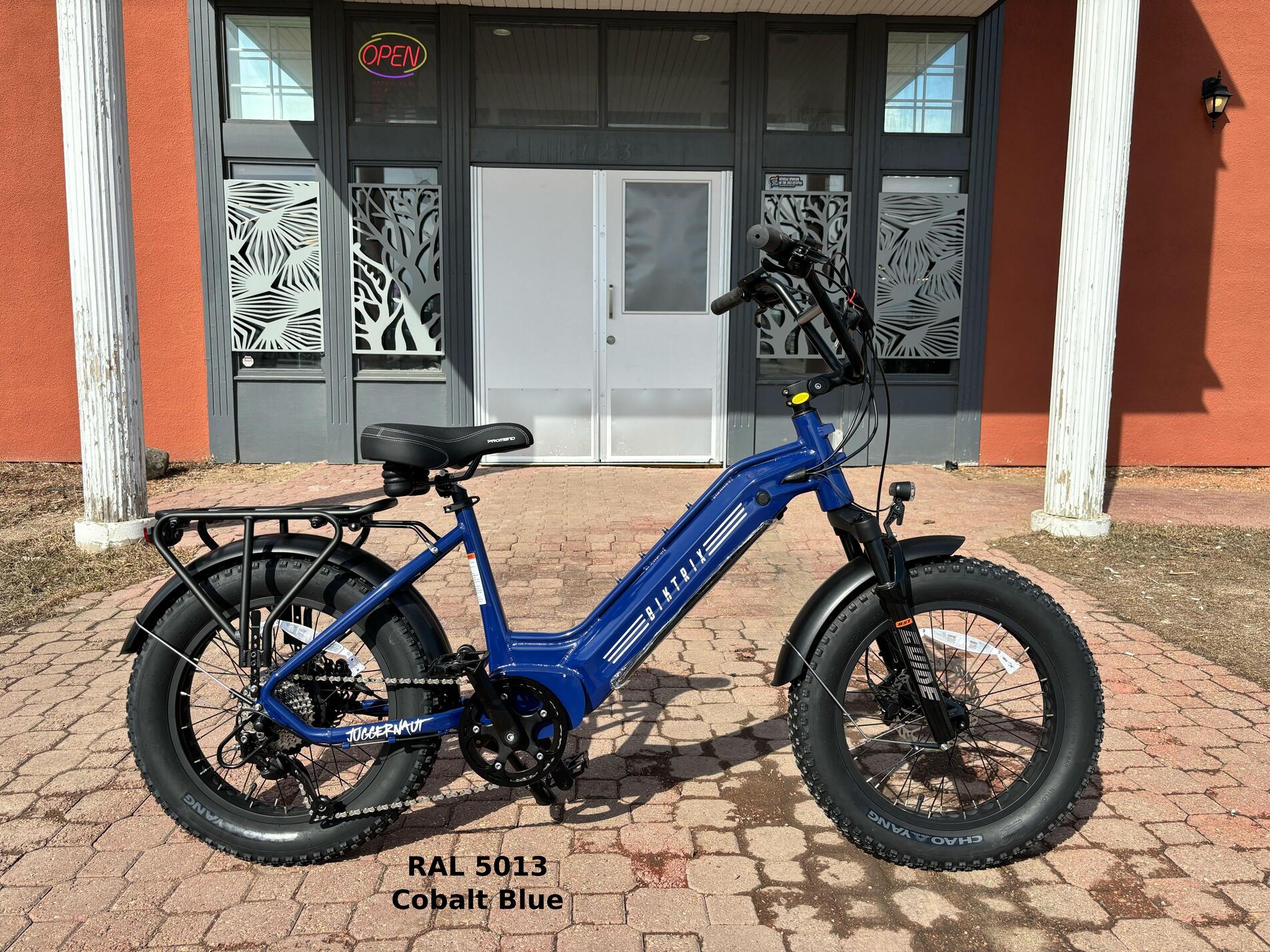

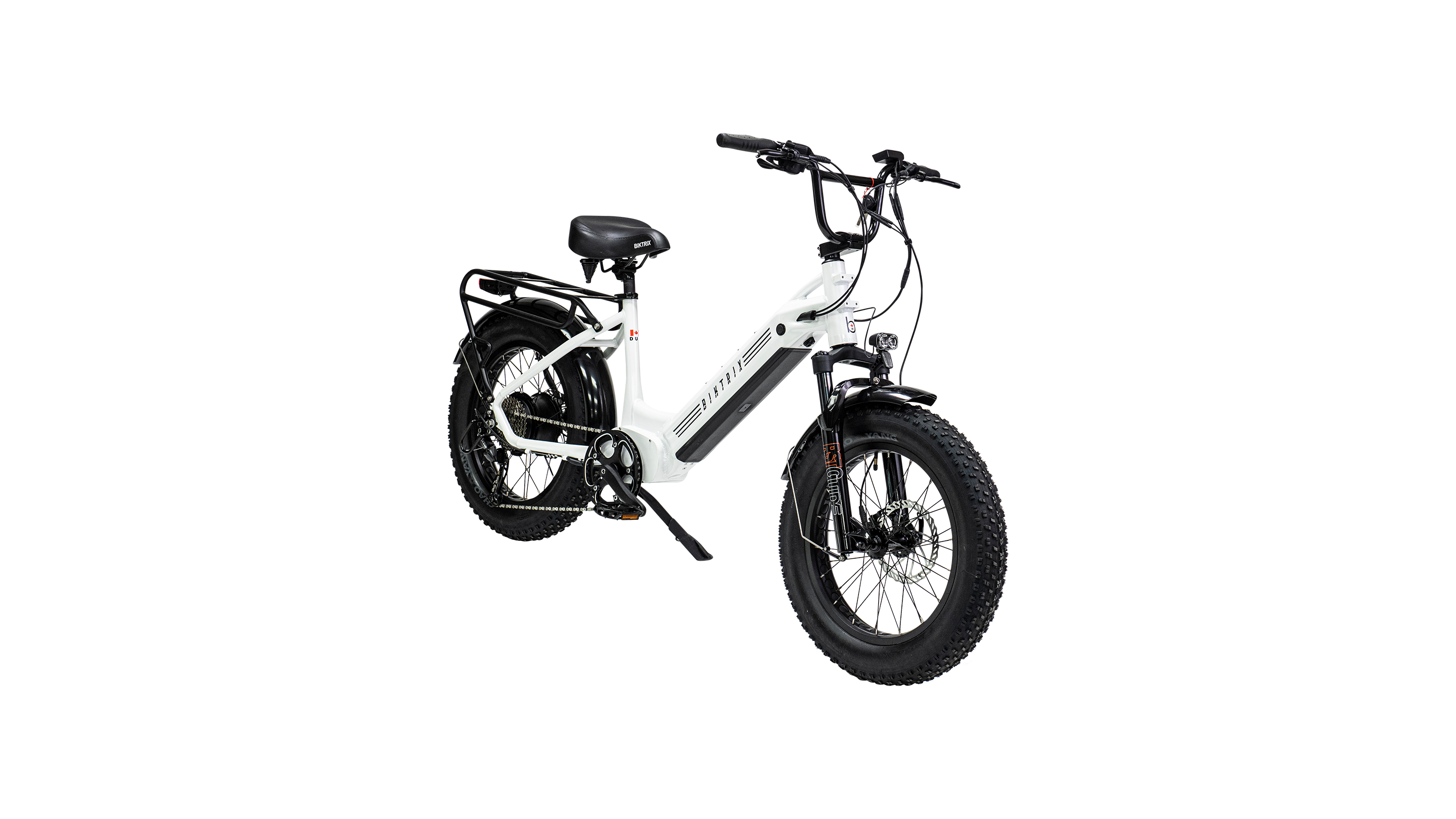

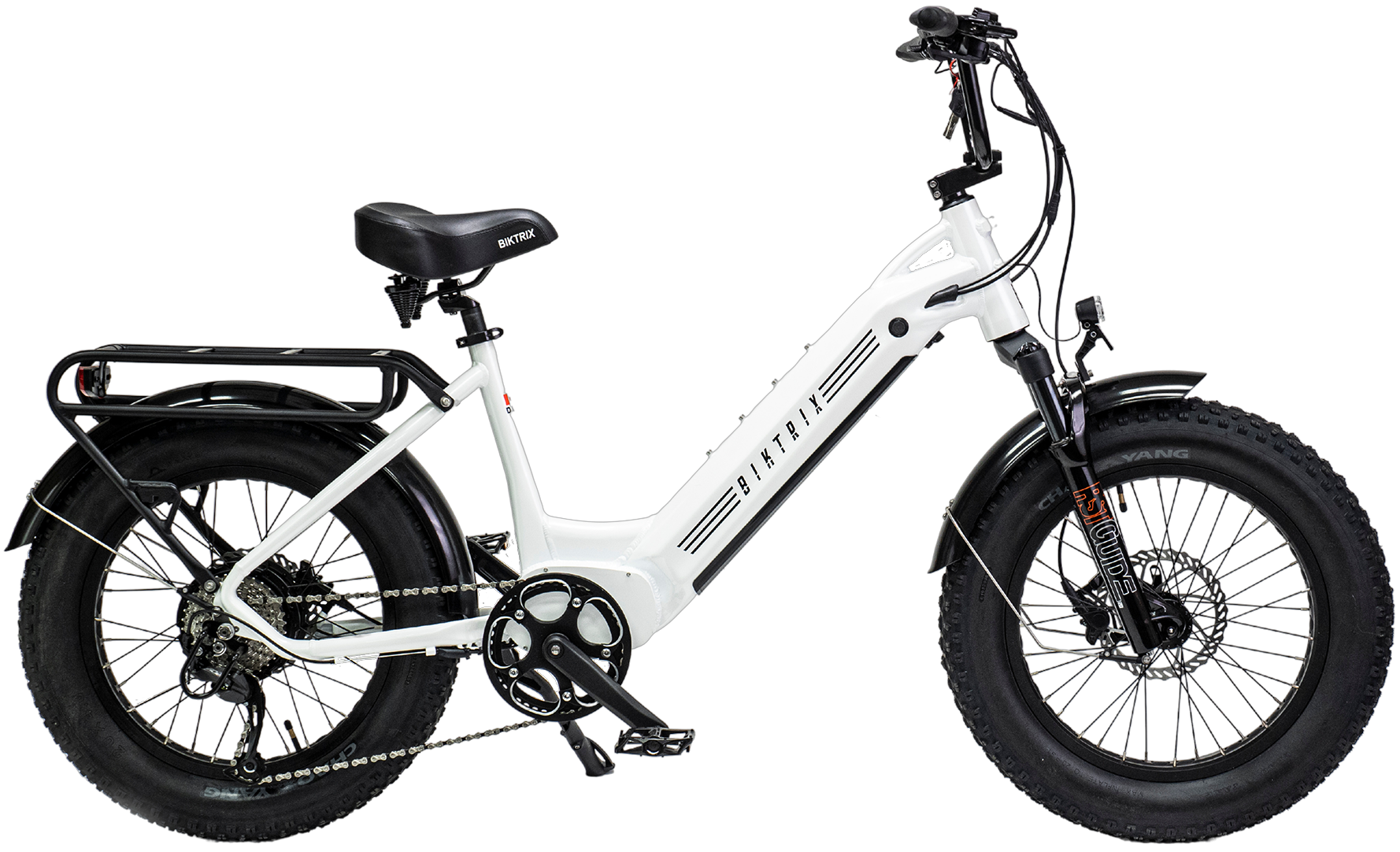

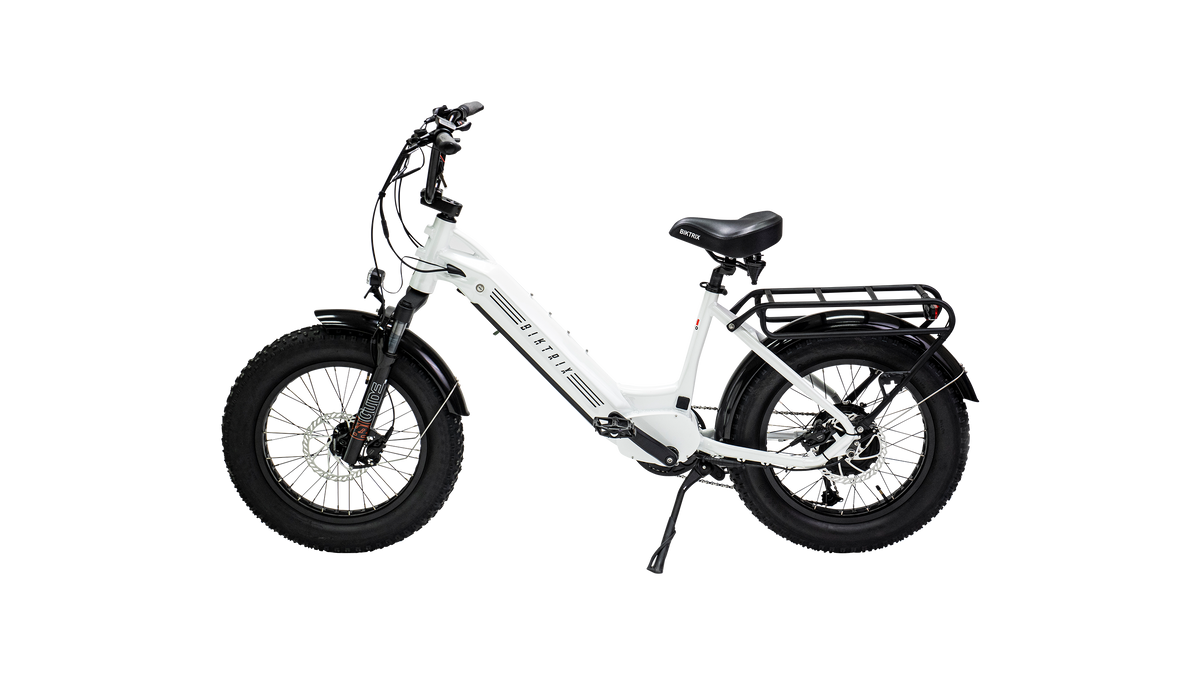

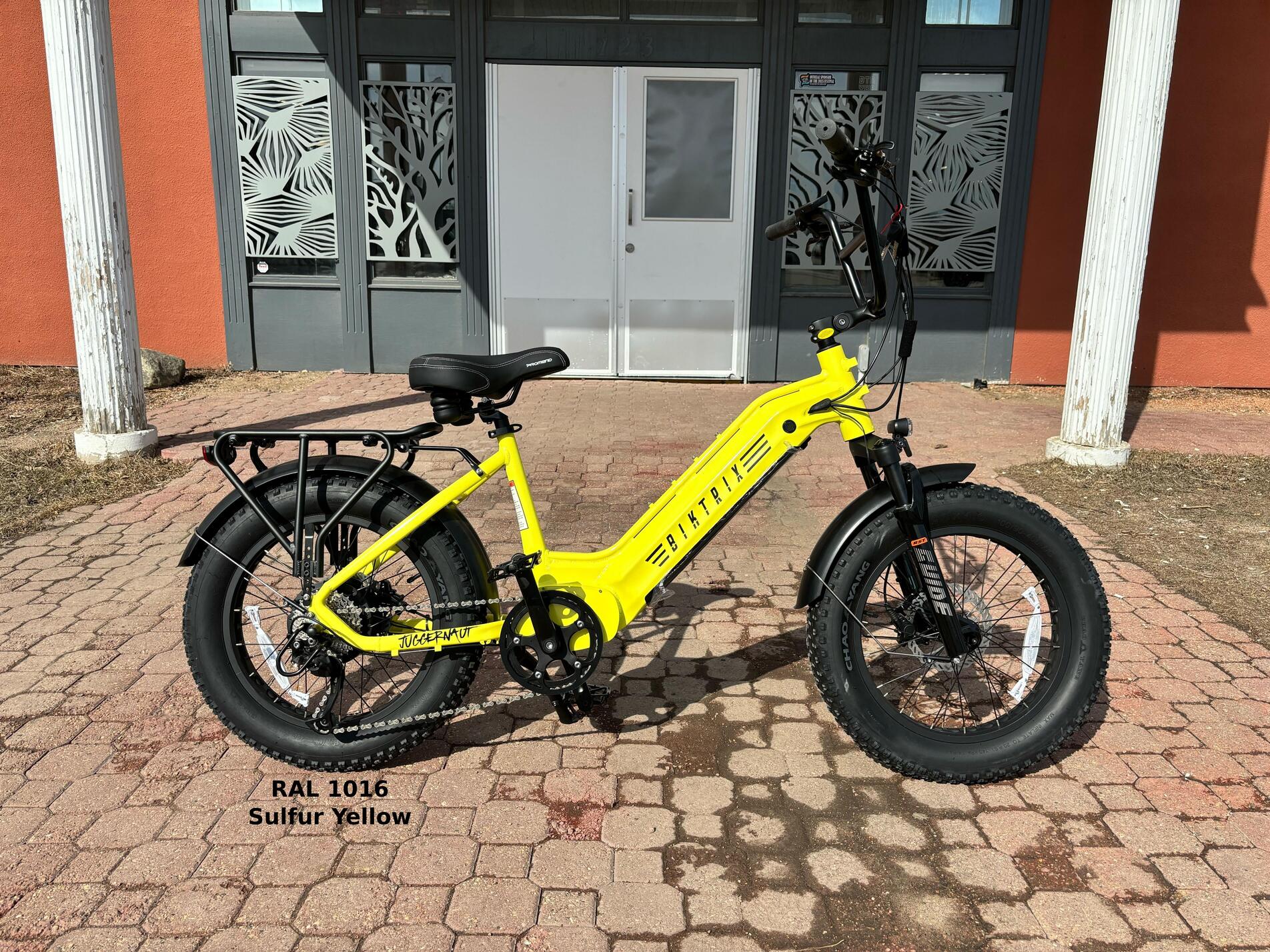

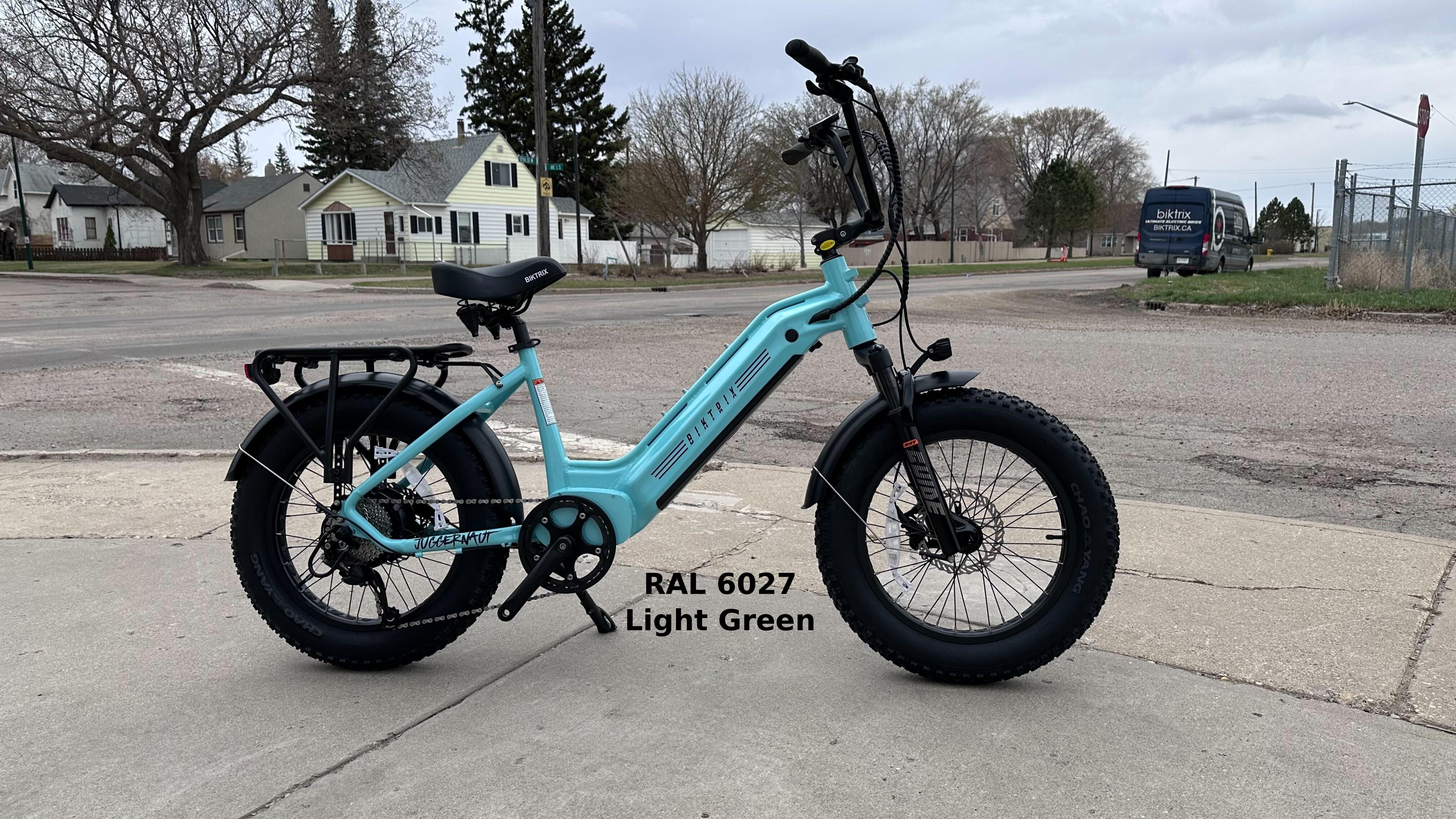

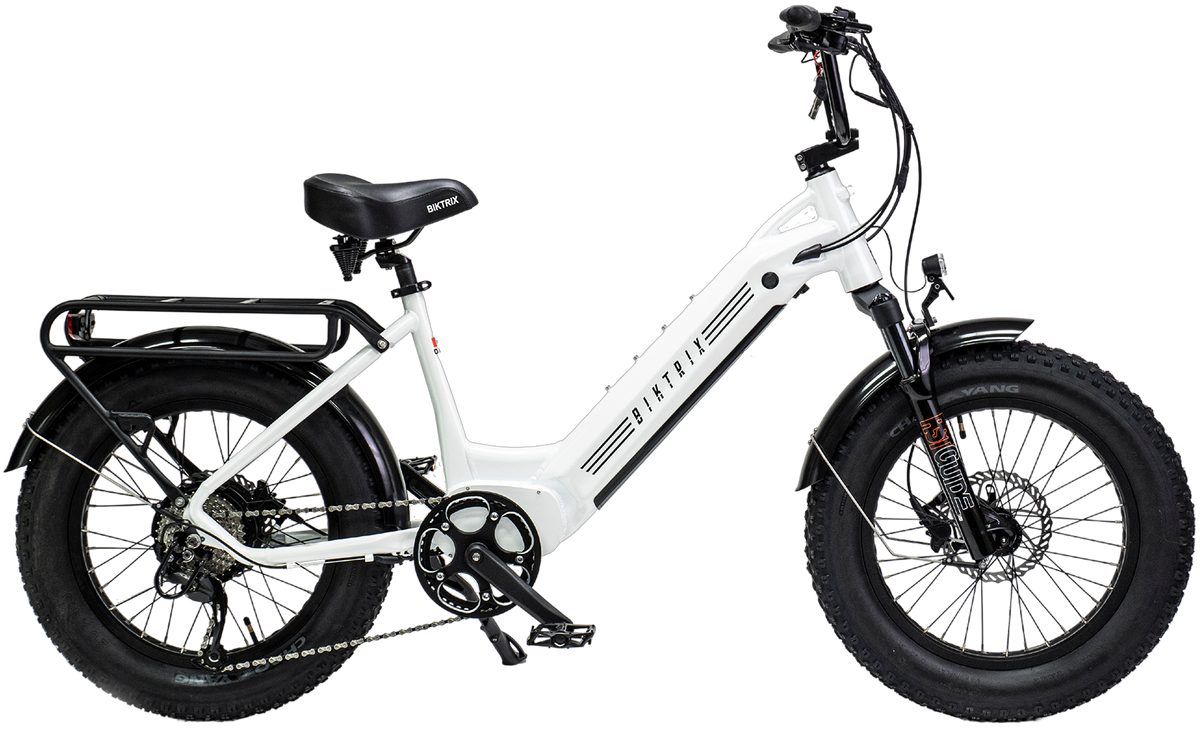

Juggernaut Hub Duo Small Step-Thru

Sale price$1,999.00 USD

We are sorry, but this product is currently sold out!

This model has now been replaced by Stunner LT 7. Check it today and enhance your riding experience!

Buy Stunner LT 7 Today

The Duo series. ebikes for everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

simple. capable. affordable.

The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

bells & whistles? you bet.

750W Hub Motor

The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.

Optional Range Extender

Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.

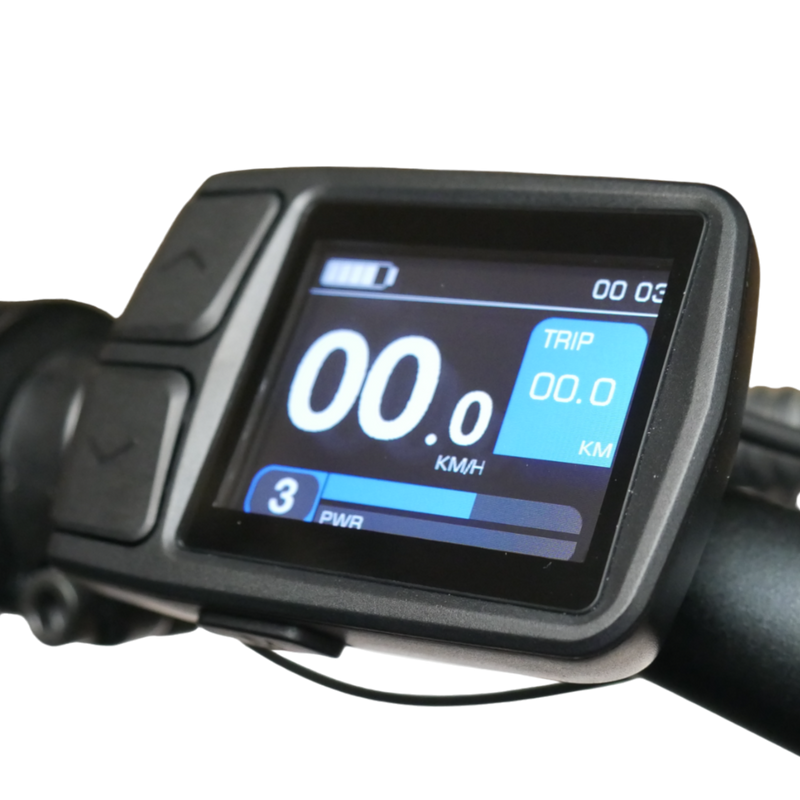

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.

Suspension Fork

The RST Guide fork provides 80mm of travelwith pre-load, lockout, and rebound adjustability

Drivetrain

From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

Rear Light

The bright red rear light helps you ride with more confidence at night.

Technical Specifications

Size & Fittings

1 Effective Top Tube Length 620mm 24.4in
2 Seat Tube Length (Classic Bike Size) 420mm 16.5in
3 Reach 520mm 20.5in
4 Stack 540mm 21.3in
5 Chainstay Length 430mm 16.9in
6 Standover Height 420mm 16.5in
7 Head Angle 67° -
8 Seat Angle 73° -
9 Head Tube Length 190 mm 7.5 in
10 Fork Length 430mm 16.9in
11 Front Center 830mm 32.7in
12 BB (Bottom Bracket) Drop 30mm 1.2in
13 Fork Offset 30mm 1.2in
14 Wheelbase 1220mm 48in
15 Total Length 1850mm 72.8in
16 Max Seat Height 950mm 37.4in
17 Min Seat Height 800mm 31.5in
18 Handlebar Height 1070mm 42.1in
19 Weight (Without Battery) 27.3kg 60.2lb

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
+1-866-BIKTRIX

Customer Reviews

Based on 80 reviews
73%
(58)
14%
(11)
4%
(3)
1%
(1)
9%
(7)
L
LEANNE
Excellent e-bike

We ordered an E bike from Biktrix after a visit to the Vancouver Biktrix store. Dillon answered all our questions about e bikes and after test riding the juggernaut hub duo we decided to order one. Two weeks later after having so much fun and seeing the quality of the bike we decided to order a second juggernaut hub duo so we can ride together. We are really enjoying our bikes and have yet to have any issues after a few weeks of riding. My husband and I would recommend anyone buying an electric bike to strongly consider a Biktrix E bike. Thanks to Dillon and Biktrix

C
Customer
this bike has exceeded all my expectations

ok, I'm neither young nor svelte. despite pulling off a 300km walk this year I decided to say farewell to my cool kid N^%#O city bike as I'm moved out to a rural area with lots of trails ranging from grassy game trails to crushed rock to pit run gravel roads and paved walkways close to my house. --I wanted a bike that would give me some exercise and allow me to do some off road exploring. I've had the hub duo stepover for about 6 weeks now and I remain quite astounded. it's heavy for sure and you need some adjustment time with the weight-- but once you get used to it it is remarkable. I'm regularly doing a 25-30 km route of bush, road, small hills and one BIG hill out of the river valley. each time I'm using maybe 25% of the charge--maybe. it's capable of faster than I want to go and I've responded by upgrading my helmet. I'd not hesitate for a moment at a 75km ride. I test drove a bunch and value wise the juggernaut just stands way out. --probably $1K less than comparable bikes I looked at . I've had no quality concerns whatsoever. This bike is just a mess of fun too. Occasionally accellerating uphill using the throttle is a hoot

g
gerret durland
great bike

I have about 160 miles on the bike after a few weeks, all dirt roads, and the bike is everything I need.I like the torque sensor a lot, 27.5 x 3 tires are perfect for me, wish the display screen was a bit larger but good enough, and will eventually put on a twist throttle that I had on a previous, non Bixtrix bike. All in all great bike. I thoroughly studied all bikes in this price range and and happy I got this one!

L
Lars Rogers
Awesome Bike

We have had our bikes for a few weeks now!! Great addition!! The assist allows my wife and I to ride together at the same speed for long distances. The fat tires handle grass and gravel well for when I have to go off road to check fence and cattle. The front rack is great!! Lots of power for climbing the big hills, even on grass!!! One design flaw, the front light mount hits the bottom of the basket due to the shock travel. If you don't remount it and relocate it, you will break the front light mount like I did!! Biketrix may want to move the front light mount or issue a warning if you are adding a front basket.

L
Larry Gamble
Pleased

This is my second bike from Biktrix. First was a challenger and this is a jugger duo. Need more time to ride the jugger as my challenger seems better. Comfort and throttle is on correct side. Me and the jugger will be okay as I put a twist throttle on the right side. Tks

D
David Hobkinson
Phenomenal Bike

The hub duo step-thru small is a perfect fit for my 5” 2” wife, it has plenty of power to tackle the local man made hill and an incredible range. The support i got (Via E-Mails) from the biktrix team was outstanding, answering all of my questions within 1 working day of asking, and the delivery was very timely.
Thank you all at Biktrix.

D
DOUG MOROZ
Great looking bike

Unfortunately I’m unable to give review as the bike came just as the snow and cold weather showed up. Bike looks great and the contact with Biktrix was positive. The weather is supposed to moderate some at the end of the week and I’ll take the bike out in the snow and give a review after a ride

S
Steven Schmidt
New hub duo

Short version,a10 + . Long version battery cover was off on arrival and fell off on my first ride. It is now taped in place and needs a permanent fix. Thumb throttle is an on/off switch. Can I just unplug. I twist throttle would be better. To summarize, riding is a blast. Steve

P
Patrick Murtagh
Juggernaut

Excellent so far. Sometimes I have questions not answerable via
Video and require a Bike tech to walk me through
