Juggernaut HD Limited Custom

Sale price $2,799.00 Regular price$3,099.00
Save $300

We are sorry, but this product is currently sold out!

However, if you are still interested, please fill the form below and we will notify you when we are back in stock.

Sale price $2,799.00 Regular price$3,099.00
Lifetime Support
14 Days Return
Custom Built

Technical Specifications

frame

6061 aluminum

front hub

150mm 36h thru

seat post

30.4mm

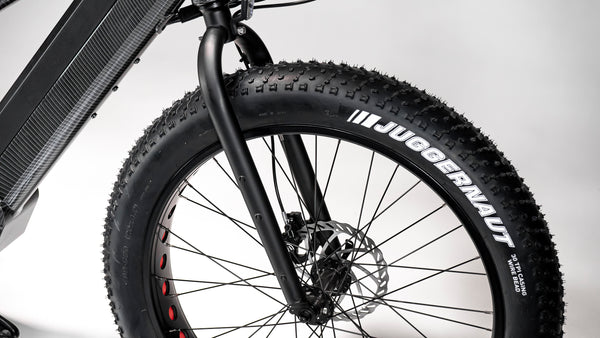

fork

Rigid/biktrix inverted

front axle

15mm thru

seat post clamp

Qr

headset

Threadless 1-1/8 1-1/2 tapered

rear hub

197mm 36h thru

motor

1000w bbshd mid-drive

shifter rear

Shimano deore 10 speed trigger/sram nx 11 speed trigger

rear axle

12mm thru axle

battery sizes

48v17ah, 48v21ah, 48v25ah, 52v17.5ah

rear derailleur

Shimano deore 10 speed/sram nx 11 speed

rims

Black 26x4" 80mm 36h

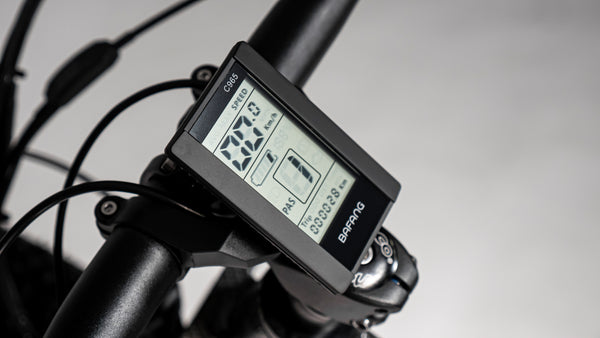

display

C965

cassette

Shimano 11-34t/sram 11-42t

tire sizes

26x4", 27.5x3"

lights

Integrated headlight

chain

10 speed/11 speed

handlebar

31.8mm clamp, 760mm wide, 20mm rise

assist type

Cadence

crank set

180mm arms 46t chainring, no chainguard

stem

80mm aluminum

assist levels

0-5 (0-3, 0-9)

bottom bracket

Bafang 68mm square taper

grips

Slide on

throttle

Thumb throttle

brakes

Tektro dorado e725 quad-piston/magura mt5e quad-piston w/180mm rotors

saddle

Narrow saddle

other

Kickstand, no fenders or rack, decals optional

brake levers

Tektro dorado/magura mt5e

Size & Fittings

1 Effective Top Tube Length 570mm 22.4in
2 Seat Tube Length (Classic Bike Size) 480mm 18.9in
3 Reach 400mm 15.7in
4 Stack 660mm 26in
5 Chainstay Length 510mm 20.1in
6 Standover Height 700mm 27.6in
7 Head Angle 61° -
8 Seat Angle 72° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 440mm 17.3in
11 Front Center 670mm 26.4in
12 BB (Bottom Bracket) Drop 80mm 3.1in
13 Fork Offset 0mm 0in
14 Wheelbase 1190mm 46.9in
15 Total Length 1900mm 74.8in
16 Max Seat Height 1050mm 41.3in
17 Min Seat Height 840mm 33.1in
18 Handlebar Height 1090mm 42.9in
19 Weight (Without Battery) 25.8kg 56.9lb
