Juggernaut HD Limited

Sale price$0.00 USD

We are sorry, but this product is currently sold out!

However, if you are still interested, please fill the form below and we will notify you when we are back in stock.

Overview

IN STOCK AND SHIPPING

✔️ ​1000W Bafang BBSHD Mid-drive Motor
​✔️ ​160Nm of torque for easy to moderate hills
​✔️ ​300lb load capacity
​✔️ ​On-Demand throttle makes pedaling optional
​✔️ ​Cadence sensor makes pedal assist smooth and powerful
✔️ ​Includes 48V 17.5Ah 840Wh battery + charger

Tough with a rigid-fork, performance drivetrain.

"Greatest Toy EVER! Exceeded my expectations. Smooth ride, great range, attentive customer support." - Stephen

"Juggernaut HD Limited is the only E Bike you should buy period!
Superior quality, service and customer care feedback has been over and beyond professional.
Do not waste your money on anything else out on the market. I researched for 3 months and read every review on almost every E bike out there. Trust me you will be happy you bought from Biktrix!!!
Actually ordering (2) more for Christmas presents!" - Steve A.

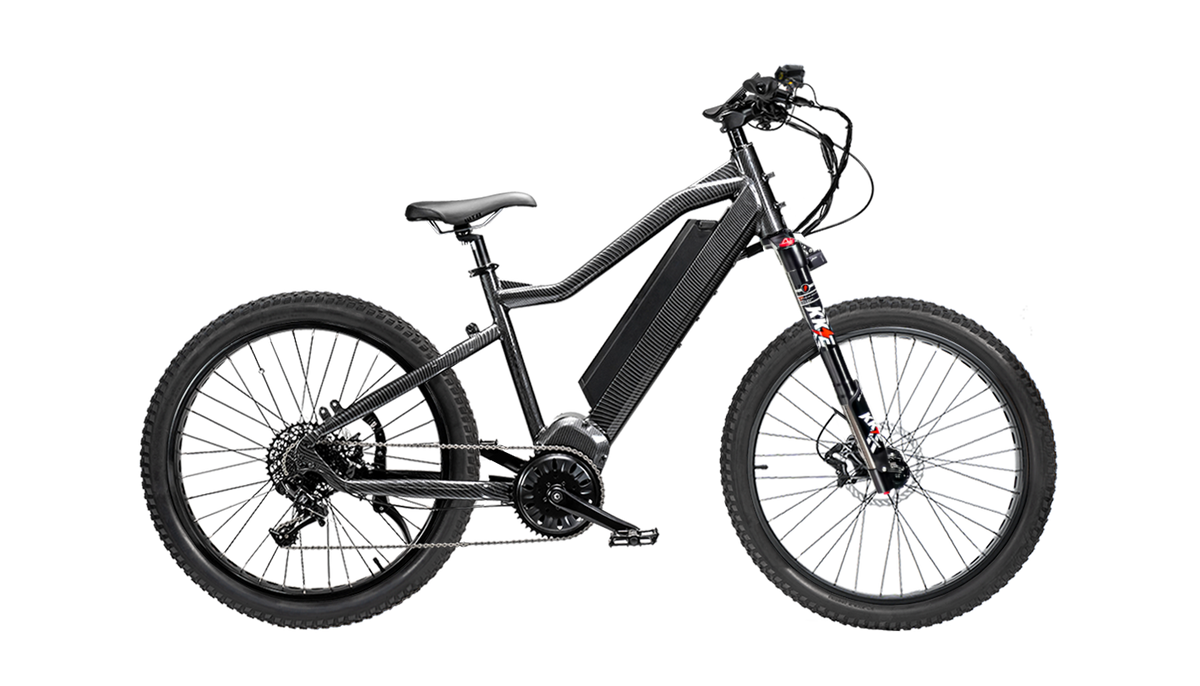

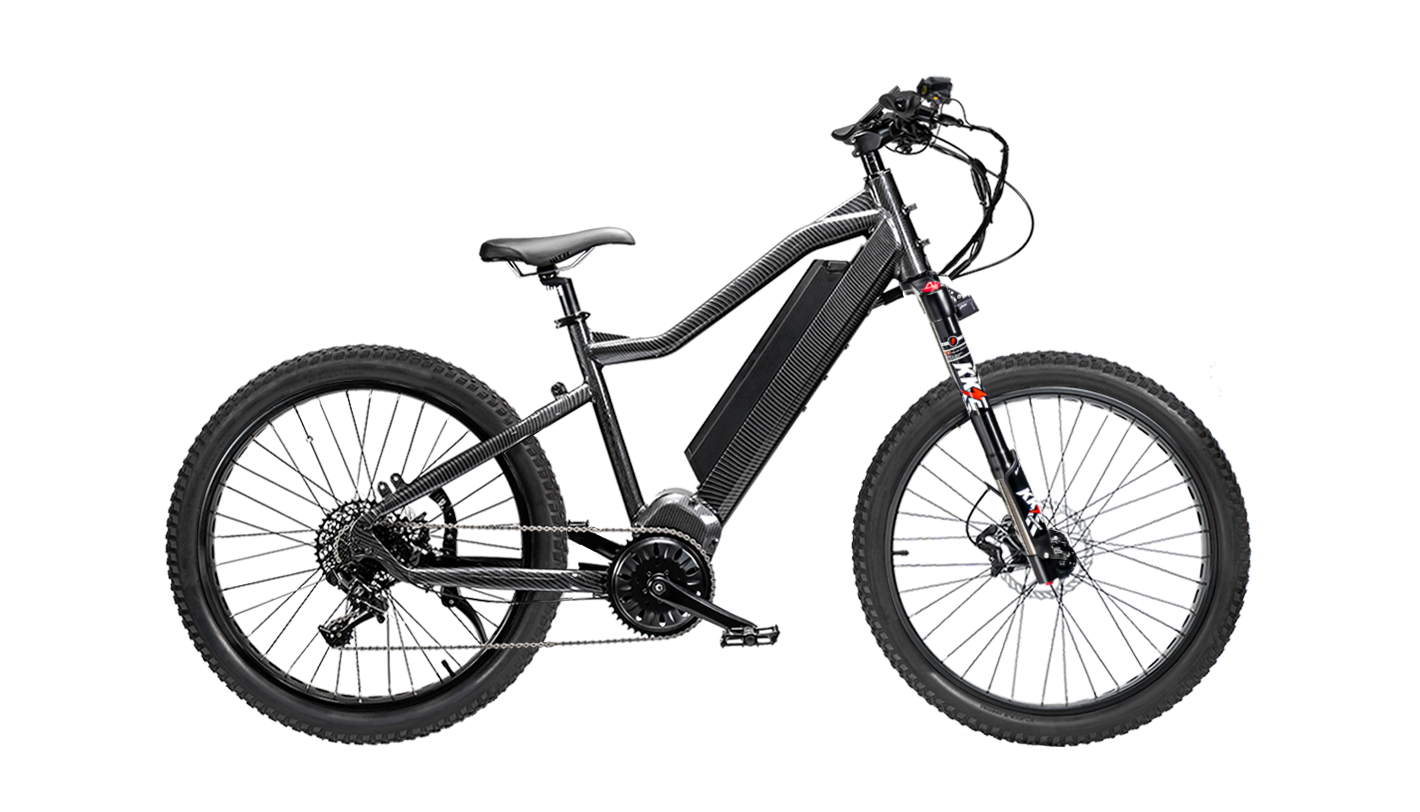

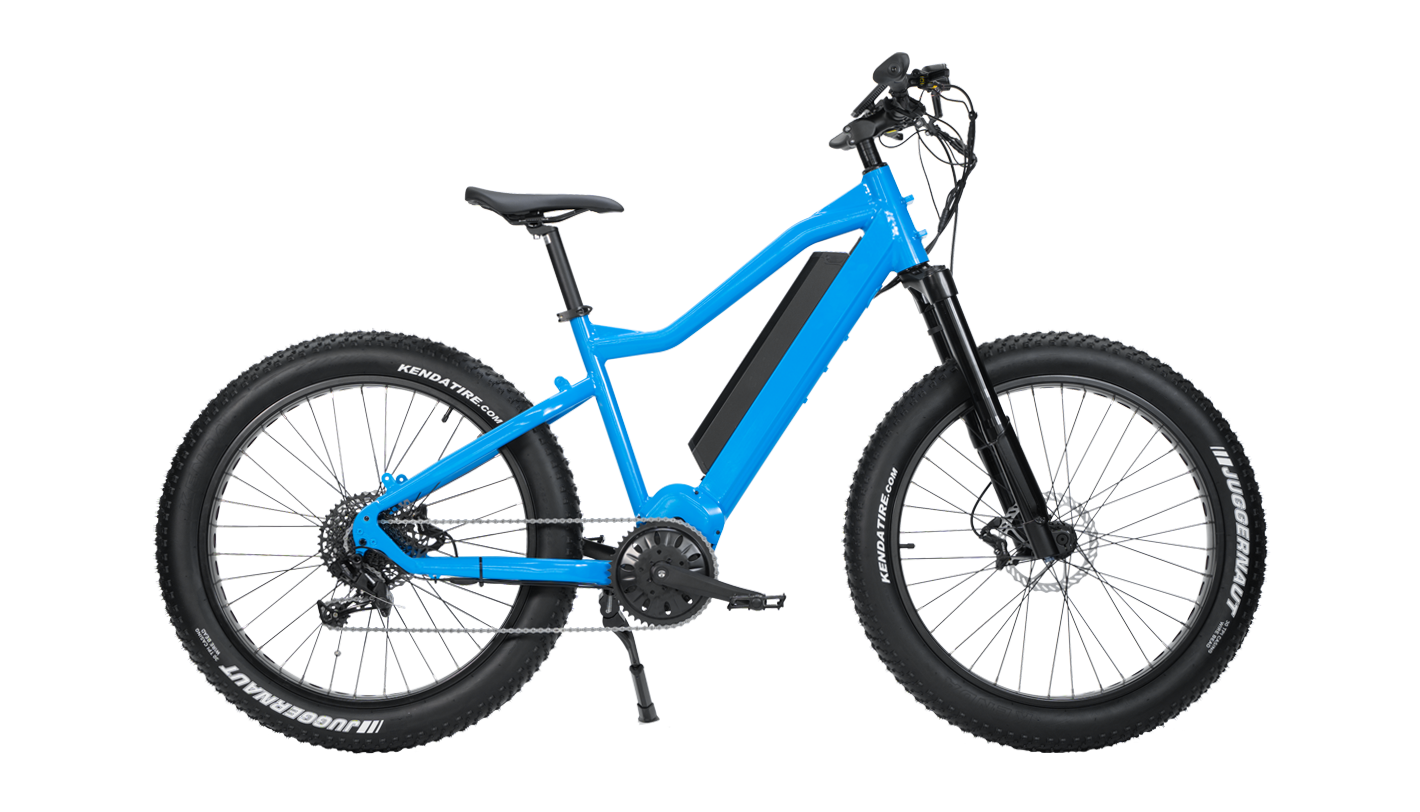

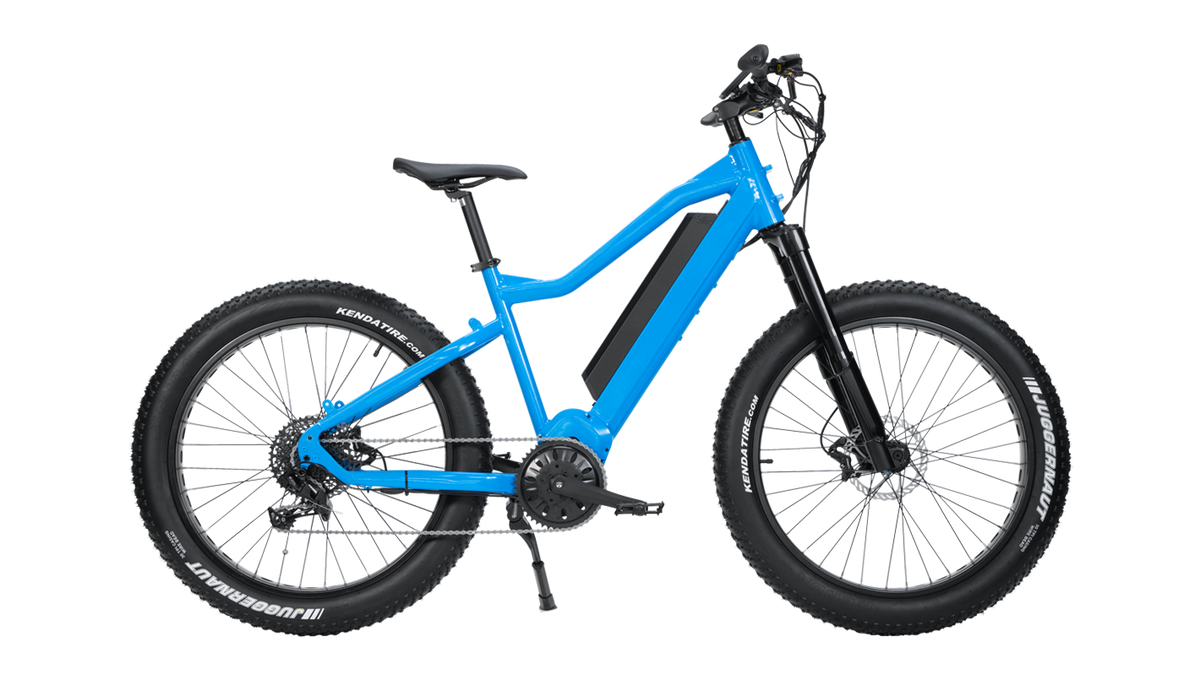

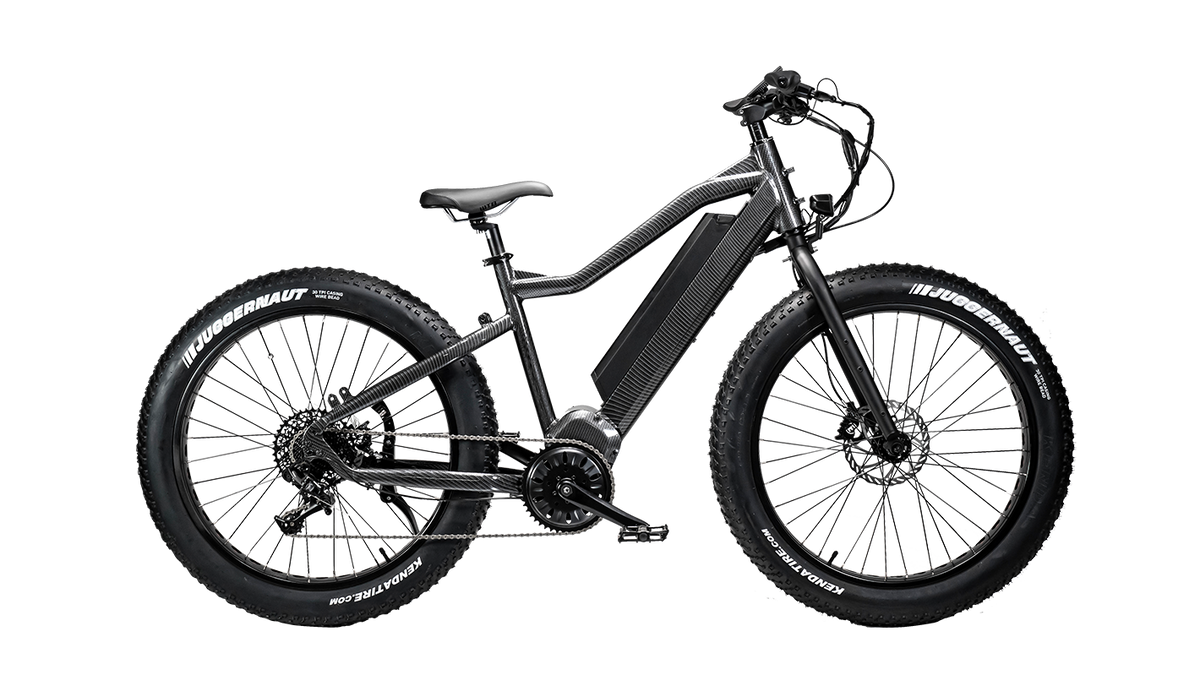

juggernaut hd limited

With a 1000W Bafang mid-drive motor, the HD Limited is a powerful machine.

product features

Carbon Fiber Frame

The super-lightweight carbon fibre frame delivers supreme agility and unmatched power-to-weight-ratio.

1000W Mid-Drive Motor

With the powerful 1000W Bafang BBSHD mid-drive motor, every ride is downhill with a tailwind!

Rigid Fork

This rock solid rigid fork provides optimal power transfer and speed!

Drivetrain

Whether you're climbing steep hills or reaching top speed on the flats, the 11-speed SRAM GX drivetrain will keep you moving!

Quad Piston Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These high-end hydraulic disc brakes will quickly and reliably bring you to a halt.

Removable 48V Battery

Twist a key to unlock your lithium-ion battery to take it off the bike. Select from 3 sizes of batteries that fit the same frame.

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.

Thumb Throttle & Control Pad

With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Technical Specifications

Size & Fittings

1 Effective Top Tube Length 570mm 22.4in
2 Seat Tube Length (Classic Bike Size) 480mm 18.9in
3 Reach 400mm 15.7in
4 Stack 660mm 26in
5 Chainstay Length 510mm 20.1in
6 Standover Height 700mm 27.6in
7 Head Angle 61° -
8 Seat Angle 72° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 440mm 17.3in
11 Front Center 670mm 26.4in
12 BB (Bottom Bracket) Drop 80mm 3.1in
13 Fork Offset 0mm 0in
14 Wheelbase 1190mm 46.9in
15 Total Length 1900mm 74.8in
16 Max Seat Height 1050mm 41.3in
17 Min Seat Height 840mm 33.1in
18 Handlebar Height 1090mm 42.9in
19 Weight (Without Battery) 29.9kg 65.9lb

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
+1-866-BIKTRIX

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kenton Kusch
limited bike

loving the bike, the power, the torque
the shifting is great. it protects the drive train, looks and feels awesome
