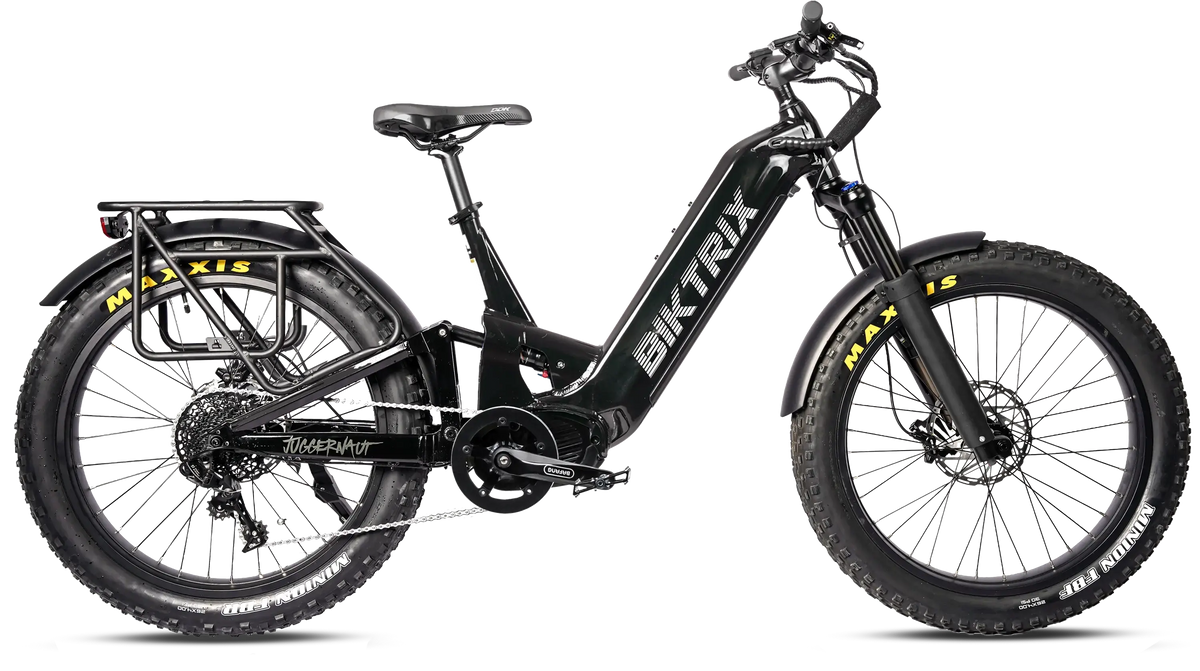

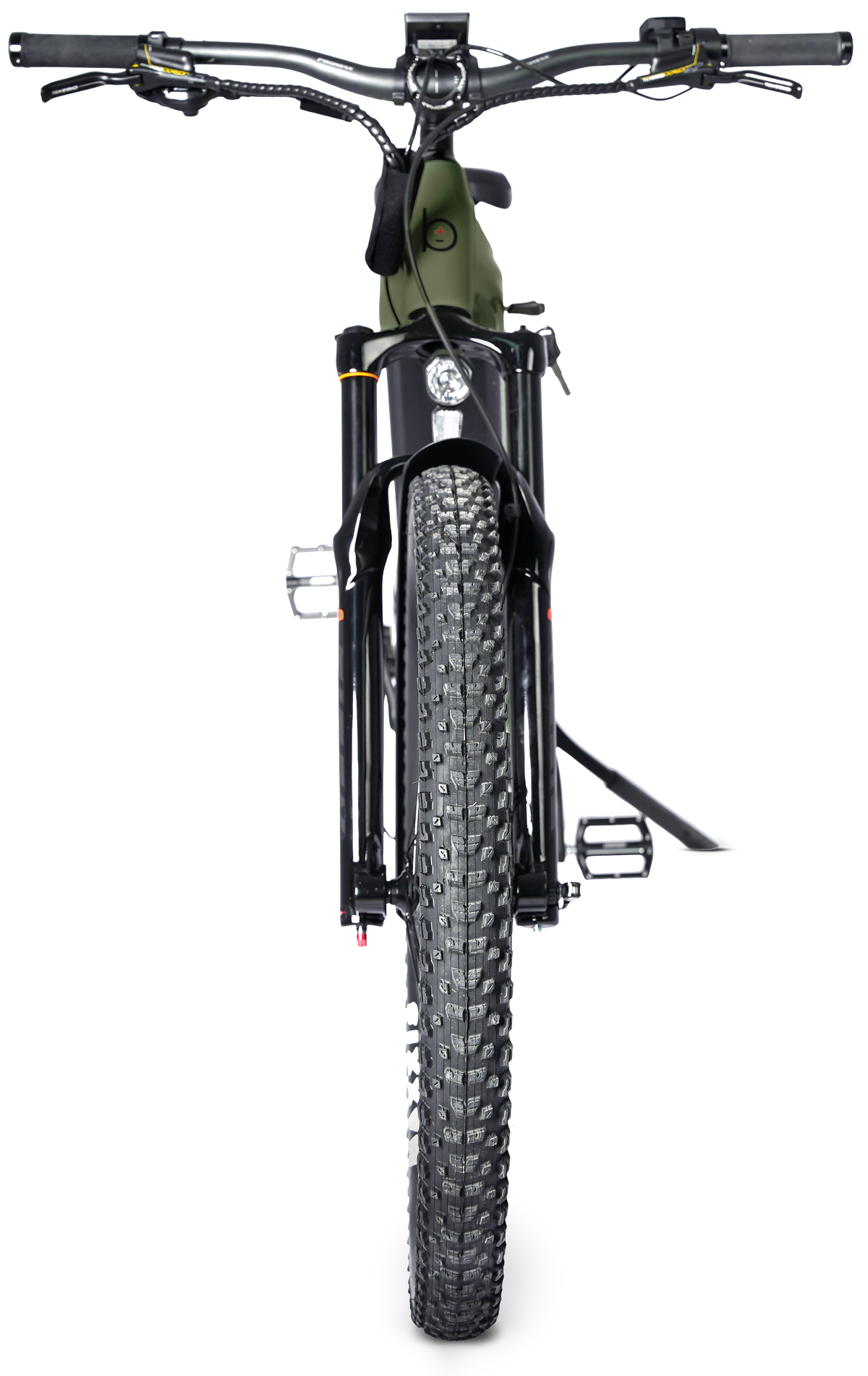

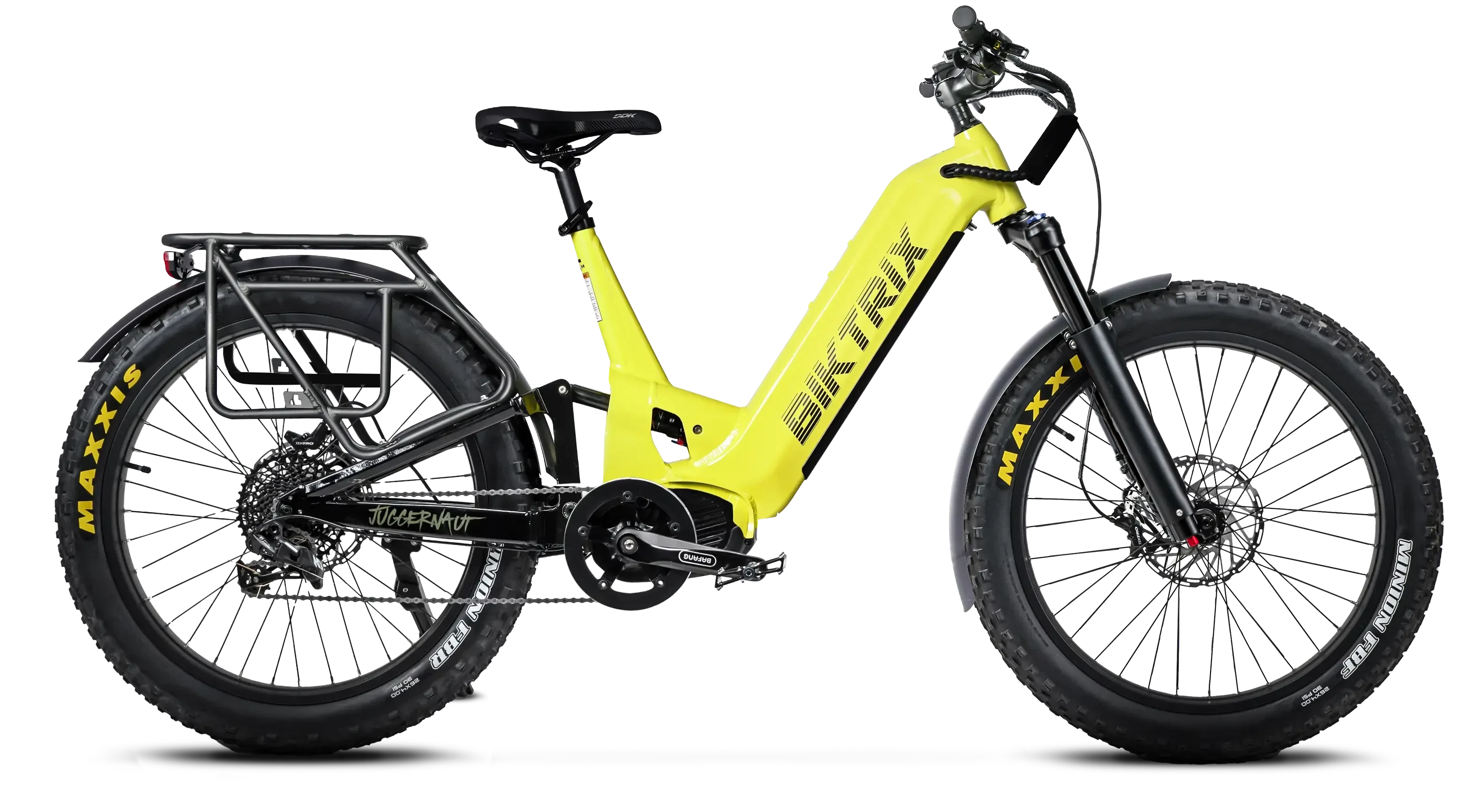

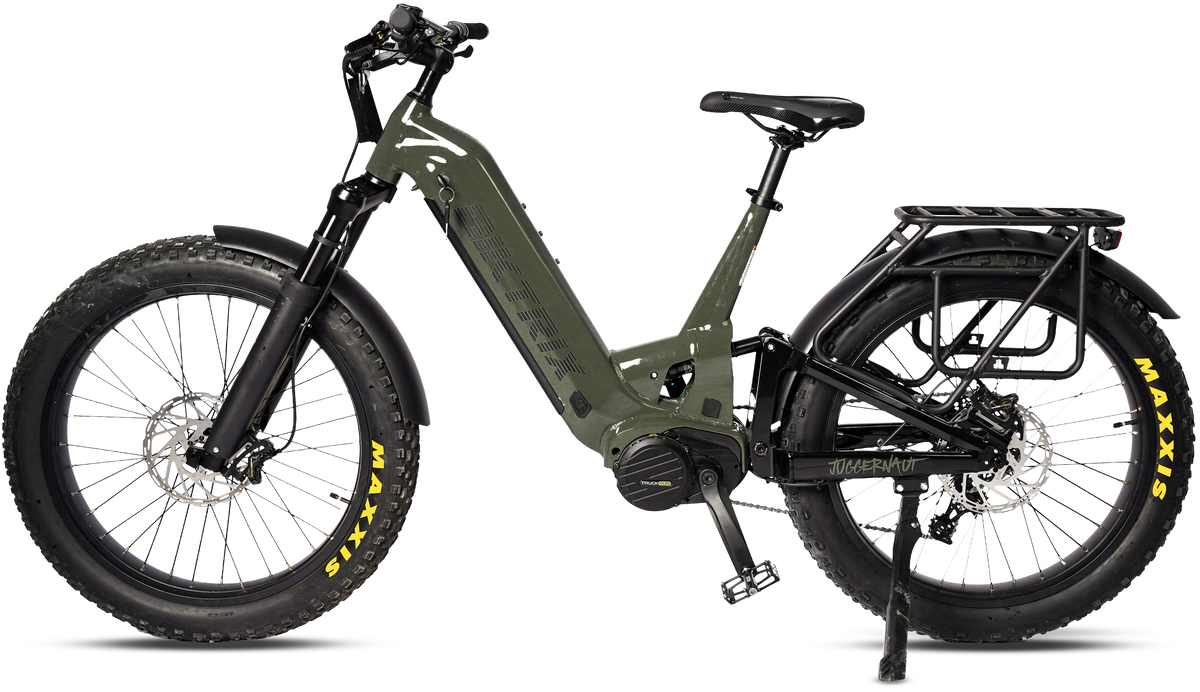

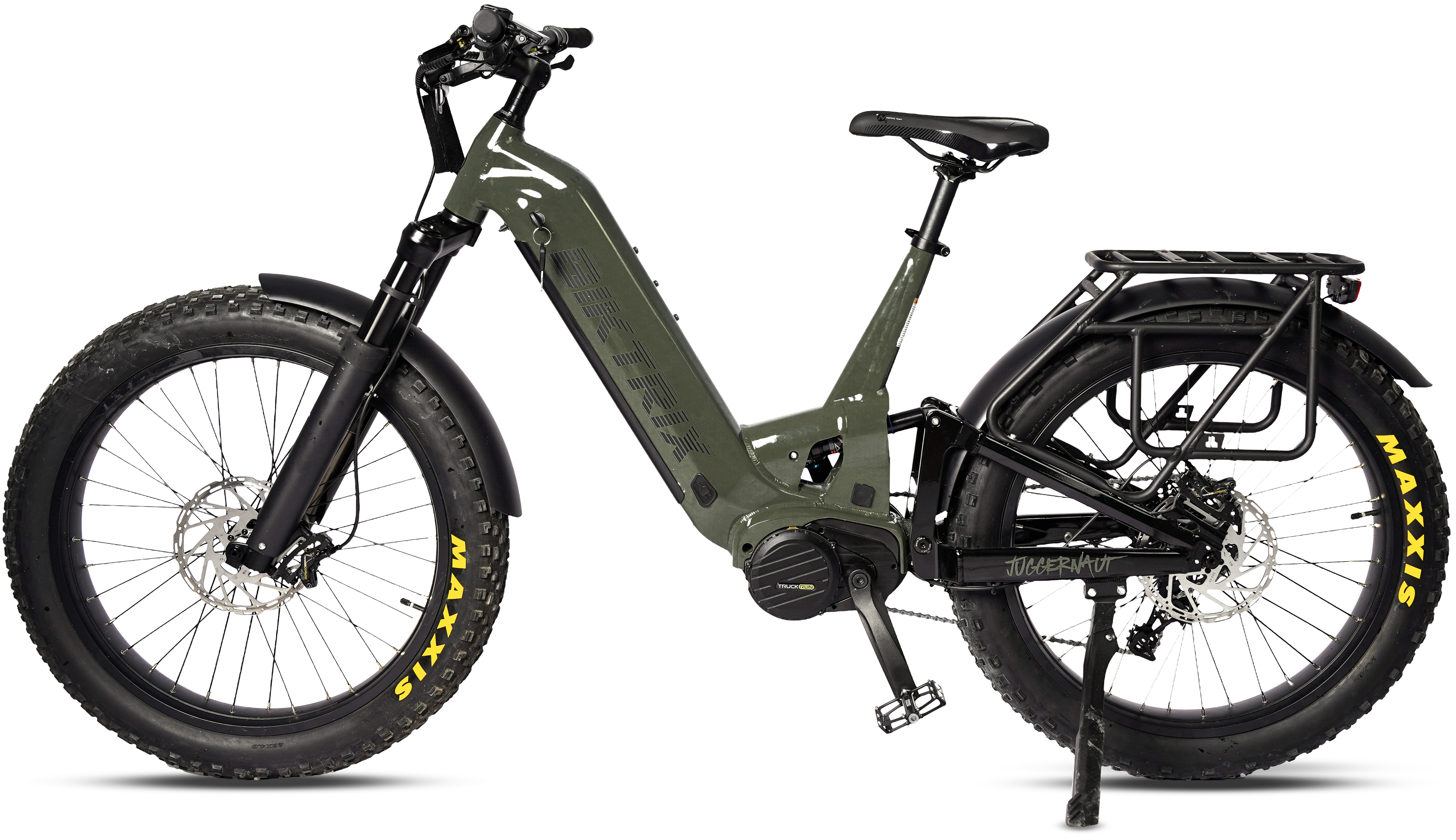

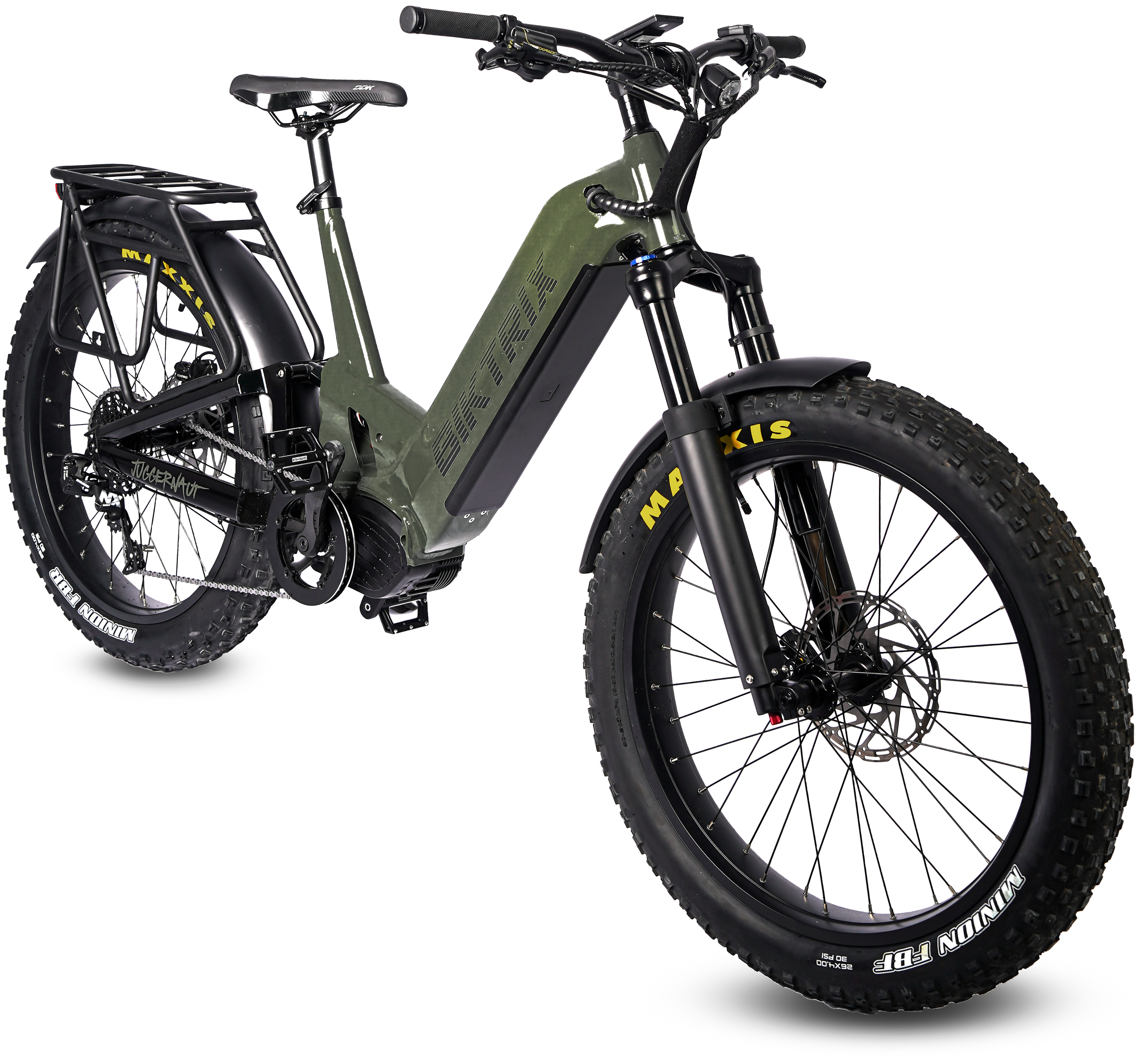

Juggernaut FS Step Thru Fat

Sale price $3,999.00 Regular price$4,999.00
Save $1,000 Pre-Sale New

Early Bird Special - Free Tektro E725 Quad-Piston Brake Upgrade and Rack + Fender Set Included!

High Performance, Full Suspension eBike with a Robust Low-Step Frame

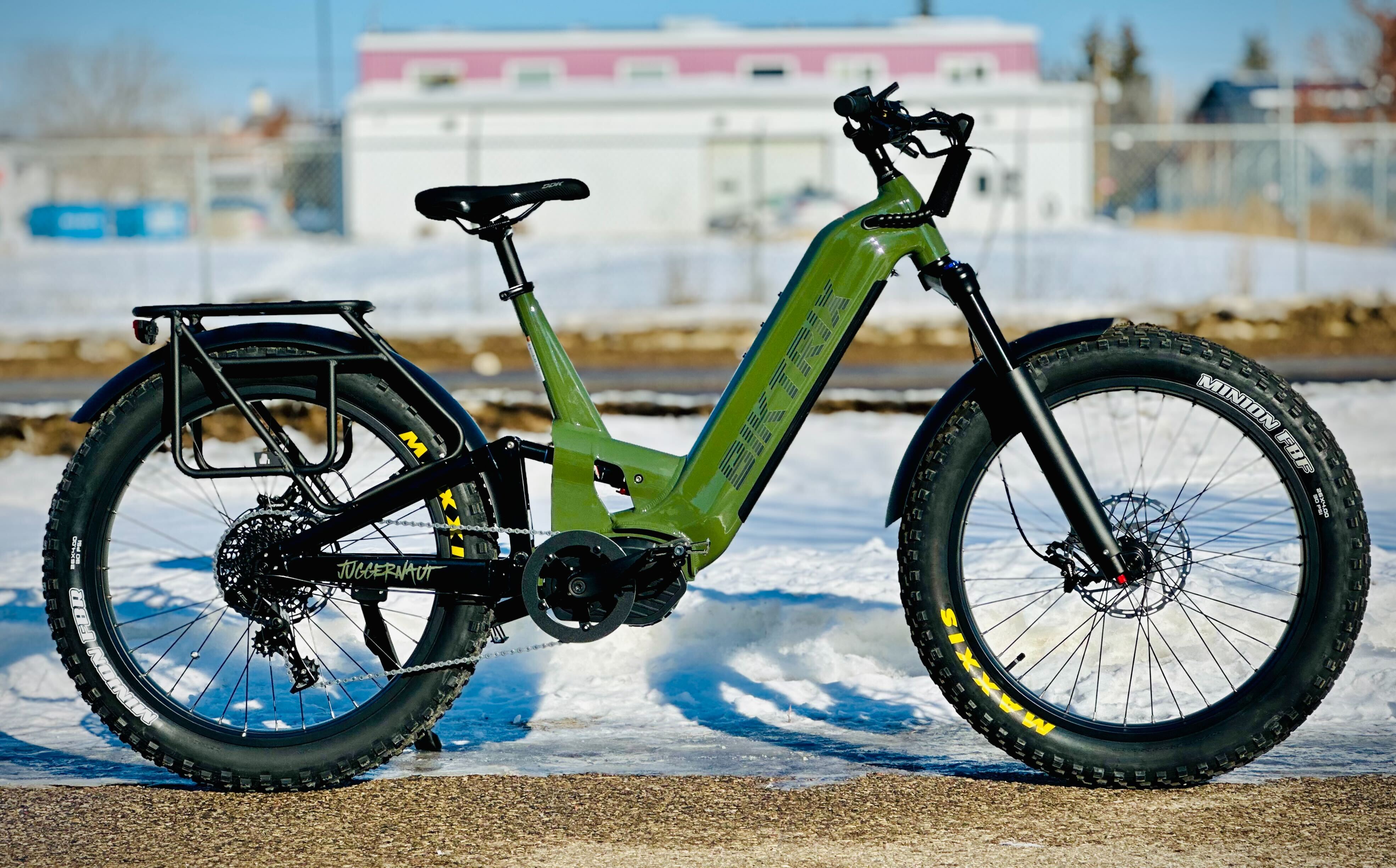

Green
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that extends the range of the stock battery.
Upgrades
Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**No Front Fender is available for the Wren Suspension Fork
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Dropper Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a dropper seatpost to your eBike will increase the minimum seatpost height by approximately 75mm/3"
Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Warranty
BiktrixCare+


Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Shipping: Leaves within Late March
Sale price $3,999.00 Regular price$4,999.00
Lifetime Support
14 Days Return
Custom Built
customer-service-img
Want to see the bike live?

Book a live showroom demonstration and see the bike live today!

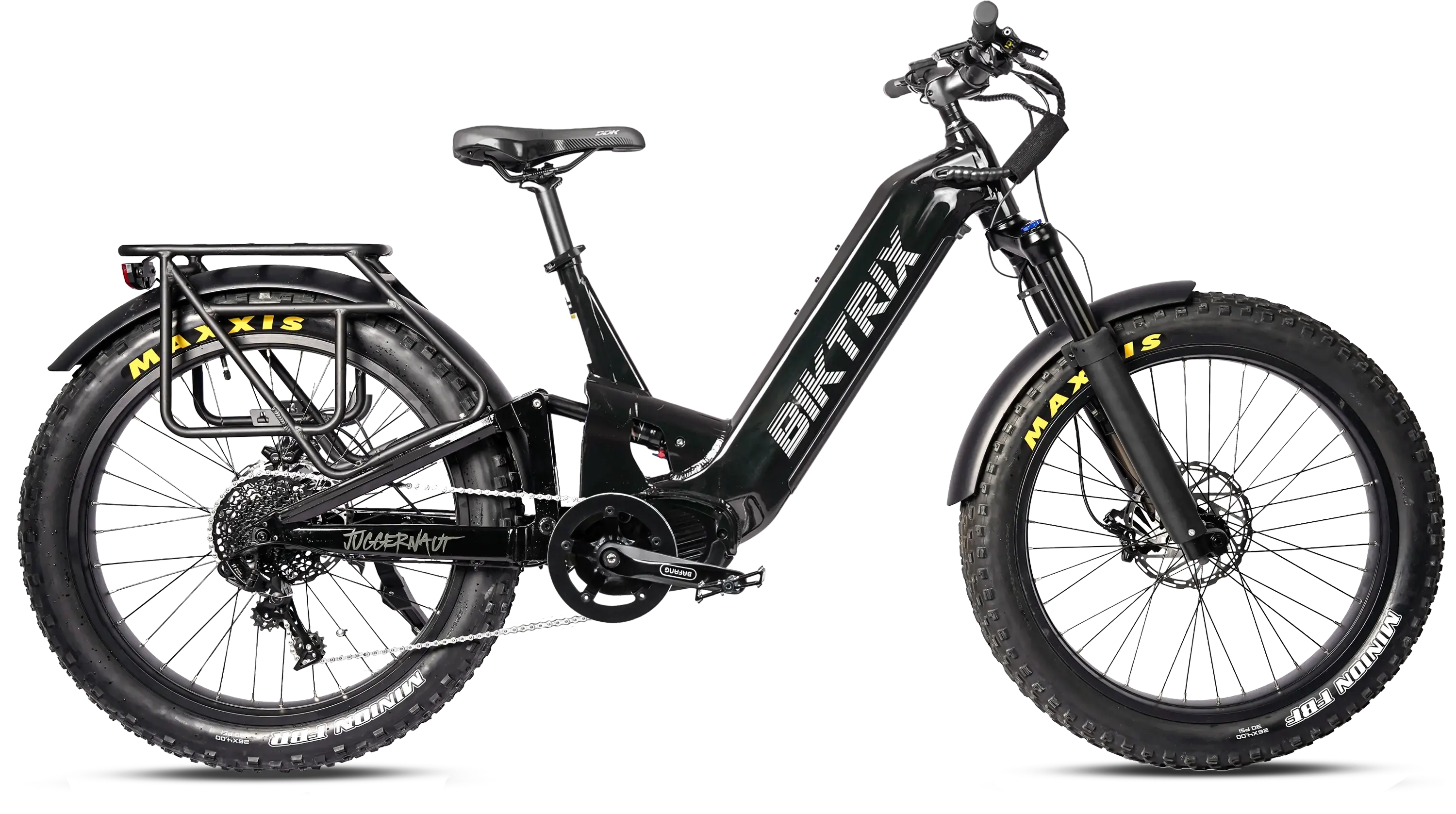

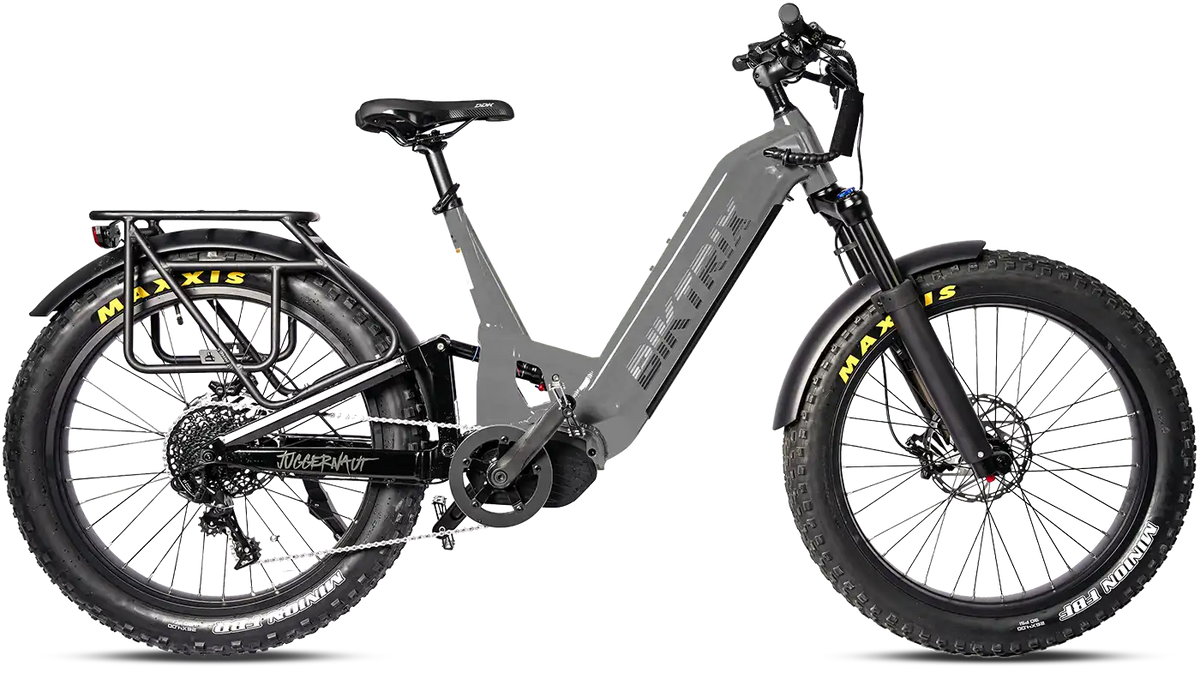

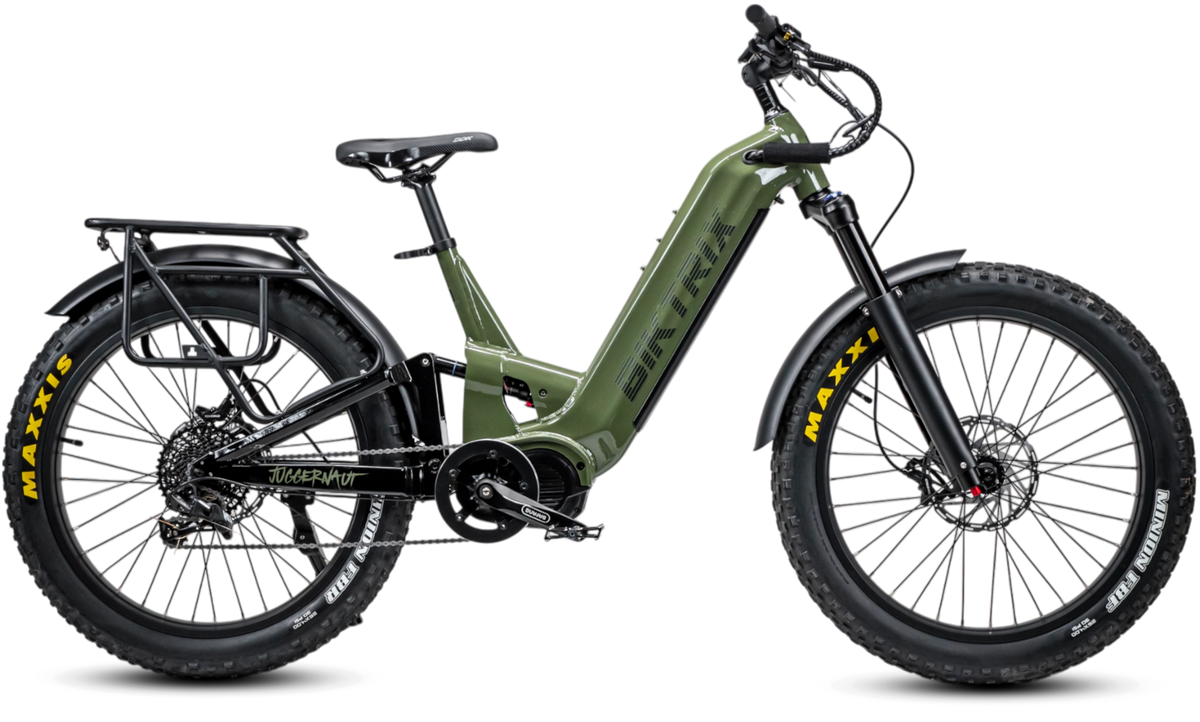

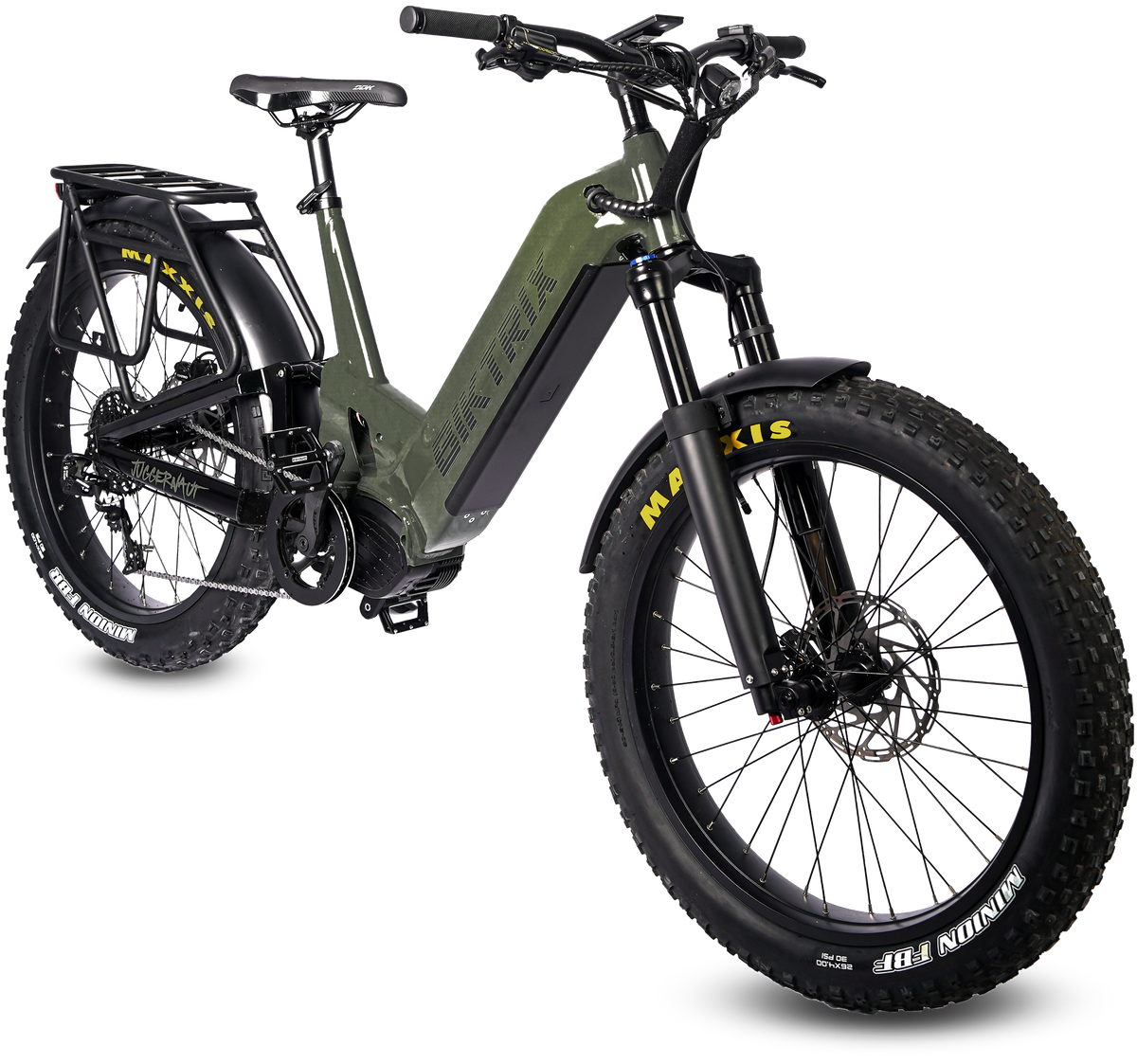

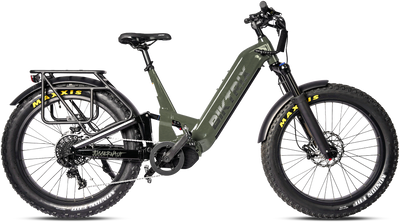

Juggernaut FS Step Thru Fat

Step-Thru The Extraordinary.

This isn't just a bike; it's your bold companion for city commutes and all-terrain adventures.

Biktrix VS. Everyone

In the electrifying Battle of the Bikes, the Juggernaut FS Step-Through stands tall, ready to go head-to-head against the rest. Brace yourselves; this is no ordinary comparison – it's a clash of innovation and power.

Biktrix

Juggernaut FS

  • Bafang M620 1000W Mid-Drive, 160 Nm Torque
  • 48V 17Ah 816Wh
  • No Dual Battery Support
  • EUNORAU Dual-Piston, 180MM Rotors
  • Only MTB (27.5x2.8)
  • SRAM NX 11 Speed
  • Ships from Third-Party US Warehouse (No Custom Orders)
  • Direct Support From China (via Email)
Starting At
$3,999.00 USD

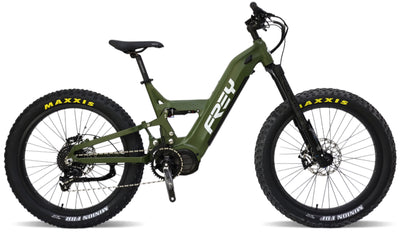

Frey

CC Fat

  • Bafang M620 1000W Mid-Drive, 160 Nm Torque
  • 48V 21Ah 1008Wh
  • No Dual Battery Support
  • Magura MT5e Quad-Piston, 203mm Rotors
  • FAT Only (26x4)
  • Shimano Alivio 9 Speed
Starting At
$4,980.00 USD

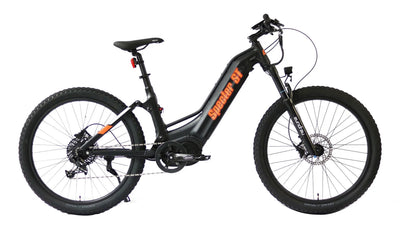

Specter ST

Specter ST

  • Bafang M620 1000W Mid-Drive, 160 Nm Torque
  • 48V 17Ah 816Wh
  • Dual Battery Support
  • EUNORAU Dual-Piston, 180MM Rotors
  • Only MTB (27.5x2.8)
  • SRAM NX 11 Speed
Starting At
$3,799.00 USD

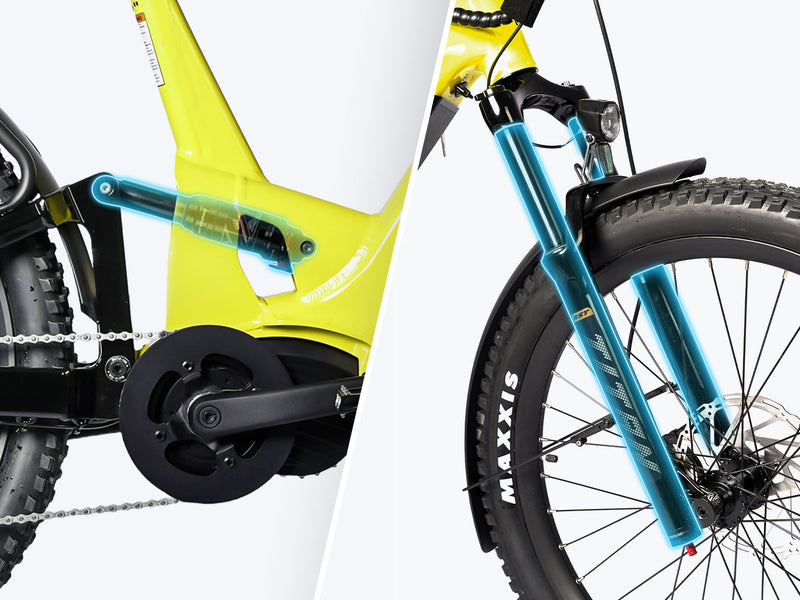

Full Suspension. Full Power.

The Juggernaut FS Step-Thru is not a compromise; its full-suspension design using the 53mm Travel DNM AO-38RC rear suspension along with the front suspension lets you glide over any surface with total control.

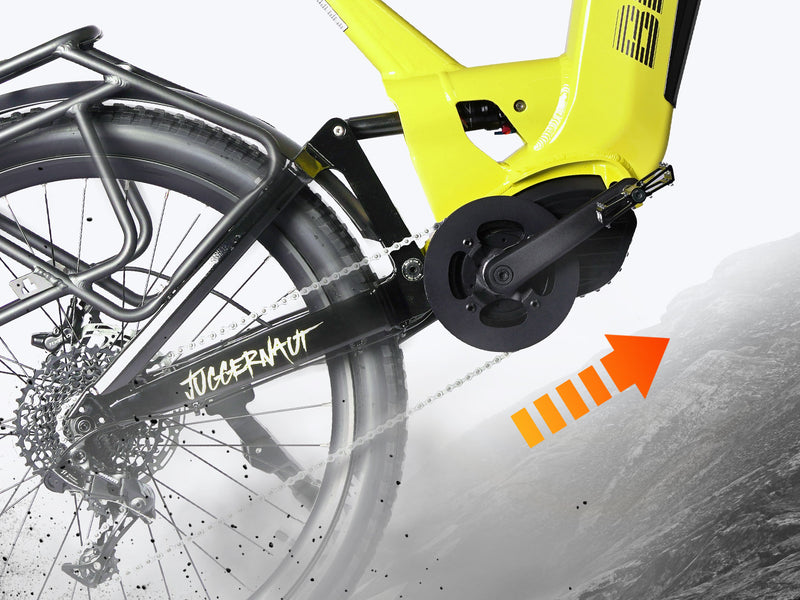

Dominance Unleashed

Expand every journey and conquer any elevation with the electrifying 1200W Truckrun M09 Mid-Drive motor delivering 220Nm peak torque with on-demand throttle or choose from 5 levels of torque + cadence sensing pedal assist

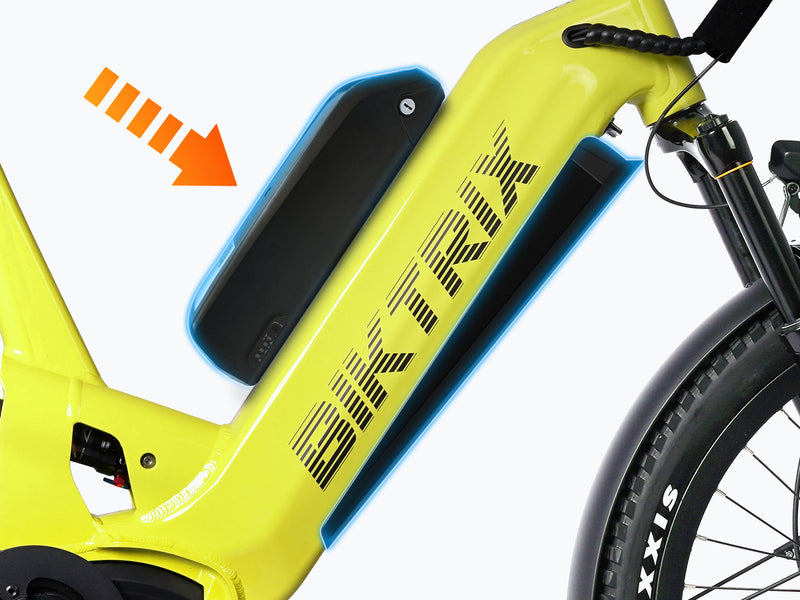

Battery Powerhouse

Elevate your off-road adventures with the Juggernaut FS Step-Thru, featuring a massive 52V 25Ah 1300Wh UL Certified default battery for up to 100 km on a single charge.

Extend your journey even further with the Range Extender option, pushing the limits to an impressive 160 km without breaking a sweat.

No Dual Battery
100km
Dual Battery
160km

Crush Any Obstacle.

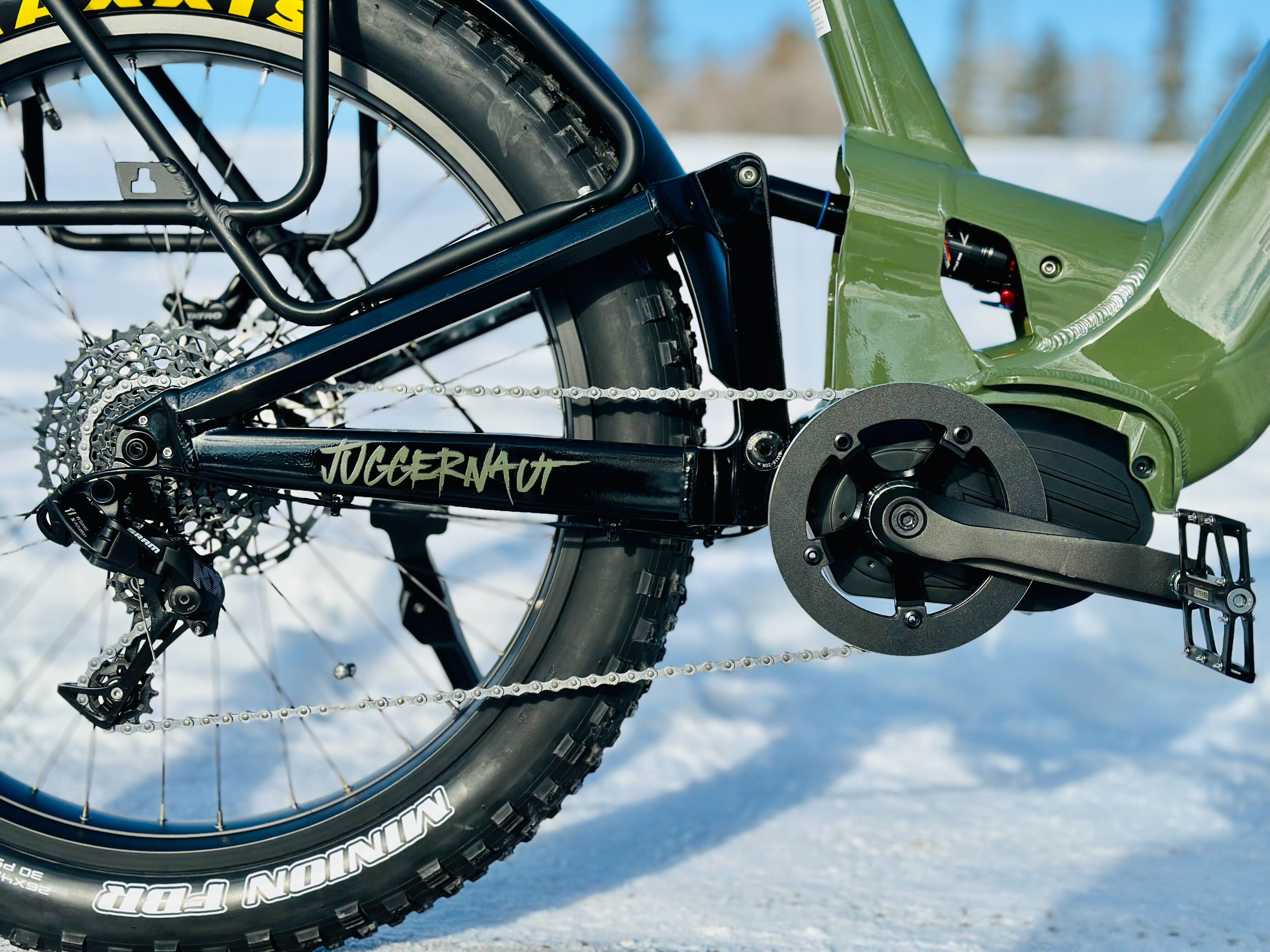

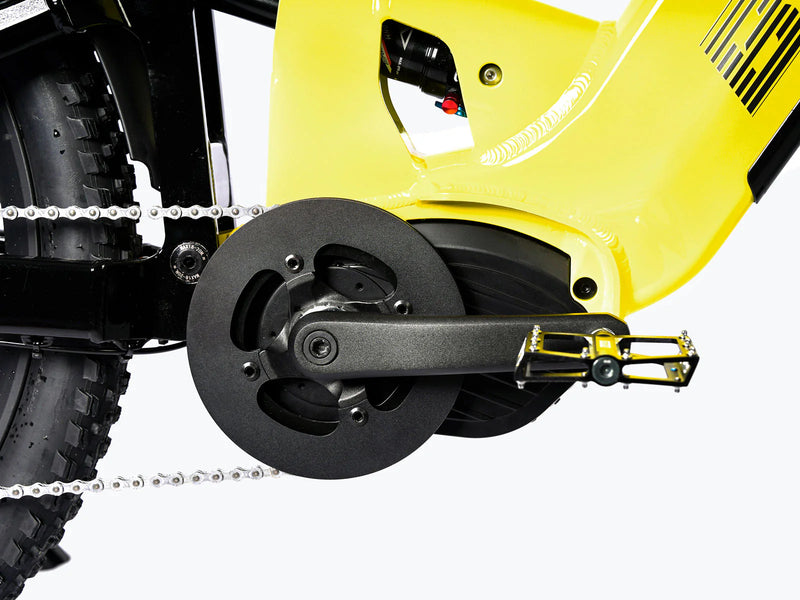

Truckrun M09 Mid-Drive Motor

The Truckrun M09 Mid-Drive Motor provides 1200W of continuous power and 220Nm of peak torque. The high-sensitivity torque sensor provides very predictable assistance when you need it.

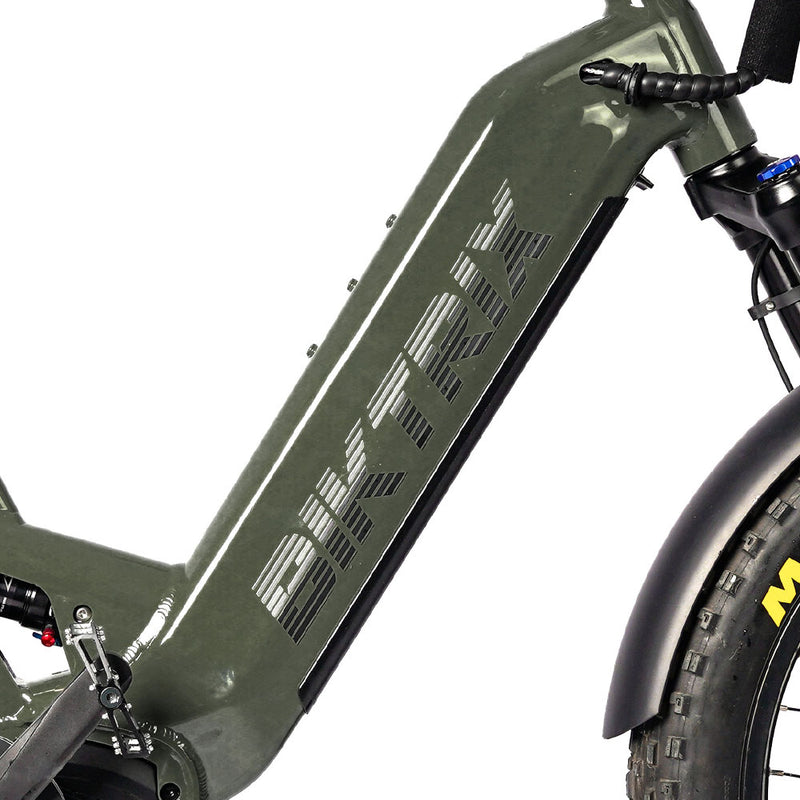

52V 25Ah Battery

The included 52V25Ah removable downtube battery provides up to 100km of assistance. Need to go further? Add a secondary Range Extender Battery to tackle even longer distances!

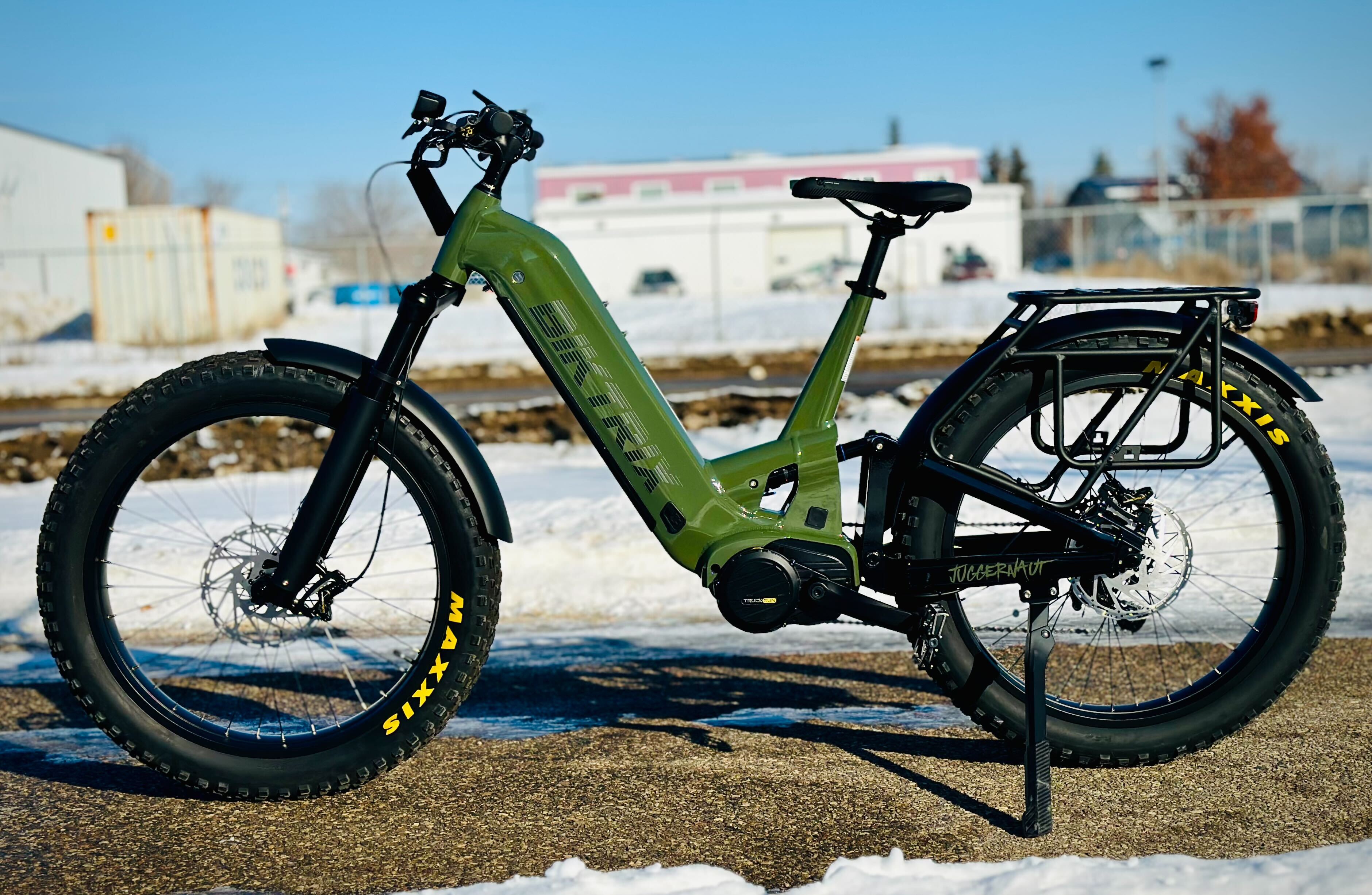

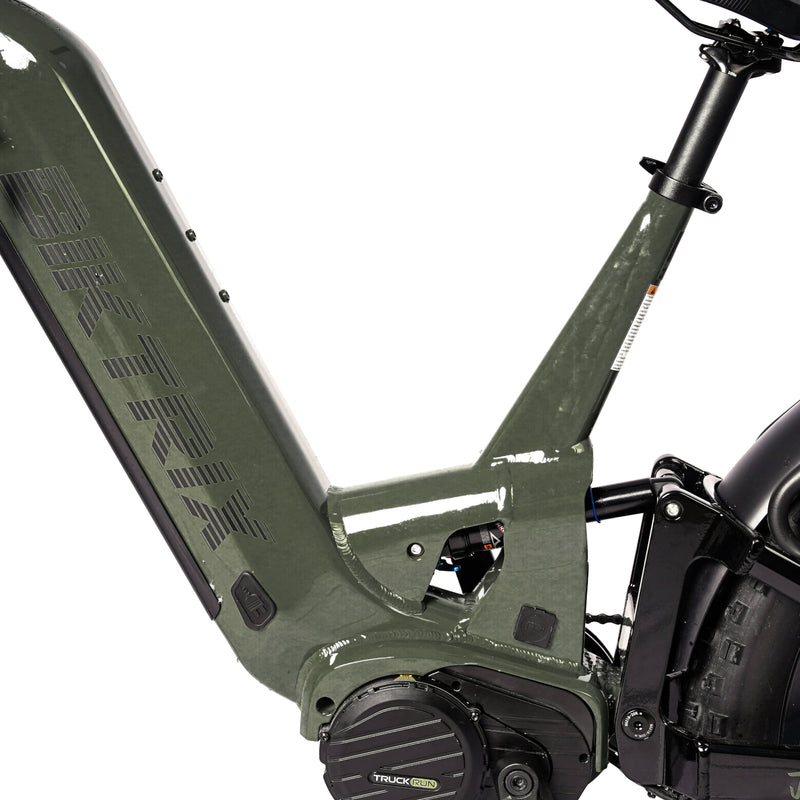

Step-Thru Full Suspension Frame

This unique frame design gives you the accessibility of a Step-Thru frame with the added performance and comfort of full suspension.

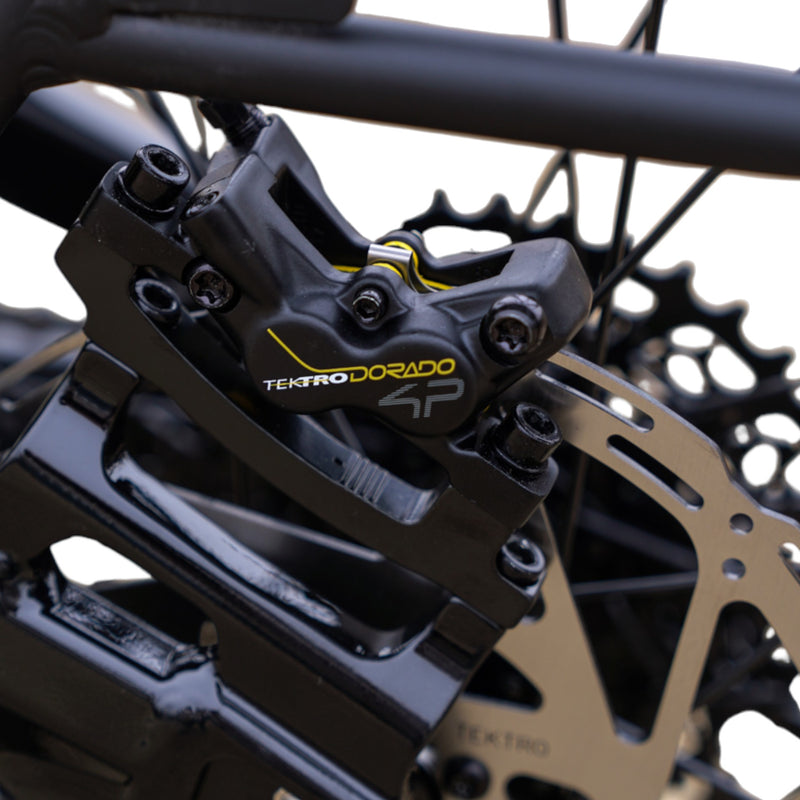

Quad-Piston Hydraulic Brakes

When it’s so easy to go fast, you need strong stopping power. These quad-piston brakes combined with 203mm rotors will quickly and reliably bring you to a halt.

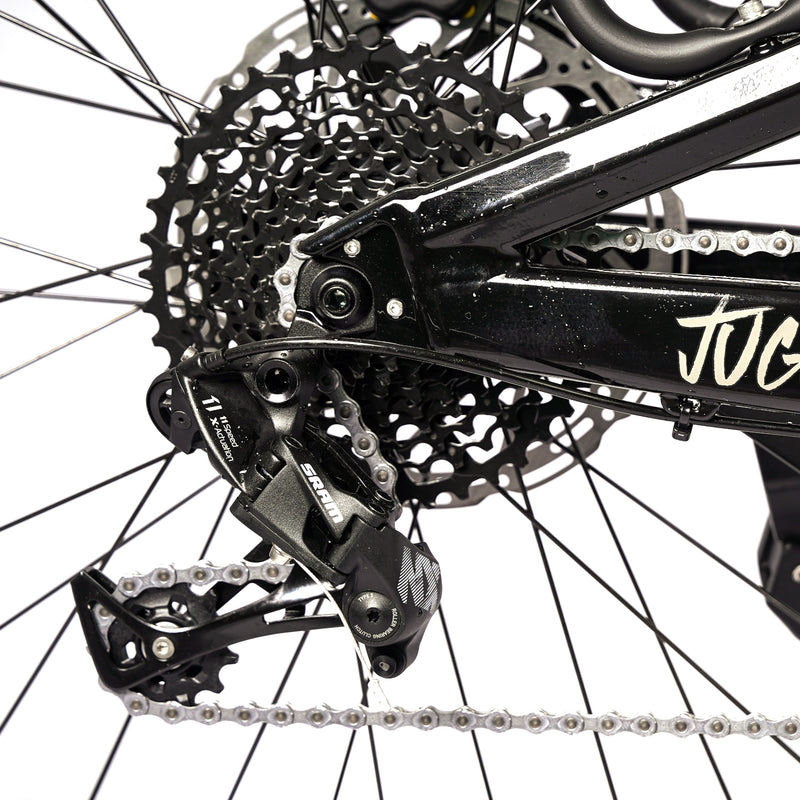

11 Speed SRAM NX Drivetrain

From climbing hills to holding maximum speed on the flats, the SRAM NX 11-Speed drivetrain has you covered.

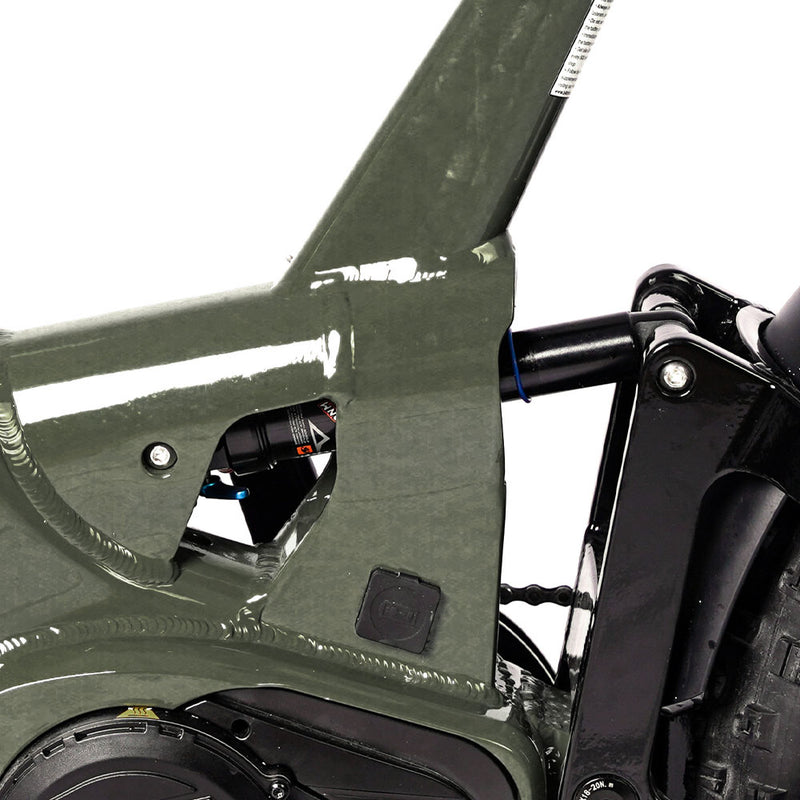

Rear Suspension

The DNM Air Shock provides 53mm Travel with adjustable lockout and rebound giving you a comfortable ride regardless of your conditions.

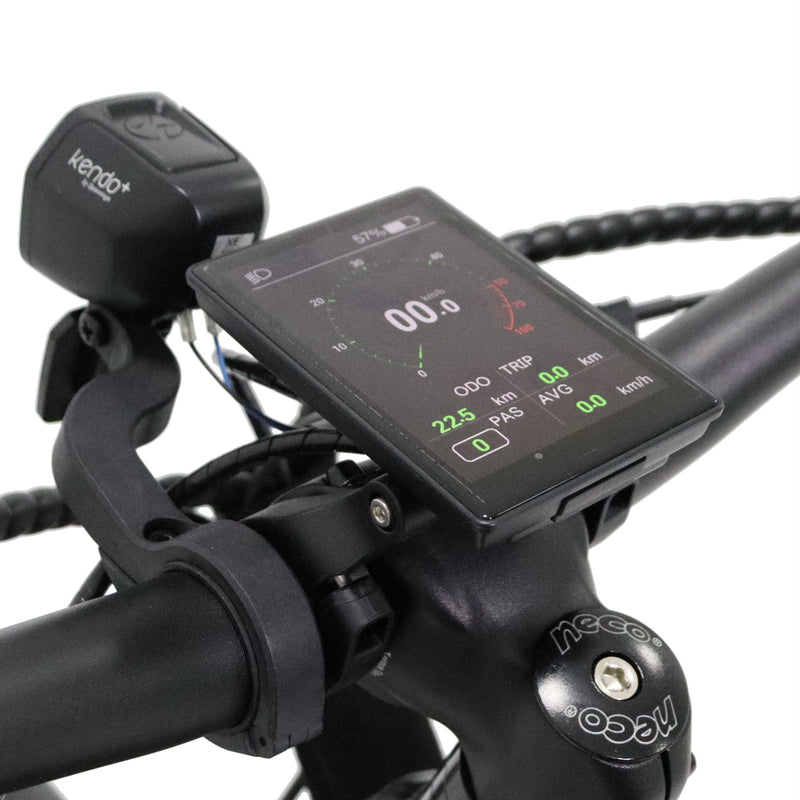

LCD Display

The LCD Display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more!

NEW

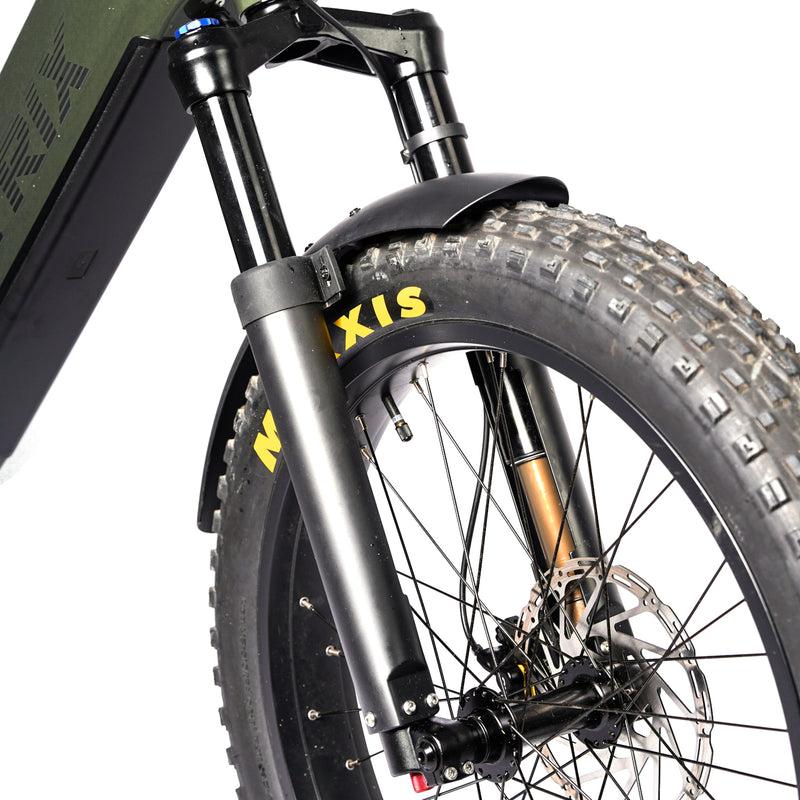

Suspension Fork

The Biktrix Inverted Suspension Fork features 100mm of travel along with adjustable lockout and preload.

NEW

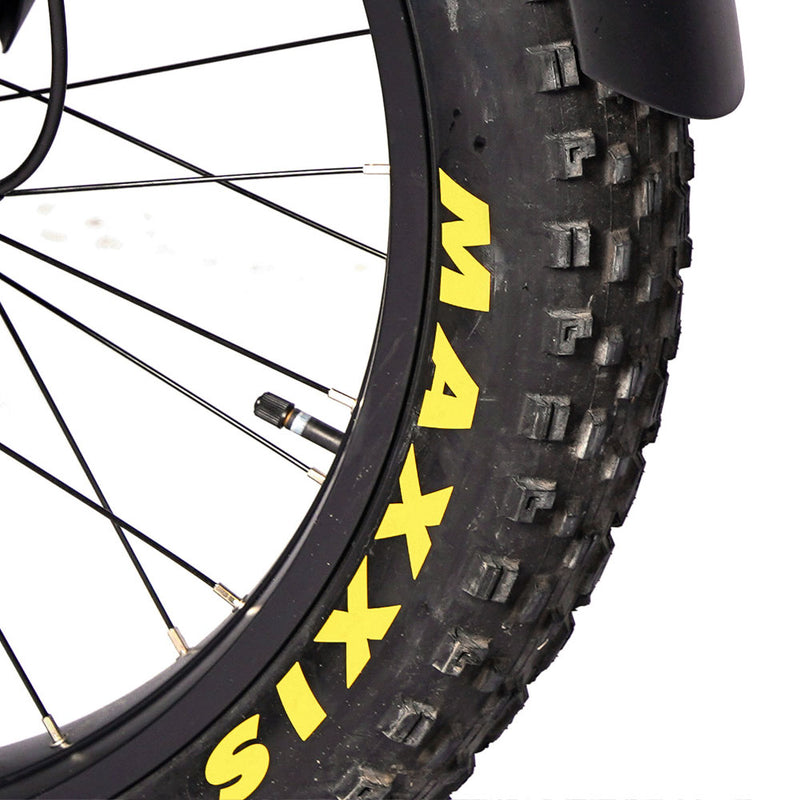

Fat Tires

The Maxxis Minion tires offer unparalleled traction, durability and control - a perfect choice for superior performance on diverse terrain.

Technical Specifications

frame

6061 aluminum - 120mm frame travel

front hub

150mm 36h ta

seat post

31.6mm aluminum

fork

Biktrix inverted w/100mm travel, lockout and preload adjustment

front axle

15x150mm ta

seat post clamp

38mm qr

headset

Threadless 1-1/2 1-1/8 tapered

rear hub

197mm 36h ta

motor

1200w truckrun m09 mid-drive

shifter rear

Sram nx 11 speed trigger

rear axle

12mm ta

battery sizes

Total capacity of 52v 52v42ah 2184wh:
52v 25ah 1300wh (ul certified internal battery) +
52v 17ah 884wh (external range extender battery)

rear derailleur

Sram nx 11 speed

rims

Solid black, 36h, 80mm wide

display

Cc03 lcd display

cassette

Sram 11-42t 11 speed

tire sizes

26x4" maxxis minion

lights

Integrated headlight

chain

Kmc e11s - 126 links

handlebar

780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size

assist type

Torque + cadence

crank set

40t chainring w/170mm arms

stem

Promax 40mm w/31.8mm clamp

assist levels

0-5 (0-3, 0-9)

bottom bracket

Square tapered

grips

Velo bolt-on mtb grips

throttle

Thumb throttle

brakes

Tektro e725 quad-piston brakes w/203mm rotors

saddle

Gel padded mtb saddle

other

Rear rack, fenders

brake levers

Tektro adjustable w/ integrated brake cutoffs

rear suspension

Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment

Size & Fittings

1 Effective Top Tube Length 650mm 25.6in
2 Seat Tube Length (Classic Bike Size) 480mm 18.9in
3 Reach 510mm 20.1in
4 Stack 630mm 24.8in
5 Chainstay Length 490mm 19.3in
6 Standover Height 550mm 21.7in
7 Head Angle 64° -
8 Seat Angle 71° -
9 Head Tube Length 145 mm 5.7 in
10 Fork Length 560mm 22in
11 Front Center 880mm 34.6in
12 BB (Bottom Bracket) Drop 35mm 1.4in
13 Fork Offset 35mm 1.4in
14 Wheelbase 1365mm 53.7in
15 Total Length 2070mm 81.5in
16 Max Seat Height 1030mm 40.6in
17 Min Seat Height 890mm 35in
18 Handlebar Height 1090mm 42.9in
19 Weight (Without Battery) 37.3kg 82.2lb
1 Effective Top Tube Length 670mm 26.4in
2 Seat Tube Length (Classic Bike Size) 435mm 17.1in
3 Reach 510mm 20.1in
4 Stack 630mm 24.8in
5 Chainstay Length 490mm 19.3in
6 Standover Height 535mm 21.1in
7 Head Angle 64° -
8 Seat Angle 71° -
9 Head Tube Length 145 mm 5.7 in
10 Fork Length 560mm 22in
11 Front Center 880mm 34.6in
12 BB (Bottom Bracket) Drop 35mm 1.4in
13 Fork Offset 35mm 1.4in
14 Wheelbase 1365mm 53.7in
15 Total Length 2070mm 81.5in
16 Max Seat Height 930mm 36.6in
17 Min Seat Height 840mm 33.1in
18 Handlebar Height 1050mm 41.3in
19 Weight (Without Battery) 37.3kg 82.2lb
