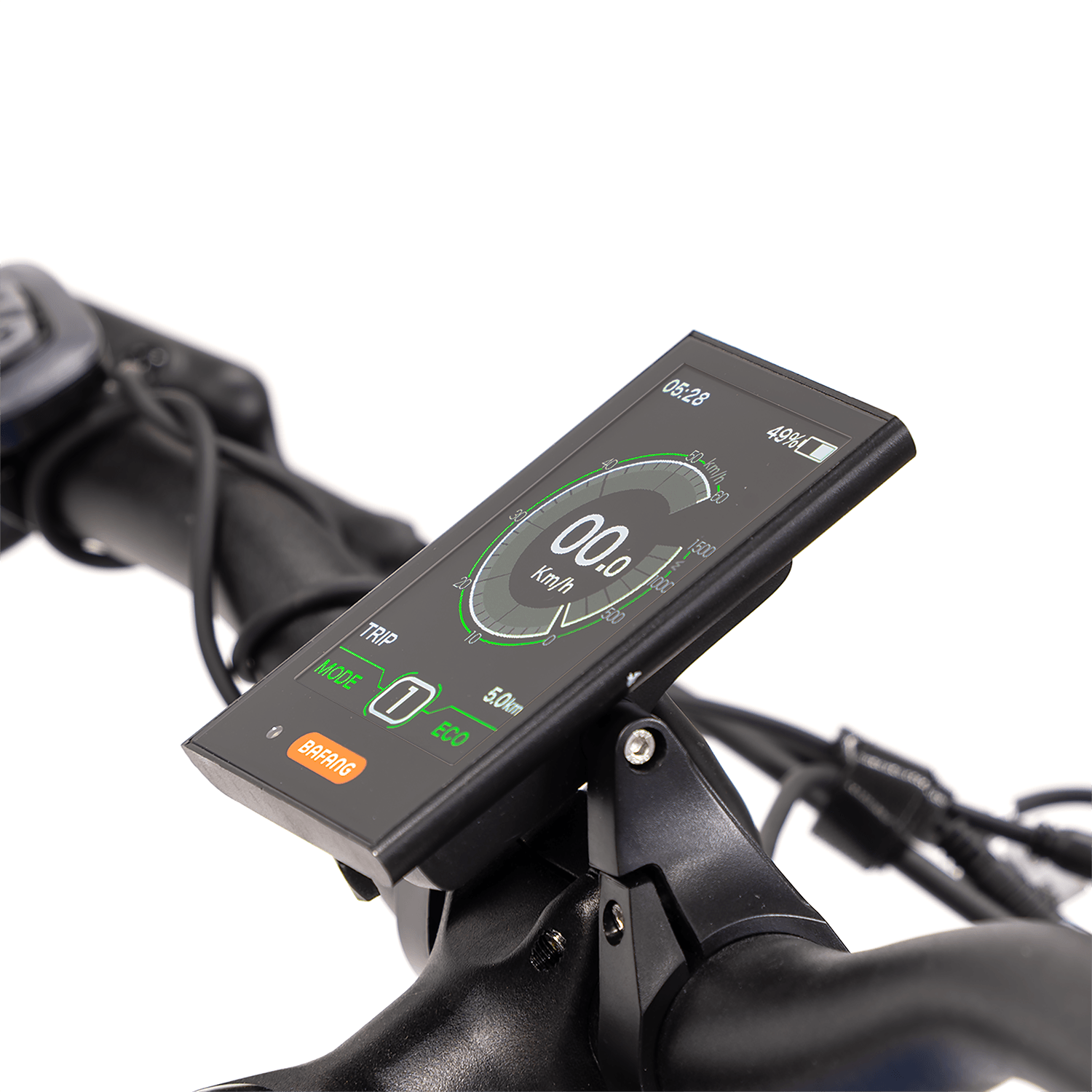

The Bafang DPC-18 is a full-color LCD display for eBikes equipped with BBS02, BBSHD, and M620 Ultra motors. Considered to be one of the best displays in the eBike industry, the DPC-18’s visually bright and crystal-clear screen is easy to read and understand and allows users to fine-tune a multitude of settings.
The DPC-18 shows information such as speed, battery life, pedal-assist level, trip distance, average speed, trip time, total mileage, and more.
Customize the DPC-18 to your preferences by choosing to display distance in miles or kilometres. Go even further and decide to display your battery power in either voltage or percentage remaining.

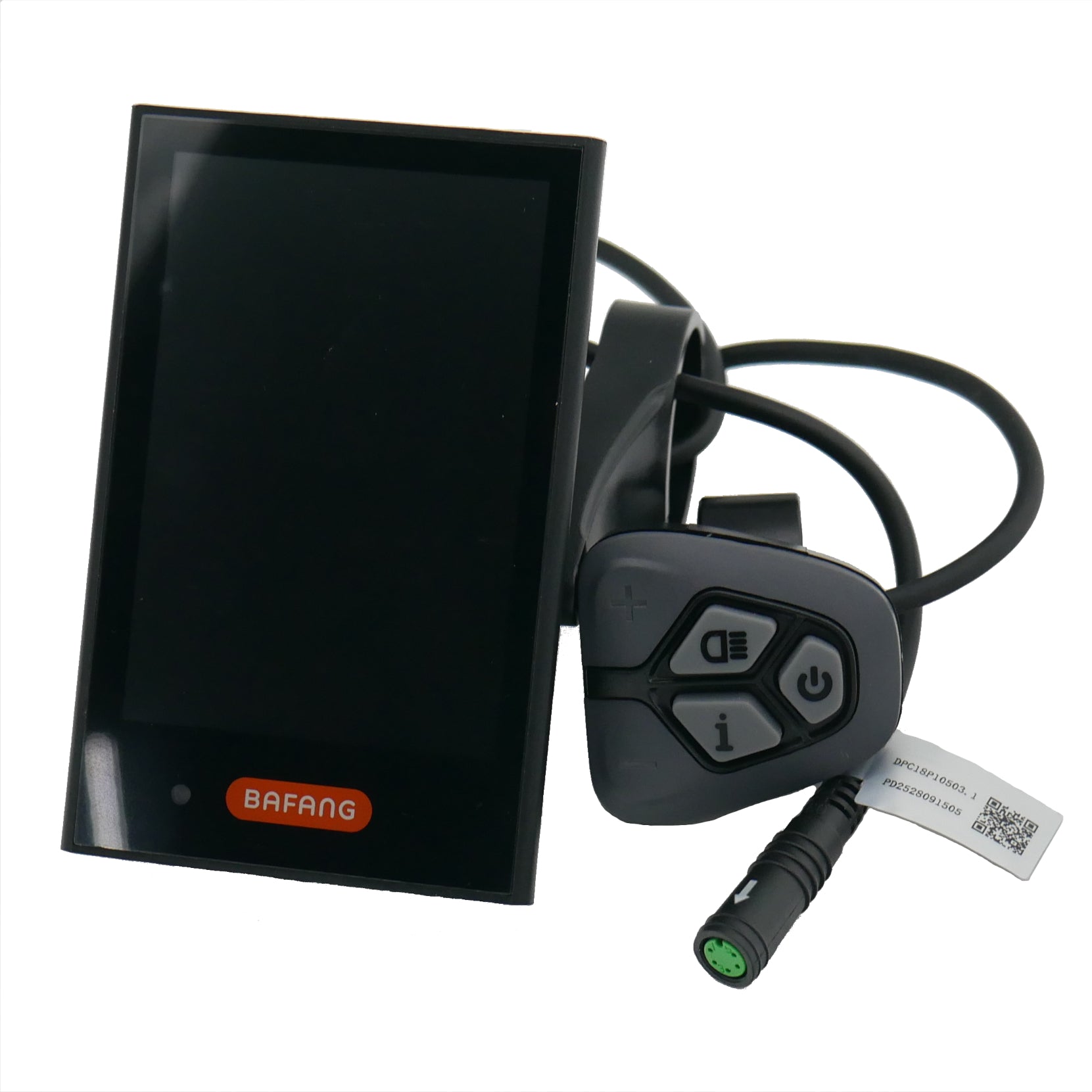

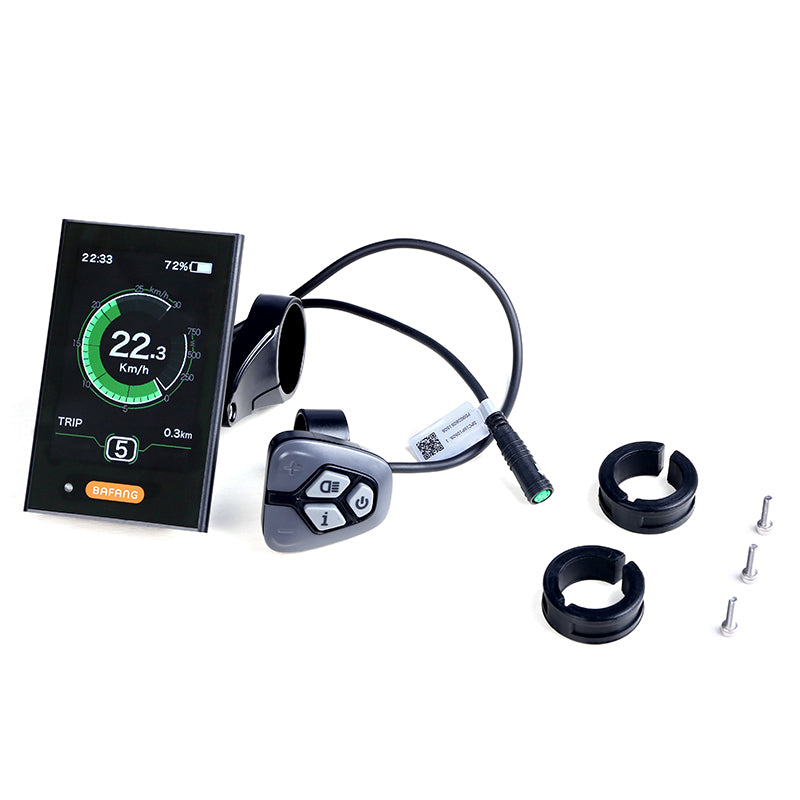

The control panel utilizes a simple and effective button system to turn the eBike on/off, change pedal-assist levels, activate the bike’s front and rear lights, cycle through information on the display, and engage walk mode.
An additional feature is the USB power plug found on the bottom of the display! Extend your phone’s charge or power simple USB devices through your eBike’s battery.
Note: This display IS NOT compatible with the Juggernaut XD / Juggernaut XD Duo.
Technical Specifications
PAS Levels
1-5 with Eco and Sport Mode
Battery Guage Display
Percent Remaining or Battery Voltage
Control Pad
5 Button Controls
Display Screen Details
3.2 Inch Full Colour LCD Display
USB Port
5V 0.5A Power Output
Connector
Green 5-Pin Female Connector
USB Output
5V 0.5A
Communications Protocol
UART Protocol
Compatibility
Bike Name
Compatible
Juggernaut Hub Duo
Juggernaut Classic / Juggernaut Classic Duo
Juggernaut HD / HD Duo
Juggernaut Ultra Duo 1/2/3
Juggernaut Ultra 1000
Juggernaut Ultra FS / Ultra FS Pro
Juggernaut XD / XD Duo
Juggernaut Ultra Beast 1
Juggernaut Ultra Beast 2
Monte Capro Ultra 1
Monte Capro Ultra 2
Monte Capro Lite
Stunner Step-Over / Step-Thru Series
Stunner X Series
Stunner LT (All Versions)
Swift Lite 1/2/3
Swift Step-Thru 1/2
Swift Step-Over 1
Swift Step-Over 2
Swift X
Kutty / Kutty X 1
Kutty X 2
Skycap 1/2
Challenger 1/2
Moto
Need A Hand?
Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
I was disappointed that this display did not work on the Juggernaut XD Ultra. However I did put the LCD display on my daughters Addmotor M-430 and it works great! I may purchase another one for our other EBike
P
Paul
Nice display
I like it, the screen size is perfect. I don't regret my buy. I would like to offer some cronstructive criticisimwe, we could have the choice to select the size of the modes!
