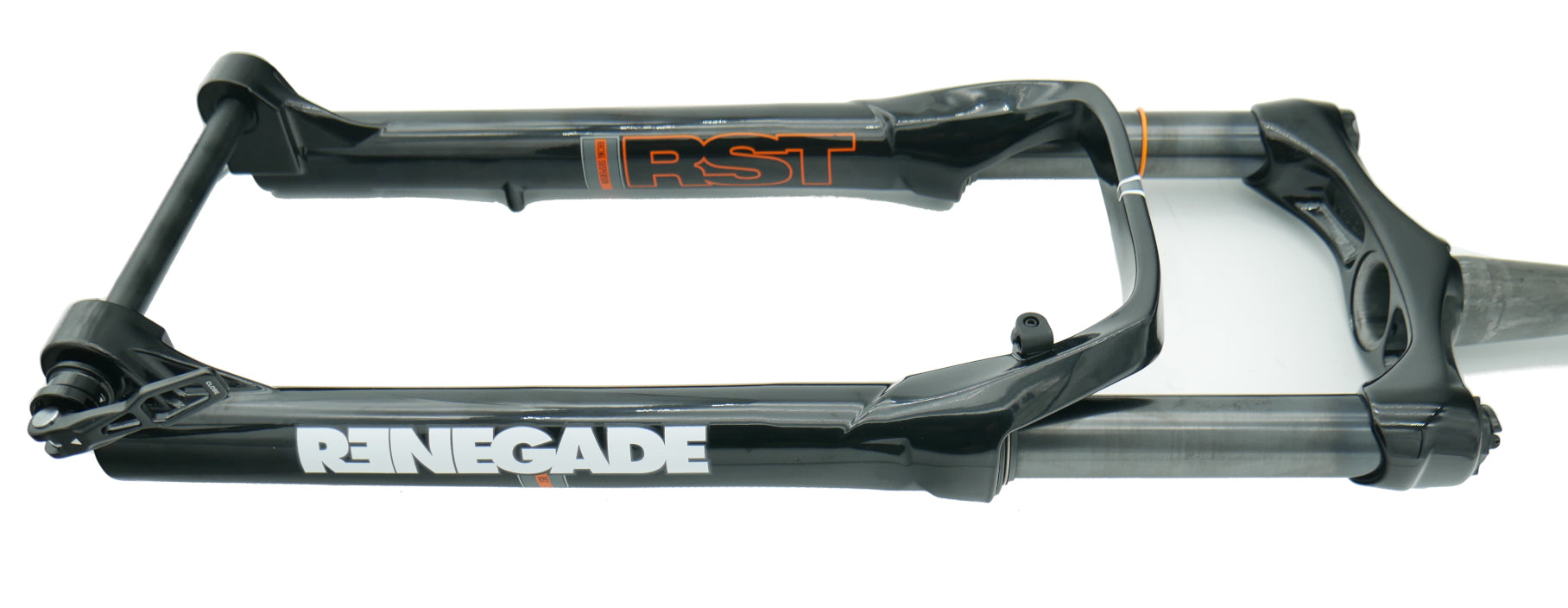

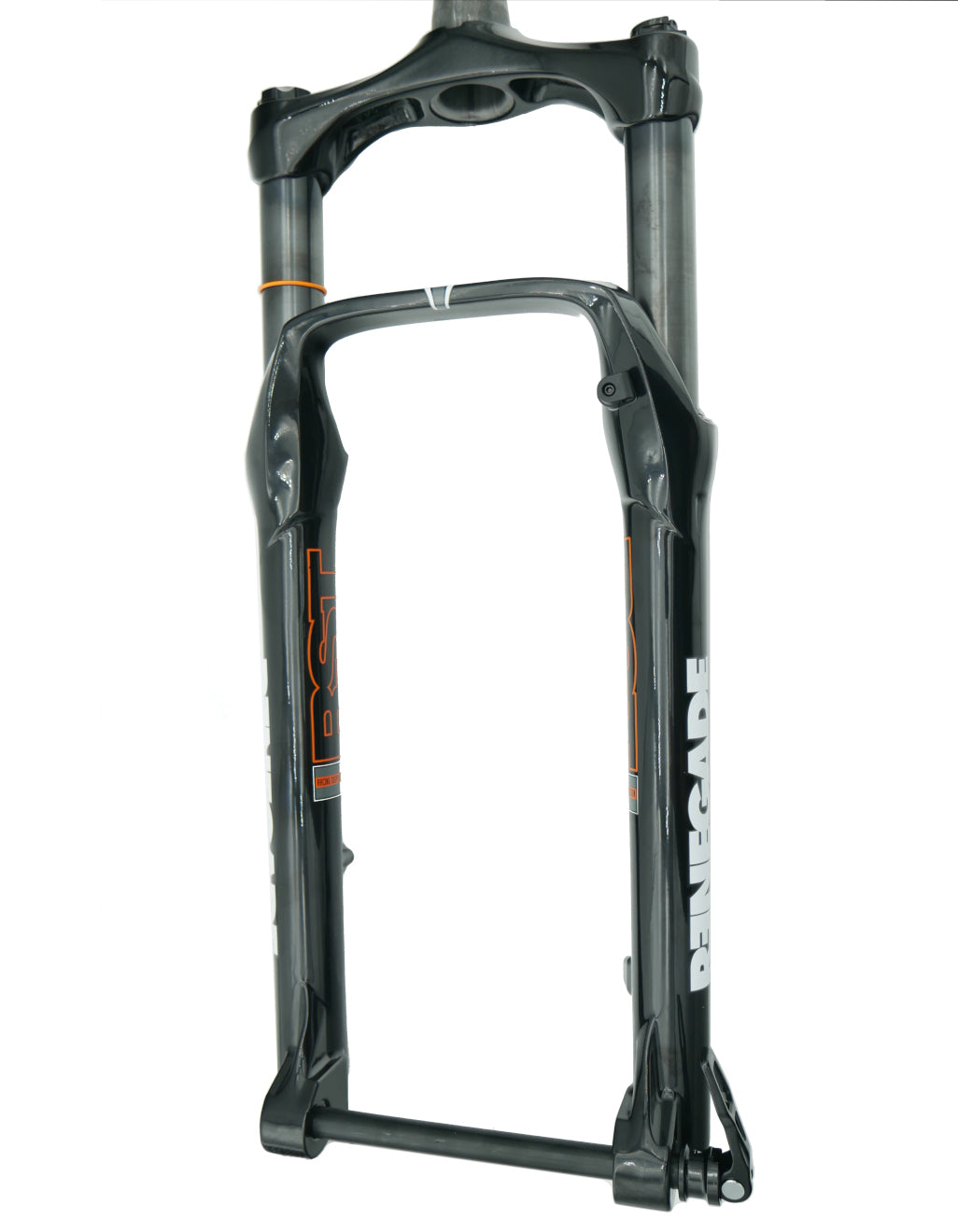

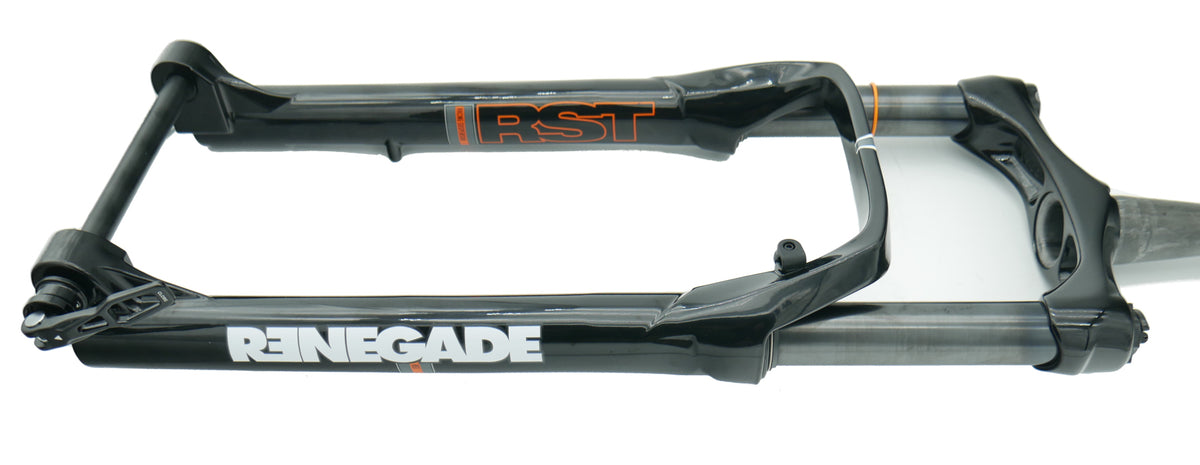

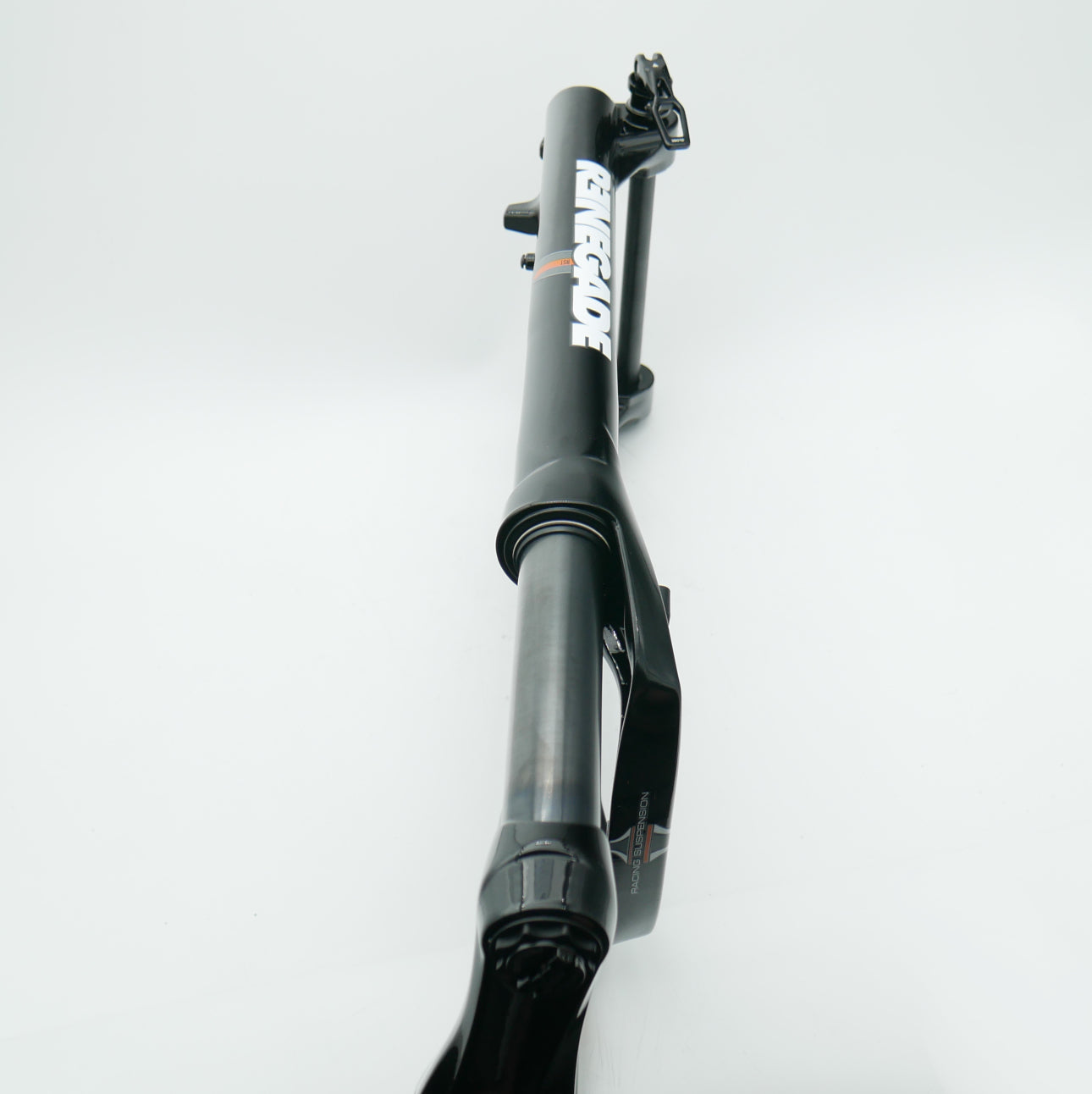

RST Renegade Fat bike Fork

Sale price $425.00 Regular price$499.00 Save $74
Sale price $425.00 Regular price$499.00
Shipping: Leaves within 6-7 business days


Designed to fit 24x4", 27.5x3", 26x4", and 26x4.8" tires, this fork provides a smooth and controlled ride on any terrain. With a coil spring and preload adjust, you can easily customize the suspension to match your riding style. The TNL damper features a lock-out function for maximum efficiency on smooth roads or climbs. The 120mm of travel and 32mm steel stanchions ensure excellent shock absorption and durability. The 15*150mm QR axle and post-mount disc brake (compatible with rotors up to 180-220mm) offer reliable stopping power. Made with a 1.5" to 1.125" aluminum tapered steerer and magnesium lower, this fork is both lightweight and sturdy.

Technical Specifications


100 mm

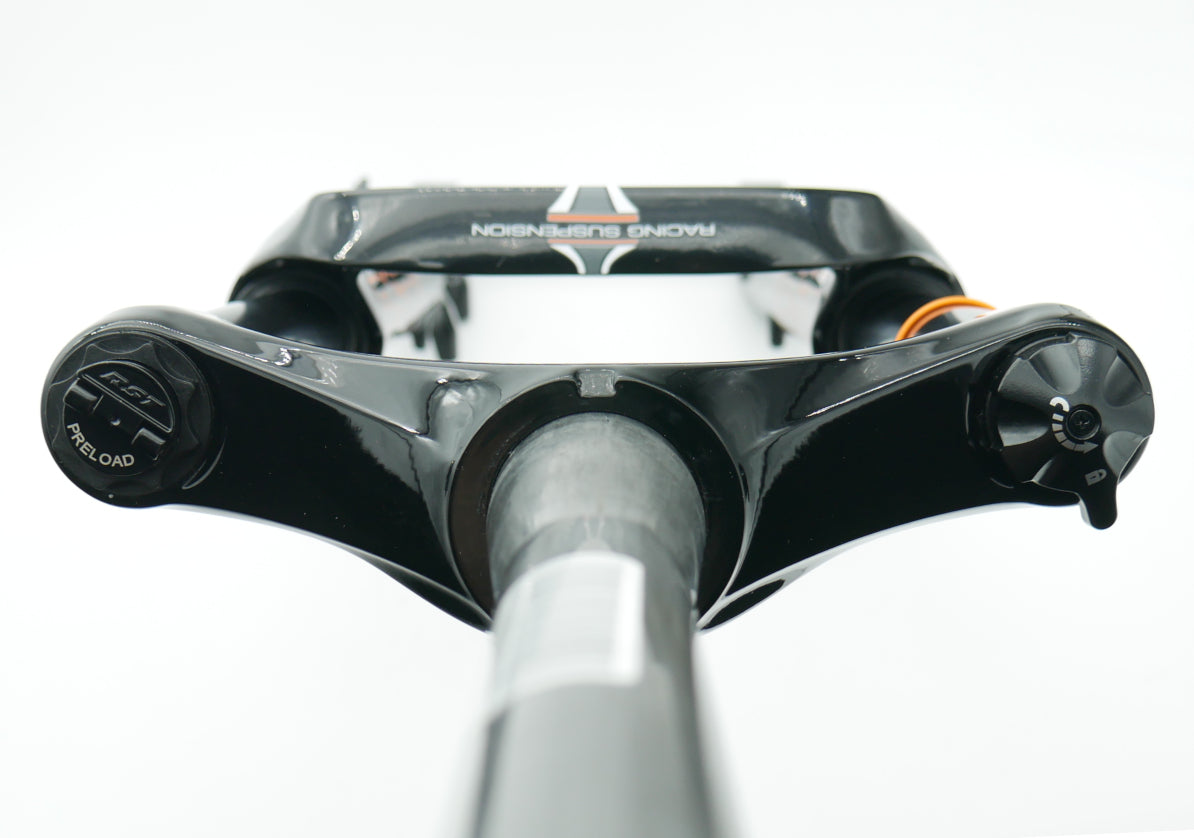

Lockout (Compression), Preload

Spring Type

Coil Spring

Steerer Tube Length and Diameter

255mm, 1-1/8" 1-1/2" Tapered

Hub Spacing

150mm TA

Supported Axle

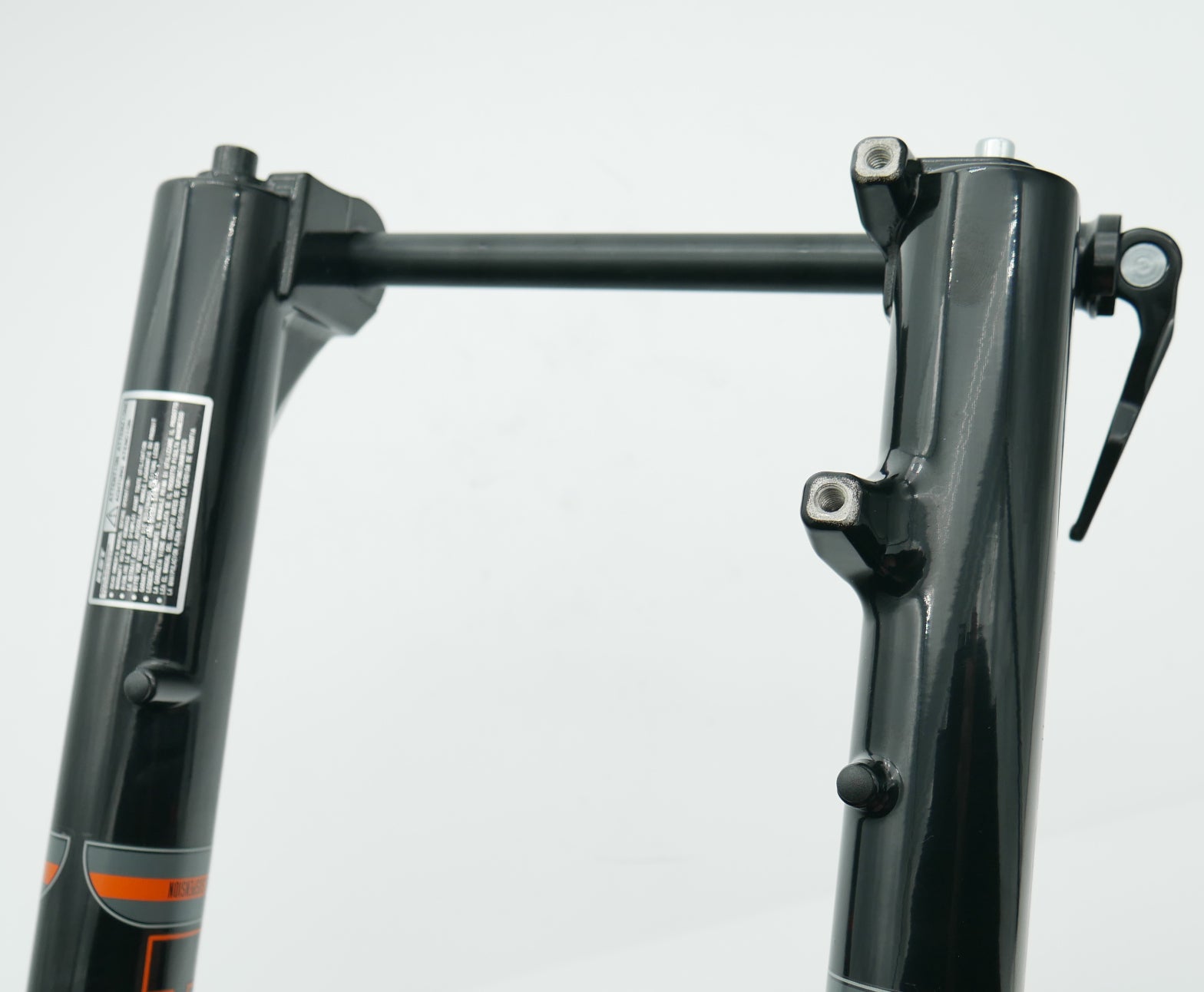

15x150mm QR Thru Axle - Included

Supported Wheel Sizes

24x4", 26x4", 27.5x3", 26x4.8"

Brake Rotor Size Range

160mm - 203mm


Bike Name Compatible
Juggernaut Ultra Duo 3/Pro
Juggernaut Ultra Duo 1/2
Juggernaut Classic / Hub Duo
Juggernaut Ultra FS Pro 1 w/ 27.5x3" Boost Hub Spacing
Juggernaut Ultra FS Pro 1 w/26x4" Fat Tire hub Spacing
Juggernaut Ultra FS Pro 2/3
Monte Capro Ultra 1/2 w/ 26x4.8" Fat Tire Hub Spacing
Juggernaut Ultra Eagle 2
Juggernaut Ultra 1000 Pro
Juggernaut Ultra FS
Juggernaut Ultra Beast 1/2

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

Customer Reviews

Based on 7 reviews
Bradley Ziebart


Bryan Johnston
Excellent fork!

Was an easy install on my Aventure bike. works and looks great!

Daniel Fidanza
Great product - fast service.

Found this fork, based on research for an upgrade to AWD ebike. Some manufacturers use this fork with front hub motors. It is solid, well made, and the dropouts a very thick and supportive. Read about how several newbies where breaking fork and flying over the handlebars due to front forks not being capable of handling the torque from the front motor. Others on YouTube used this fork and said it was suitable. After installing the fork and front hub motor, I agree that it is definitely suitable and string enough. Super pleased with the purchase and with Biktrix for the fast shipping.

Kimbull McAndrew
Good quality Forks

I receive my Juggernaut mid-January but was unfortunate to have it run over early in February and had to replace the fork and several other parts. In doing the repair, I came to realize the high quality of the parts that make up this great bike. Biktrix was very helpful in shipping out replacement parts at reasonably pricing. The parts arrived quickly and the bike is good as new ( Just in time for the minus 30 degree weather here in Alberta... Looks like I won't be riding for a week or so!)
Thank you Biktrix

John Murphy
RST Suspension

This is a replacement as I finally wore out my old one after thousands of miles of rough mountain riding. It was installed on my 2018 Ultra FS. It does everything I need it to do and I’m happy Biktrix helped me out as the quick release forks are hard to find as the industry standard is now the through axel type.

Borislav Todorov
Excellent products

Purchased few forks and some accessories from Biketrix and I am very happy with the product, pricing and customer service. Fast order processing and delivery. Thanks

Derrick Reese
